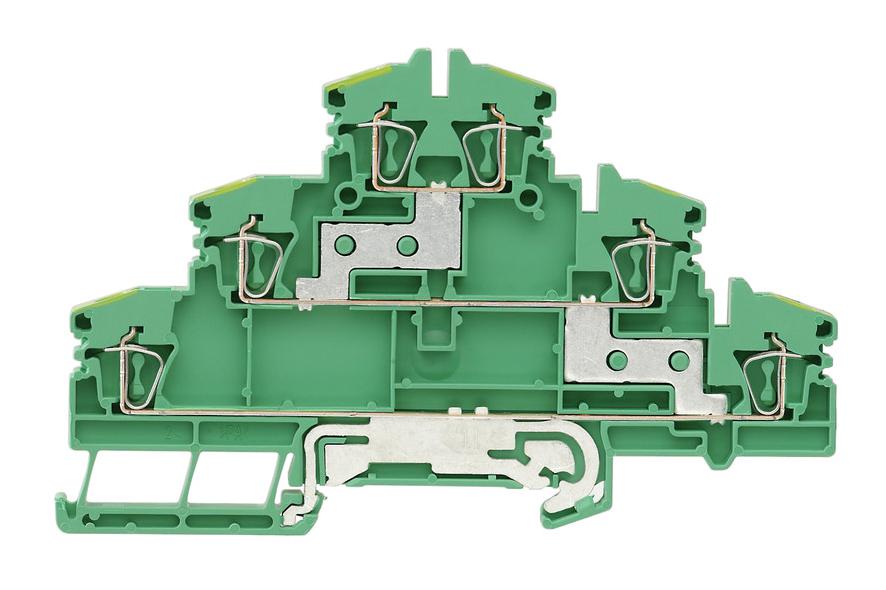

WEIDMULLER 1131740000 ZDLD 2.5-2N PE Terminal Block
The WEIDMULLER ZDLD 2.5-2N PE terminal block utilizes tension-clamp technology for a flexible and reliable connection suitable for various conductor types. It incorporates a PE connection for grounding and safety applications. This terminal block is ideal for applications requiring secure and efficient conductor termination in electrical panels and industrial equipment. Its robust Wemid material construction ensures durability and long-term performance.
WEIDMULLER 1131740000 ZDLD 2.5-2N PE Terminal Block Specifications:
- Type: ZDLD 2.5-2N PE
- Order No.: 1131740000
- Version: Tension-clamp connection, With PE connection, One end without connector
- GTIN(EAN): 4032248922703
- Qty.: 50 pc(s).
- Width: 5.1 mm
- Height: 110.5 mm
- Depth: 69 mm
- Depth including DIN rail: 70 mm
- Width(inches): 0.201 inch
- Height(inches): 4.35 inch
- Depth(inches): 2.717 inch
- Net weight: 26.8 g
- Storage temperature,max.: 55 °C
- Storage temperature: -25 °C...55 °C
- Continuous operating temp., max.: 120 °C
- Storage temperature,min.: -25 °C
- Continuous operatingtemp.,min.: -50 °C
- Material: Wemid
- UL 94 flammability rating: V-0
- Colour: dark beige
- Number of clamping pointsper level: 2
- PE connection: Yes
- PEN function: No
- Number of levels: 3
- Levels cross-connected internally: Yes
- Rail: TS 35
- Type of mounting: Snap-on
- Certificate No.(CSA): 200039-1228250
- Wire cross section min. (CSA): 26 AWG
- Wire cross section max.(CSA): 12 AWG
- Clampingrange,max.: 2.5 mm²
- Number of connections: 6
- Type of connection: Tension-clamp connection
- Clampingrange,min.: 0.08 mm²
- Strippinglength: 10 mm
- Rated short-time current: 300 A (2.5 mm²)
- Rated cross-section: 2.5 mm²
- Rated voltage to adjoining terminal: 500 V
- Power loss in accordance with IEC 60947-7-x: 0.77 W
- Rated voltage: 500
- Volume resistance according to IEC 60947-7-x: 1.33 mΩ
- Certificate No.(UR): E60693
- Conductor size Factorywiringmin.(UR): 26 AWG
- Conductor size Field wiringmin.(UR): 26 AWG
- Conductor size Factorywiringmax.(UR): 12 AWG
- Conductor size Field wiringmax.(UR): 12 AWG
- Wire cross section max.(UR): 12 AWG
- ETIM 6.0: EC000901
- eClass 9.0: 27-14-11-41
- eClass 10.0: 27-14-11-41
- ETIM 7.0: EC000901
- eClass 9.1: 27-14-11-41
- Approval/Certificate/Document of Conformity: EAC certificate
- Declaration of Conformity Terminals: DE_PT1102_20160418_1128_ISSUE01.pdf
- Brochure/Catalogue: CAT 1 TERM 16/17 EN
- EngineeringData: STEP
- User Documentation: StorageConditionsTerminalBlocks
- Safety notice: Safety Information
