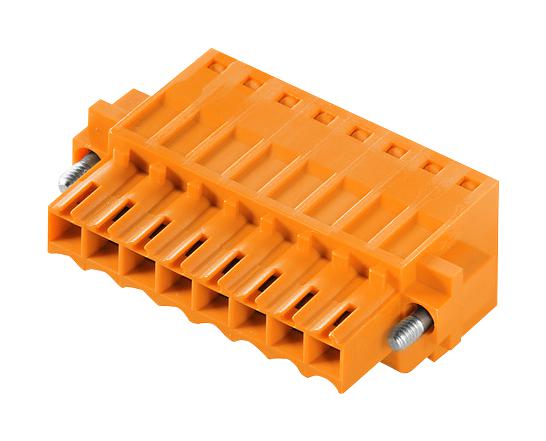

WEIDMULLER 1690950000 PCB Signal Connector
The Weidmiiller OMNIMATE Signal series BL/SL 3.50 features female connectors with tension clamp system designed for 3.5 mm pitch cables. These PCB plug-in connectors have 9 poles, operate at 320 V/14.5 A, and support wiring ranges from 0.2 to 1.5 mm². They offer space for labeling, are coding-capable, and feature a compact 180° outlet direction. Made from durable PBT with tinned copper contacts, they ensure reliable electrical connection, safety, and easy installation, suitable for industrial automation, control systems, and electronic applications.
WEIDMULLER 1690950000 PCB Signal Connector Specifications:
- Number of poles: 9
- Pitch: 3.5mm (0.138 inch)
- Rated Voltage: 320 V (IEC), 300V (UL/CSA)
- Rated Current: 14.5 A (IEC), 10 A (UL/CSA)
- Clamping range: 0.2 - 1.5 mm²
- Wire connection: AWG 26 - AWG 14
- Material: PBT insulator, copper alloy contact, tinned
- Contact surface: 4-8 μm Sn hot-dip tinned
- Temperature range: -25°C to 55°C (storage), -30°C to 100°C (installation & operation)
- Protection class: IP20, touch-safe according to DIN VDE 57 106
- Number of rows: 1, Outlet direction: 180°
- Tightening torque: 0.2 - 0.25 Nm
- Push-in force: 10N per pole, Withdrawal force: 8N per pole
- UL and CSA certified, RoHS compliant
- Packaging: box, weight: approx. 10.129 grams
Buy the Weidmiiller Series OMNIMATE Signal: PCB Connector 9 Poles: 1690950000
Order the Weidmiiller OMNIMATE Signal series PCB connector today for high-quality, reliable electrical connections in automation, control, or electronic projects. Featuring 9 poles, 3.5mm pitch, and a tension clamp system, this connector offers easy installation, space for labeling, and coding options. Made from durable PBT with tinned copper contacts, it ensures safety and longevity in industrial environments. Ideal for professionals needing dependable, compliant, and efficient connection solutions, all available for quick purchase online.
Buy Weidmiiller OMNIMATE Signal PCB Connector with 9 poles and tension clamp system now and ensure reliable, efficient industrial control connections.
Frequently Asked Questions
Where can I buy WEIDMULLER 1690950000?
You can click on the BUY or RFQ button to purchase 1690950000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1690950000?
You can download the 1690950000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1690950000?
WEIDMULLER
