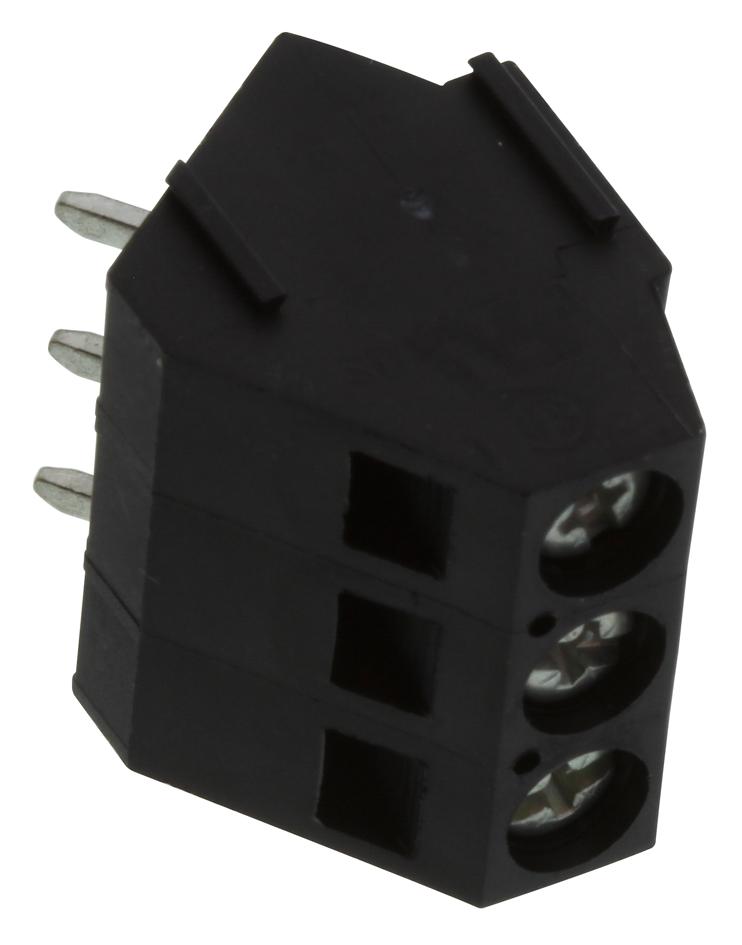

WEIDMULLER 1715300000 Signal Connector
The Weidmüller OMNIMATE Signal series LM 5.00/03/135 3.5SN BK BX is a PCB terminal block engineered for robust and secure connections in various industrial applications. Its clamping yoke connection ensures reliable conductor retention, while the 5.00 mm pitch and 135° outlet direction provide flexibility in PCB layout. The terminal block is suitable for conductor cross-sections up to 2.5 mm² and is designed to withstand high voltage and current loads, making it ideal for power distribution, signal transmission, and automation systems. It is RoHS compliant and packaged in a box for convenient handling and storage.
WEIDMULLER 1715300000 Signal Connector Specifications:
- Type: LM 5.00/03/135 3.5SN BK BX
- Order No.: 1715300000
- Version: PCB terminal, 5.00 mm, 3 poles, 135°, Solder pin length: 3.5 mm, tinned, Black
- GTIN(EAN): 4008190365189
- Qty.: 500pc(s)
- Product data (IEC): 630 V / 17.5 A / 0.2 - 2.5 mm²
- Product data (UL): 300 V/15 A/AWG 24 - AWG 14
- Width: 15 mm
- Height: 19 mm
- Height of lowest version: 15.5 mm
- Depth (inches): 0.547 inch
- Width(inches): 0.591 inch
- Height(inches): 0.748 inch
- Depth: 13.9 mm
- Net weight: 3.72 g
- Product family: OMNIMATE Signal - series LM
- Mounting: onto the PCB
- Connection: THT solder connection
- Pitch in mm: 5 mm
- No. of poles: 3
- Max. adjacent poles per row: 24
- Solder pin dimensions: 0.95 x 0.8 mm
- Solder eyelet hole diameter tolerance: + 0,1 mm
- Screwdriver blade: 0.6 x 3.5
- Tightening torque, min.: 0.4 Nm
- Clampingscrew: M 2.5
- L1 in mm: 10 mm
- Touch-safe protection: DIN VDE 0470, IP 20
- Volume resistance: 1.20 mΩ
- Wire connection method: Clamping yoke connection
- Conductor outlet direction: 135°
- Pitch in inches: 0.197 inch
- Fitted by customer: Yes
- Solder pin length: 3.5 mm
- Solder eyelet hole diameter: 1.3 mm
- Number of solder pins per pole: 1
- Screwdriver blade standard: DIN 5264
- Tightening torque, max.: 0.5 Nm
- Stripping length: 6 mm
- L1 in inches: 0.394 inch
- Touch-safe protection (DIN VDE): 57 106
- Insulating material: Wemid(PA)
- Colour: Black
- Insulating material group: I
- Insulation resistance: ≥ 108Ω
- Contact material: Copper alloy
- Coating: 1-3μm Ni,4-6μm SN
- Layer structure of solder connection: 1-3 µm Ni / 4-6 µm Sn
- Clamping range, min.: 0.2 mm²
- Clamping range, max.: 2.5 mm²
- Wire connection cross section AWG, min.: AWG 24
- Wire connection cross section AWG, max.: AWG 14
- Solid conductor min.: 0.2 mm²
- Flexible conductor min.: 0.2 mm²
- Plastic collar ferrule min.: 0.25 mm²
- Wire end ferrule min.: 0.25 mm²
