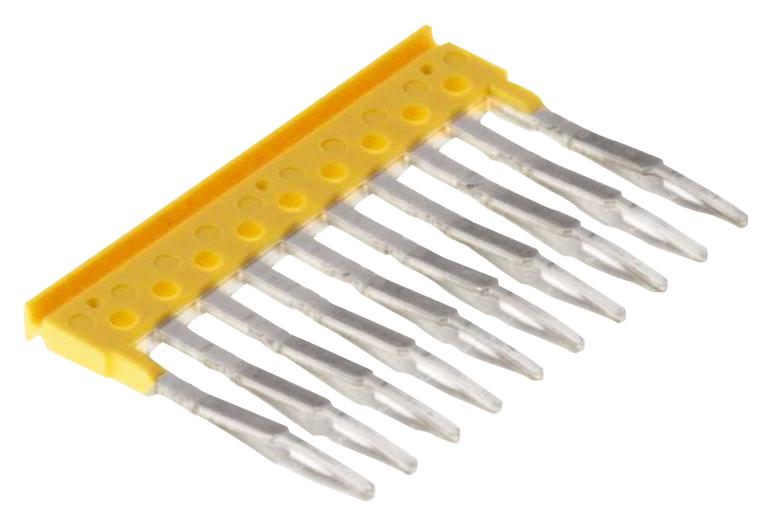

WEIDMULLER 1776200000 Spring Clamp Terminal Block
The Weidmüller ZQV 1.5/10 is a spring connection terminal block designed with tension clamp technology, providing a universal contact system suitable for various conductor connection types. This innovative design offers a flexible and cost-effective alternative to traditional connection methods. The terminal block boasts a maximum current rating of 17.5A and is constructed from Wemid material with a V-0 flammability rating, ensuring safety and durability. It is ideal for applications requiring secure and reliable electrical connections in industrial environments, offering ease of use and efficient performance. Compliant with RoHS standards, this terminal block contributes to environmentally responsible practices.
WEIDMULLER 1776200000 Spring Clamp Terminal Block Specifications:
- Type: ZQV 1.5/10
- Order No.: 1776200000
- Version: Accessories, Cross-connector, 17.5 A
- GTIN(EAN): 4032248200177
- Quantity: 20 pc(s).
- Width: 2.8 mm
- Height: 34 mm
- Depth: 24.8 mm
- Net weight: 3.391 g
- Width(inches): 0.11 inch
- Height(inches): 1.339 inch
- Depth(inches): 0.976 inch
- Continuous operating temp., min.: -50 °C
- Continuous operating temp., max.: 120 °C
- Material: Wemid
- UL 94 flammability rating: V-0
- Colour: Yellow
- Version (for terminals): For the terminals
- Mounting rail: none
- Explosion-tested version: No
- Type of fixing: Plugged
- Installation advice: Direct mounting
- Pitch in mm (P): 3.5 mm
- Rated current: 17.5 A
- ETIM 3.0: EC000489
- ETIM 5.0: EC000489
- UNSPSC: 30-21-18-01
- eClass 6.2: 27-14-11-40
- eClass 8.1: 27-14-11-40
- eClass 9.1: 27-14-11-40
- ETIM 4.0: EC000489
- ETIM 6.0: EC000489
- eClass 5.1: 27-14-11-40
- eClass 7.1: 27-14-11-40
- eClass 9.0: 27-14-11-40
- ROHS: Conform
Buy the 1776200000 WEIDMULLER Spring Clamp Terminal Block | myMectronic
Purchase the Weidmüller ZQV 1.5/10 Spring Clamp Terminal Block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WEIDMULLER 1776200000?
You can click on the BUY or RFQ button to purchase 1776200000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1776200000?
You can download the 1776200000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1776200000?
WEIDMULLER
