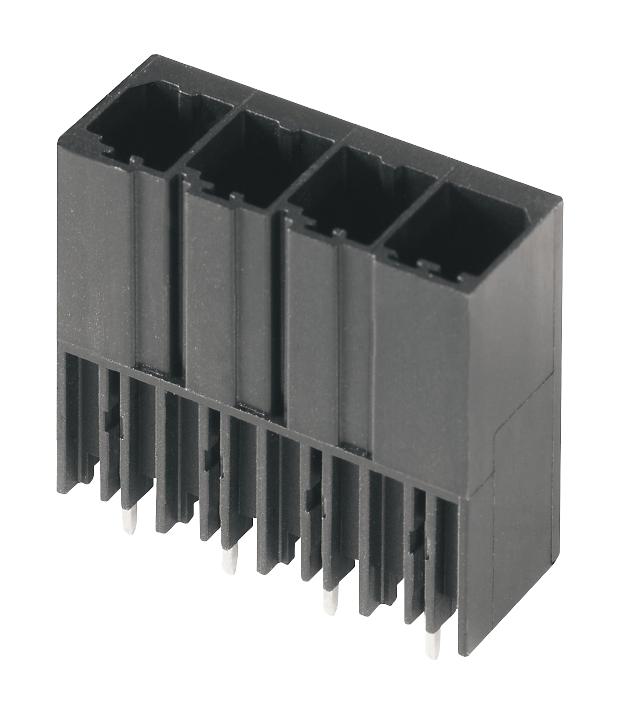

WEIDMULLER 1930660000 High-Performance Solder Header
This high-performance male header from the OMNIMATE Power series is designed for side-by-side mounting with a patented flange for quick, tool-free fixation. It features a 3.5 mm pin length optimized for lead-free wave soldering, with a robust solder connection and a 7.62 mm pitch. The single-row, 8-pole male header ensures maximum connection reliability and prevents incorrect mating through a unique profile and coding diversity. Suitable for PCB applications, it offers high current capacity, a compact design, and enhanced durability for various industrial and electronic projects.
WEIDMULLER 1930660000 High-Performance Solder Header Specifications:
- Type of connection: Solder connection
- Number of poles: 8
- Solder pin length: 3.5 mm, tolerance +0.1/-0.3 mm
- Pitch in mm: 7.62 mm
- Pitch in inches: 0.3 inch
- Pin dimensions: 0.8x 1.0 mm
- Number of solder pins per pole: 2
- Solder eyelet hole diameter: 1.3 mm, tolerance +0.1 mm
- Material: PA GF (Polyamide Glass Fiber)
- Color: Black (RAL 9011)
- Rated current: 57A (IEC), 40.5A (UL)
- Rated voltage: 300V (CSA, UL), 630V (IEC)
- Temperature range: -50°C to +130°C
- Creepage distance: 9.6 mm
- Clearance: 6.9 mm
- Contact material: Copper alloy, Ni/Sn plated
- Flammability rating: UL V0
- Number of mating cycles: 25
- Coded and fastened for secure connection
Buy the Buy Weidmueller SV 7.62HP/08/180G 3.5SN BK BX Part Number 1930660000 Online
Purchase the Weidmueller SV 7.62HP/08/180G 3.5SN BK BX today to ensure reliable, high-current PCB connections with quick, tool-free mounting. Designed for industrial applications, this 8-pole male header offers exceptional durability, optimized 3.5 mm pin length for lead-free wave soldering, and a patented flange for fast fixation. Its compact design and robust solder profile make it ideal for high-performance electronic assemblies requiring secure and dependable connections. Order now for long-lasting industrial-grade connection solutions.
Get Weidmueller SV 7.62HP/08/180G 3.5SN BK BX today—engineered for high current capacity and durable PCB connections.
