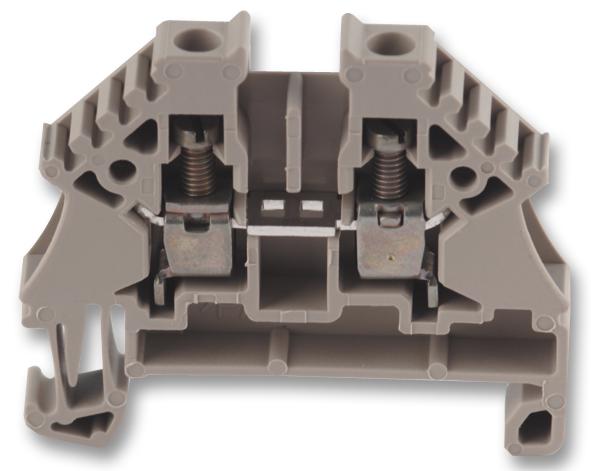

WEIDMULLER WDU16N industrial terminal block
The WDU 16N is a durable, screw-connection feed-through terminal block designed for 16 mm² conductors. Rated for 690 V and 76 A, it features a dark beige color and robust construction suitable for industrial wiring. It complies with IEC standards and UL rated, providing reliable electrical connection in various automation and control applications. The terminal block supports two clampable wires with a max cross-section of 25 mm² and min of 1.5 mm², ensuring secure and efficient wiring. Its compact dimensions facilitate easy installation on TS 35 mounting rails, making it ideal for demanding electrical environments.
WEIDMULLER WDU16N industrial terminal block Specifications:
- Width: 12mm (0.472 inch)
- Height: 60mm (2.362 inch)
- Depth: 46.5mm (1.831 inch)
- Depth including DIN rail: 47mm
- Material: Wemid, Dark Beige color
- Flammability rating: UL 94V-0
- Rated voltage: 690V
- Rated current: 76A
- Clamping range: min 1.5 mm², max 25 mm²
- Connection type: Screw, M4
- Tightening torque: 1.2 to 2.4 Nm
- Wire connection: Stranded, wire-end ferrules, min 1.5 mm², max 16 mm²
- Number of potentials: 1
- Mounting: TS 35 rail
- CSA rating: 600V, max 6 AWG wires
- Compliance: IEC 60947-7-1, UL Listed
- Temperature range: -50°C to +120°C
Buy the Buy Weidmueller WDU 16N Part Number WDU16N Online
Purchase the Weidmueller WDU 16N terminal block online today and ensure secure, reliable electrical connections in your automation and control projects. This high-quality screw terminal offers easy installation, robust construction, and compliance with industry standards. Its compact design fits seamlessly into panels and electrical systems, maximizing space and operational safety. Suitable for a wide range of wiring applications, this terminal block guarantees optimal performance at 690 V and 76 A, making it an excellent choice for industrial wiring integrations.
Buy Weidmueller WDU 16N now and experience unmatched reliability and efficient wiring solutions for industrial automation.
Frequently Asked Questions
Where can I buy WEIDMULLER WDU16N?
You can click on the BUY or RFQ button to purchase WDU16N from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part WDU16N?
You can download the WDU16N datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of WDU16N?
WEIDMULLER
