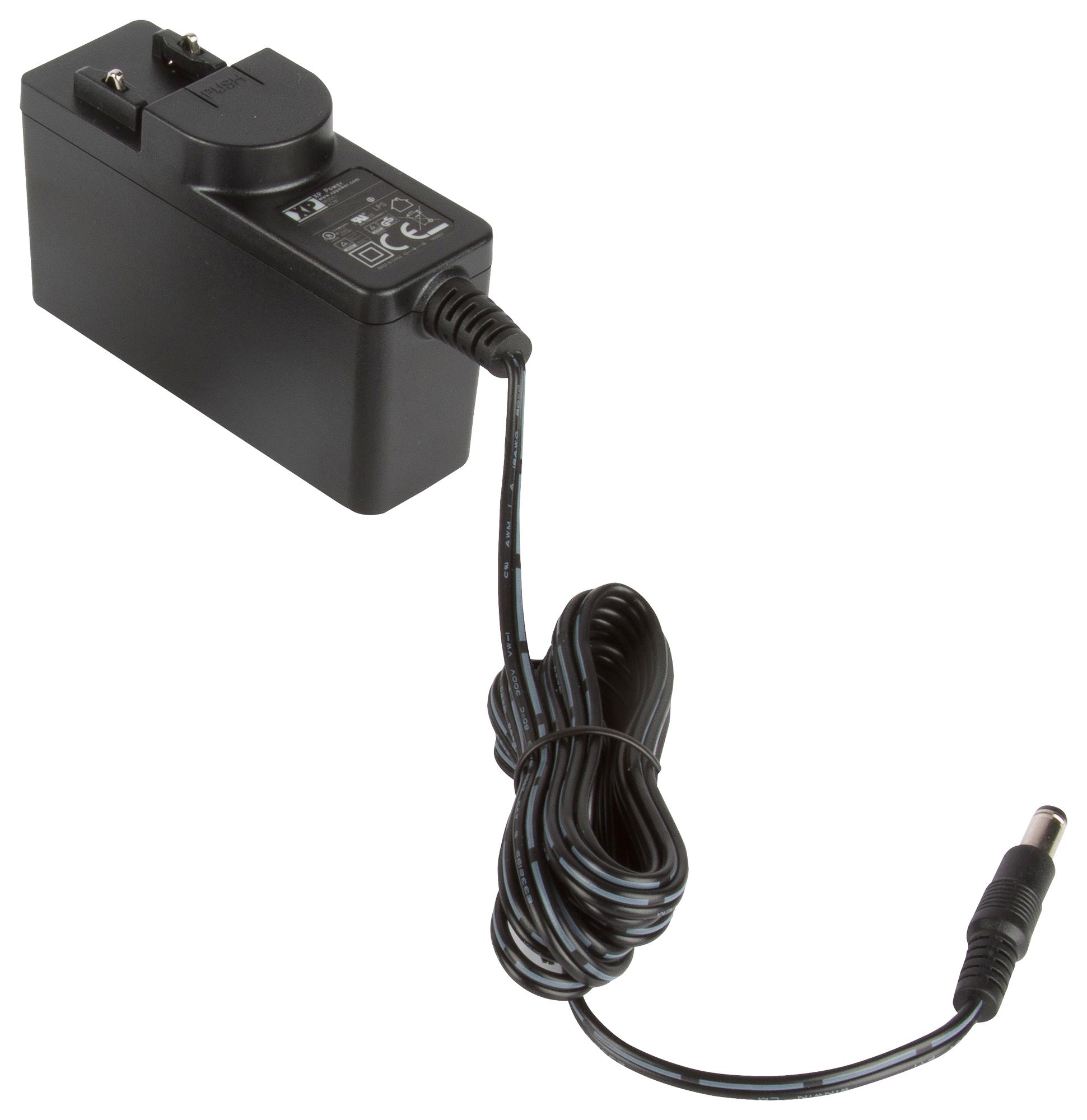

XP POWER ACM12US12 Wall Plug Adapter
The ACM12 series of wall plug adapters complies with the latest Energy Efficiency Level VI standards, offering high active mode efficiency and extremely low no-load power consumption. These adapters feature a standard jack plug connector, making them suitable for a wide range of cost-sensitive industrial and medical applications. They are equipped with interchangeable mains connectors, output voltages ranging from 5V to 24V, and are designed with Class II construction for safety. Additionally, they have received Medical and ITE approvals and conform to European Code of Conduct Tier 2 standards. The products come with a three-year warranty, ensuring reliability and long-term performance.
XP POWER ACM12US12 Wall Plug Adapter Specifications:
- Power Range: 12 Watt
- Energy Efficiency Level: VI
- European CoC Tier: 2
- Approvals: Medical and ITE
- Construction: Class II
- Output Voltage: from 5 V to 24 V
- Input Connector: Interchangeable mains connectors
- Dimensions: 2.99 x 1.19 x 1.9 inches (76.0 x 30.3 x 48.2 mm)
- Output Current: up to 4000 mA depending on model
- Efficiency: up to 85.7%
- Warranty: 3 Years
- Safety Certification: UL, EN, IEC, CSA
- Isolation: 4000 VAC input to output
- Leakage Current: 30 - 100 μA
- Switching Frequency: 24 - 70 kHz
- Operating Temperature: 5°C to +60°C
- Storage Temperature: -20°C to +85°C
- Operating Humidity: 5% to 90% RH
- Operating Altitude: up to 5000 m
- Cooling: Natural convection
Buy the XP Power Series ACM12 AC-DC Power Supply: ACM12US12
Purchase the XP Power ACM12US12 wall plug adapter online today to ensure your devices operate efficiently and reliably. With a wide range of output voltages from 5V to 24V and a compact design measuring 76 mm by 30 mm by 48 mm, it fits seamlessly into various industrial and medical applications. Enjoy energy efficiency Level VI standards, Class II safety construction, interchangeable mains connectors, and a reliable 3-year warranty. Designed for durability, safety, and compliance, this power supply is your ideal choice for cost-sensitive projects requiring high performance.
Order your XP Power Series ACM12US12 today and give your industrial or medical projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy XP POWER ACM12US12?
You can click on the BUY or RFQ button to purchase ACM12US12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ACM12US12?
You can download the ACM12US12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ACM12US12?
XP POWER
