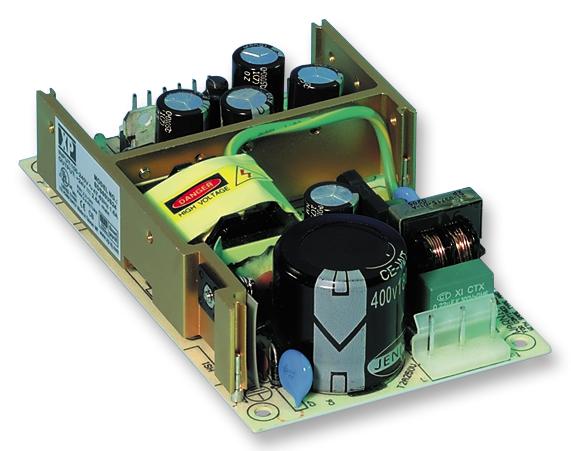

XP POWER SDS60UT06 industrial power supply
The SDS60UT06 is a versatile power supply designed for industrial applications, featuring a 60W output with multiple voltage options, including 3.3V, 5V, 12V, 15V, 24V, and -12V. It offers efficient operation with an 80% typical efficiency and operates over an input range of 90-264 VAC or 120-370 VDC. The unit is convection-cooled, with a compact 3-inch by 5-inch form factor suitable for 1U installations, and includes a 3-year warranty. Its protective features ensure reliable performance in demanding environments.
XP POWER SDS60UT06 industrial power supply Specifications:
- Input Voltage: 90-264 VAC / 120-370 VDC
- Efficiency: 80% typical at 230 VAC full load
- Input Frequency: 47-63 Hz
- Isolation: 3000 VAC input to output
- Input Current: 1.6 A max at 115 VAC, 1.0 A max at 230 VAC
- Switching Frequency: 60 kHz typical
- Power Density: 3.5 W/in³
- Output Power: 60 Watts
- Output Voltage Range: 3.3V to 48V options, multiple rails including ±12V, ±15V, 5V, 24V, -12V
- Output Voltage Tolerance: ±1% initial set accuracy, trims +10% on V1
- Ripple & Noise: 1% pk-pk typical at 20 MHz bandwidth
- Operating Temperature: 0°C to +70°C, derates linearly from 100%
- Humidity: 5-95% RH non-condensing
- Safety Approvals: EN60950-1, UL60950-1, CSA60950-1
- MTBF: 190,000 hours typical
- Protection Features: Overvoltage, overload, short circuit, over temperature, automatic recovery
- Cooling: Convection-cooled
- Dimensions: 3” x 5” (76.2 x 127 mm)
- Weight: 0.52 lbs (240 g)
Buy the Brand SDS60UT06 – Reliable Power Supply for Industrial Applications
Order the SDS60UT06 power supply online today and ensure your industrial projects benefit from high efficiency, compact design, and reliable performance. This versatile unit offers multiple output voltages for various applications, includes essential protection features, and is suitable for 1U enclosures. Its convection cooling and high MTBF make it ideal for demanding environments. Purchase now and enjoy fast delivery, warranty support, and trusted quality for your industrial power needs.
Buy the SDS60UT06 power supply now and experience unmatched reliability and performance in industrial environments.
Frequently Asked Questions
Where can I buy XP POWER SDS60UT06?
You can click on the BUY or RFQ button to purchase SDS60UT06 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part SDS60UT06?
You can download the SDS60UT06 datasheet or visit the XP POWER website for support.
Who is the manufacturer of SDS60UT06?
XP POWER
