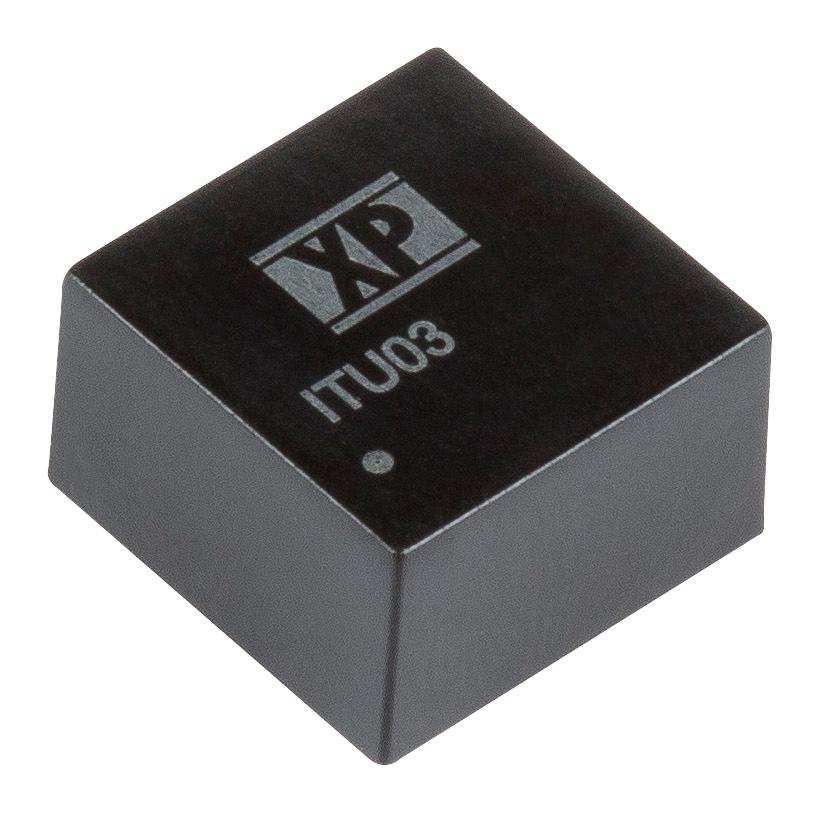

XP POWER ITU0312D05 DC-DC Converter
The ITU series offers a compact 3W DC-DC converter with a wide 4:1 input range, including 4.5 to 18V, 9 to 36V, and 18 to 75V DC. It features regulated output voltages from 3.3V to 30VDC with ±1% accuracy, high efficiency up to 84%, and a robust DIP8 package. Additional features include 1.6kV DC input/output isolation, remote on/off control, short-circuit protection, and operation from -40°C to +80°C. Suitable for industrial applications, it guarantees reliable performance with an MTBF >820,000 hours, supported by a 3-year warranty.
XP POWER ITU0312D05 DC-DC Converter Specifications:
- Input Voltage Range: 4.5 to 18V, 9 to 36V, 18 to 75V DC
- Output Voltage: 3.3V to 30VDC (regulated to ±1%)
- Output Power: 3 Watts
- Isolation: 1.6kVDC input/output
- Efficiency: up to 84%
- Operating Temperature: -40°C to +80°C (full power up to +70°C)
- Dimensions: 0.55 x 0.55 x 0.32 inches (14.0 x 14.0 x 8.1 mm)
- Remote On/Off: Yes, controlled via pin
- Short Circuit Protection: Yes, auto recovery
- MTBF: >820,000 hours
- Compliance: EN55032, CE, UKCA
- Case Material: Non-conductive black plastic
- Maximum Capacitive Load: See model ratings
- Ripple & Noise: 100mV peak-to-peak
- Surge Capability: Up to 100ms
- Safety Standards: Meets relevant safety and EMI standards
Buy the XP Power ITU Series – Reliable DC-DC Converter for Industrial Applications
Secure your XP Power ITU Series DC-DC converter online today and experience dependable power solutions for industrial projects. This 3W module offers wide input voltage ranges, regulated outputs from 3.3V to 30VDC, and maximum efficiency of 84%. Its compact DIP8 package includes features like 1.6kVDC isolation, remote on/off control, and short-circuit protection for enhanced reliability. Ideal for industrial, automation, and control systems, it guarantees performance in operating temperatures from -40°C to +80°C while ensuring long MTBF and safety compliance, making it a perfect choice for demanding applications.
Order your XP Power series ITU DC-DC converter today and ensure reliable power conversion with high efficiency and industrial-grade performance.
