XP POWER LCW50US15 regulated convection-cooled power supply

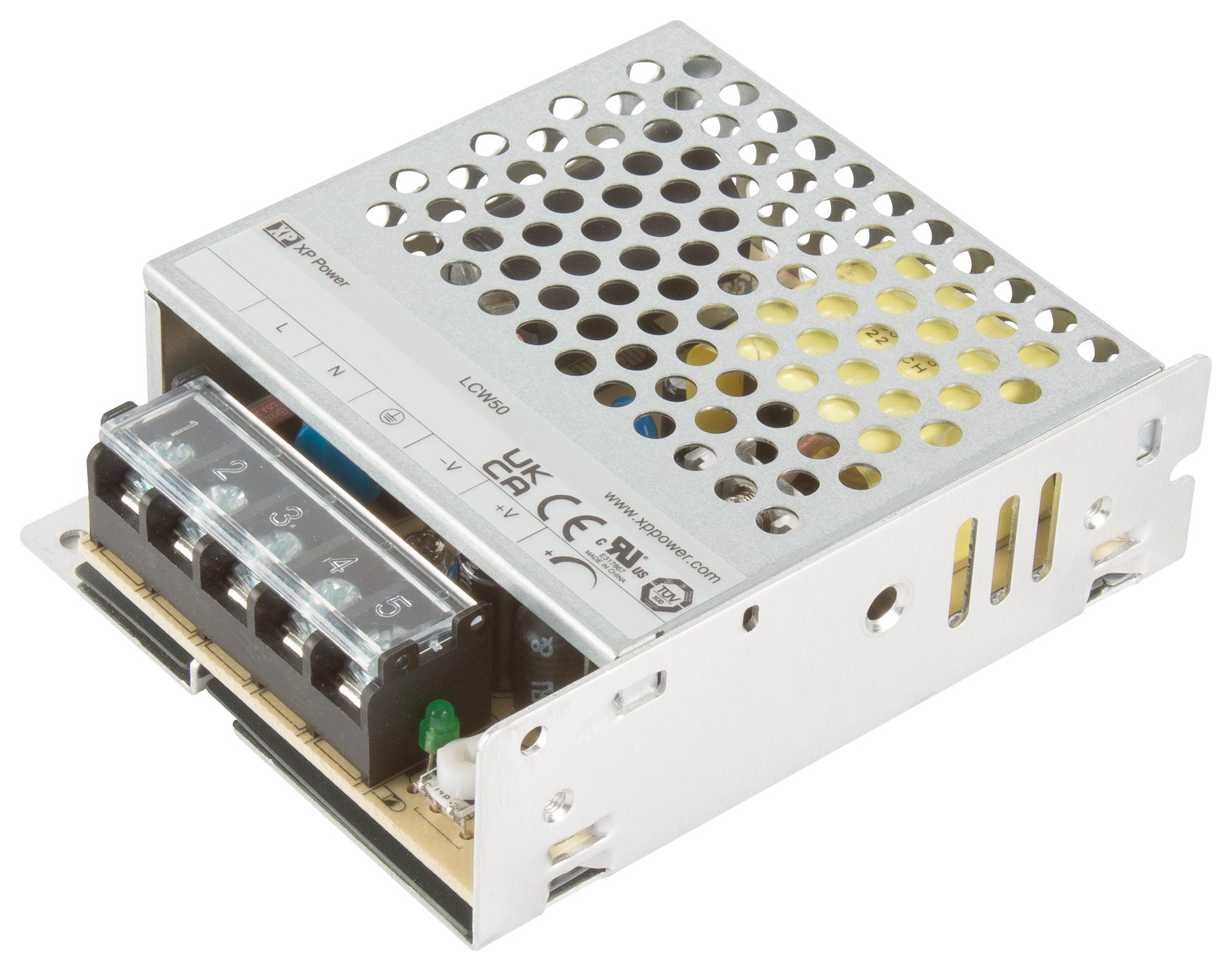

The LCW50 series regulated, convection-cooled AC to DC power supplies offer a cost-effective solution for industrial electronics, technology, and household applications. These 50-watt units support a wide input voltage range of 85-305VAC, feature output voltage adjustment with ±10% flexibility, and include protections against short circuits, overcurrent, overvoltage, and overload conditions. Designed for versatility, they are suitable for auxiliary power sources, security systems, lighting control, smart home and office control systems, as well as ticketing and vending applications. Certified standards include UL62368-1, EN62368-1, EN60335, EN61558, CE, and UKCA. The supplies are convection-cooled, with features such as integrated connector covers, conformal coating options, and an efficiency of 87% at a switching frequency of 65kHz. Operating temperature ranges from -30°C to +70°C. The units come in an aluminum chassis with a vented galvanized steel cover, measure 3.898 inches x 3.228 inches x 1.181 inches (99mm x 82mm x 30mm), include a three-year warranty, and support Class B conducted and radiated emissions.
XP POWER LCW50US15 regulated convection-cooled power supply Specifications:
- Input Voltage: 85-305VAC
- Output Power: 50W
- Output Voltage Adjustment: ±10%
- Efficiency: Up to 87%
- Frequency: 65kHz
- Operating Temperature: -30°C to +70°C
- Dimensions: 3.898 inches x 3.228 inches x 1.181 inches (99mm x 82mm x 30mm)
- Weight: 0.418 kg (190g)
- Isolation: Input to Output: 4000 Vac, Input to Ground: 2000 Vac, Output to Ground: 1250 Vac
- Conformal Coating Option: Yes, suffix -E
- Housing Material: Aluminum chassis with galvanized steel cover
- Certifications: UL62368-1, EN62368-1, EN60335, EN61558, CE, UKCA
- Cooling Method: Natural convection
- Humidity Range: 5-90% RH, non-condensing
- Shock and Vibration: Tested per EN60068-2-27, 10-500Hz, 5g
Buy the XP Power Series LCW Power Supply: LCW50US15
Enhance your industrial or household systems with the XP Power LCW50US15 regulated convection-cooled power supply. This 50W unit supports wide input voltages from 85 to 305VAC, offering adjustable output voltage with ±10% flexibility. It features comprehensive protections including short circuit, overcurrent, and overvoltage safeguards, ensuring safe operation. Certified to UL, EN, CE, and UKCA standards, it operates efficiently with up to 87% efficiency at 65kHz. Compact and convection-cooled, it measures 3.898 inches by 3.228 inches by 1.181 inches, suitable for various applications, backed by a 3-year warranty, and ideal for secure, reliable power delivery.
Buy XP Power LCW50US15 now and experience reliable power with adjustable voltage, high efficiency, and robust protections for industrial and household systems.
Frequently Asked Questions
Where can I buy XP POWER LCW50US15?
You can click on the BUY or RFQ button to purchase LCW50US15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW50US15?
You can download the LCW50US15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW50US15?
XP POWER
