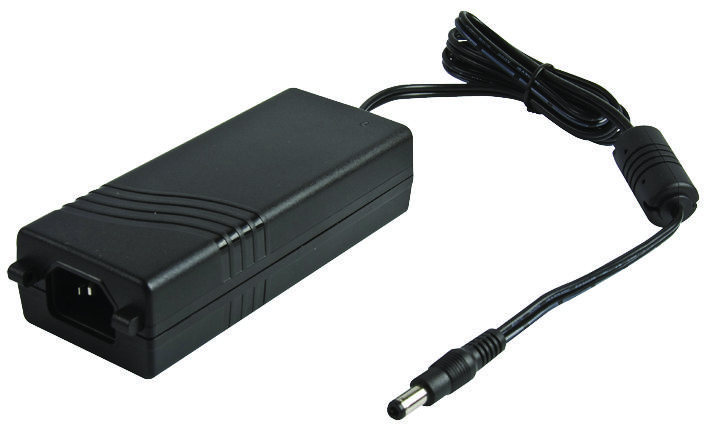

XP POWER AFM30US12C2 Power Supply
The AFM30 is a 30W external power supply with Energy Efficiency Level V, featuring short-circuit protection in hiccup mode and a barrel plug output connector 2.5 x 5.5 x 11mm with positive polarity. Suitable for power management and medical devices, it supports a wide input voltage range of 80-264 VAC and operates from 0°C to 60°C with derating. It has IT and medical safety approvals, CCC qualification, and Class II construction for added safety and reliability, making it ideal for critical applications requiring stable power and compliance with safety standards.
XP POWER AFM30US12C2 Power Supply Specifications:
- Input Voltage: 80-264 VAC, derate output power
- Input Frequency: 47-63 Hz
- Input Current: 0.8 A rms at 115VAC, 1.2 A rms at 115VAC, 1.5 A rms at 115VAC
- Inrush Current: 50 A max at 240VAC
- Power Factor: EN61000-3-2, class A, 0.8 at 115VAC
- Output Voltage: 12 V
- Output Voltage Trim: Not user-adjustable
- Output Power: 30 W
- Output Connector: Barrel plug 2.5 x 5.5 x 11 mm, positive center
- Efficiency: 87.4% at 115VAC
- Operating Temperature: 0°C to 60°C (derates from 100% at 40°C to 60% at 60°C)
- Isolation: Input to output 4000 VAC, Input to ground 1500 VAC
- Efficiency: Typical 87.4%
- Environmental Ratings: Complies with EMC and safety standards
- Safety Approvals: IT & Medical approvals, CCC qualified, Class II construction
Buy the AFM Series Power Supply: 12V 30W AFM30US12C2
Experience reliable power delivery with the AFM30 power supply, offering 30W output power, energy-efficient design, and robust safety features. Ideal for medical, industrial, and power management systems, it operates within an input range of 80-264 VAC and temperature range of 0°C to 60°C. Built with Class II construction and safety approvals, this power supply ensures durability and safety for critical applications. Purchase online today for a dependable and compliant power solution that meets industry standards.
Get AFM Series 30W power supply today—built for precision and long-lasting durability in medical and power management applications.
