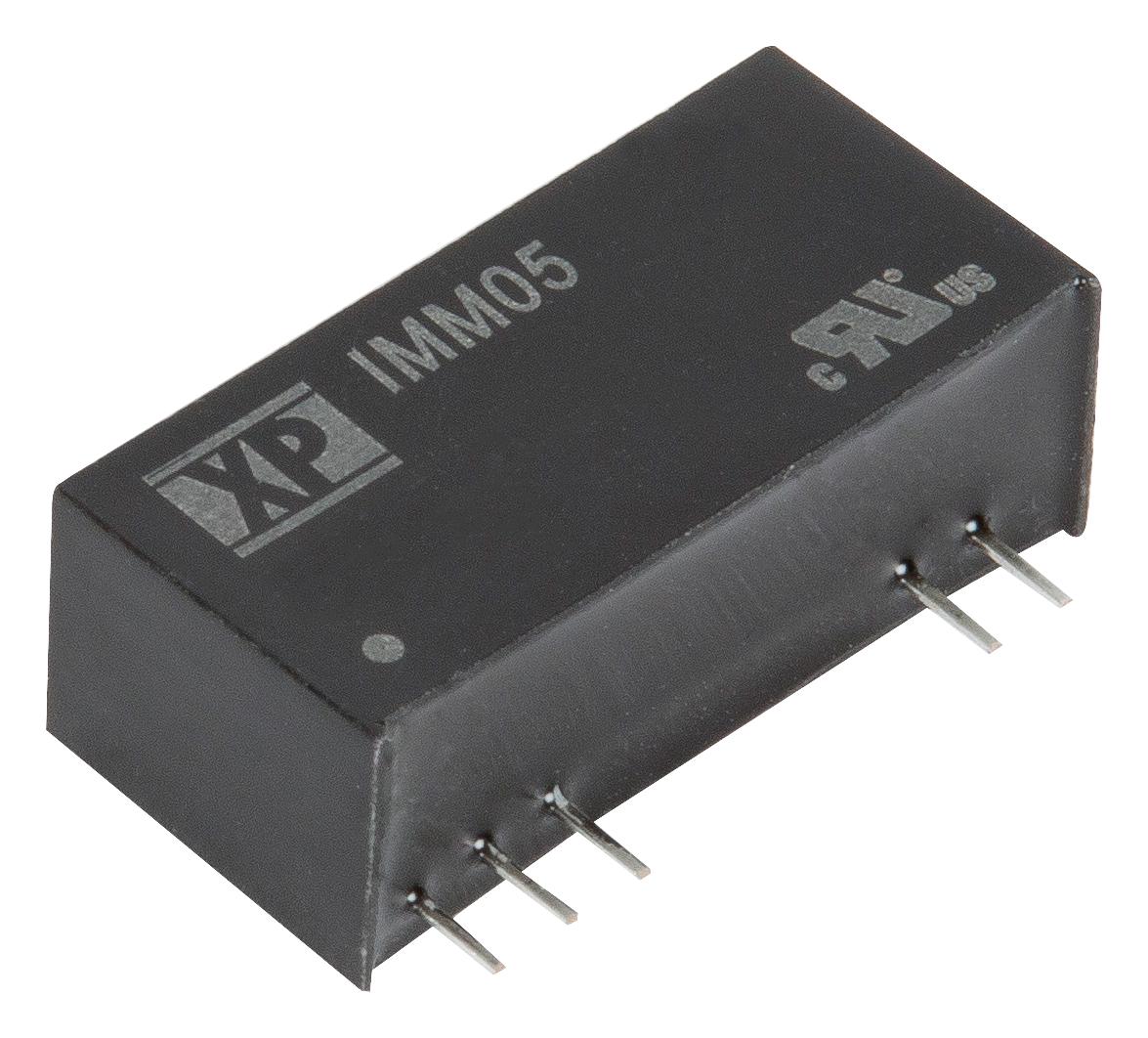

XP POWER IMM0512S3V3 Medical DC-DC Converter
The IMM05 series of DC-DC converters provides an ultra-compact 5W power solution with medical-grade isolation suitable for BF and CF applications. They support regulated single and dual outputs from 3.3VDC to ±15VDC, with a wide 2:1 input voltage range. Featuring 1500VAC isolation, a SIP9 package, remote on/off, and operation from -20°C to +100°C (full load at +60°C), these converters meet global medical standards, including 1 x MOPP at 250VAC, ensuring safety and reliability in demanding medical environments.
XP POWER IMM0512S3V3 Medical DC-DC Converter Specifications:
- Power Rating: 5W
- Input Voltage Range: 2:1, typically 9V to 36V DC
- Output Voltage Range: 3.3V to ±15V DC, regulated
- Isolation Voltage: 1500 VAC
- Isolation Type: Basic insulation, 1 x MOPP at 250VAC
- Operating Temperature: -20°C to +100°C (full load up to +60°C)
- Package: SIP9
- Remote On/Off: Yes
- Dimensions: 1.02 x 0.36 x 0.49 inches (26.0 x 9.3 x 12.5 mm)
- Surge & Conducted Immunity: Meets EN standards for medical devices
- Certifications: Worldwide medical certifications for BF & CF applications
- Weight: Approximately 6.2 grams
- Maximum Capacitive Load: Varies per model, up to 22,000 μF
- Efficiency: Approximately 82%
- Operating Humidity: 5% to 95% RH non-condensing
- Switching Frequency: 7 to 1300 kHz
- Safety Standards: IEC/EN60601-1, CSA 22.2 No. 60601-1
Buy the XP Power Series IMMO5 DC-DC Converter: IMM0512S3V3
Purchase the XP Power IMM0512S3V3 medical-grade DC-DC converter online today to ensure high reliability, complete isolation, and certified safety for your medical applications. This ultra-compact, regulated 5W power module features 1500VAC isolation, remote on/off control, and operation across a wide temperature range from -20°C to +100°C, making it ideal for demanding BF and CF environments. Benefit from worldwide medical certifications, compact SIP9 packaging, and high efficiency, ensuring your medical devices operate safely and reliably with minimal footprint.
Buy XP Power IMM0512S3V3 now and experience unmatched reliability and medical-grade safety in compact power solutions.
Frequently Asked Questions
Where can I buy XP POWER IMM0512S3V3?
You can click on the BUY or RFQ button to purchase IMM0512S3V3 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMM0512S3V3?
You can download the IMM0512S3V3 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMM0512S3V3?
XP POWER
