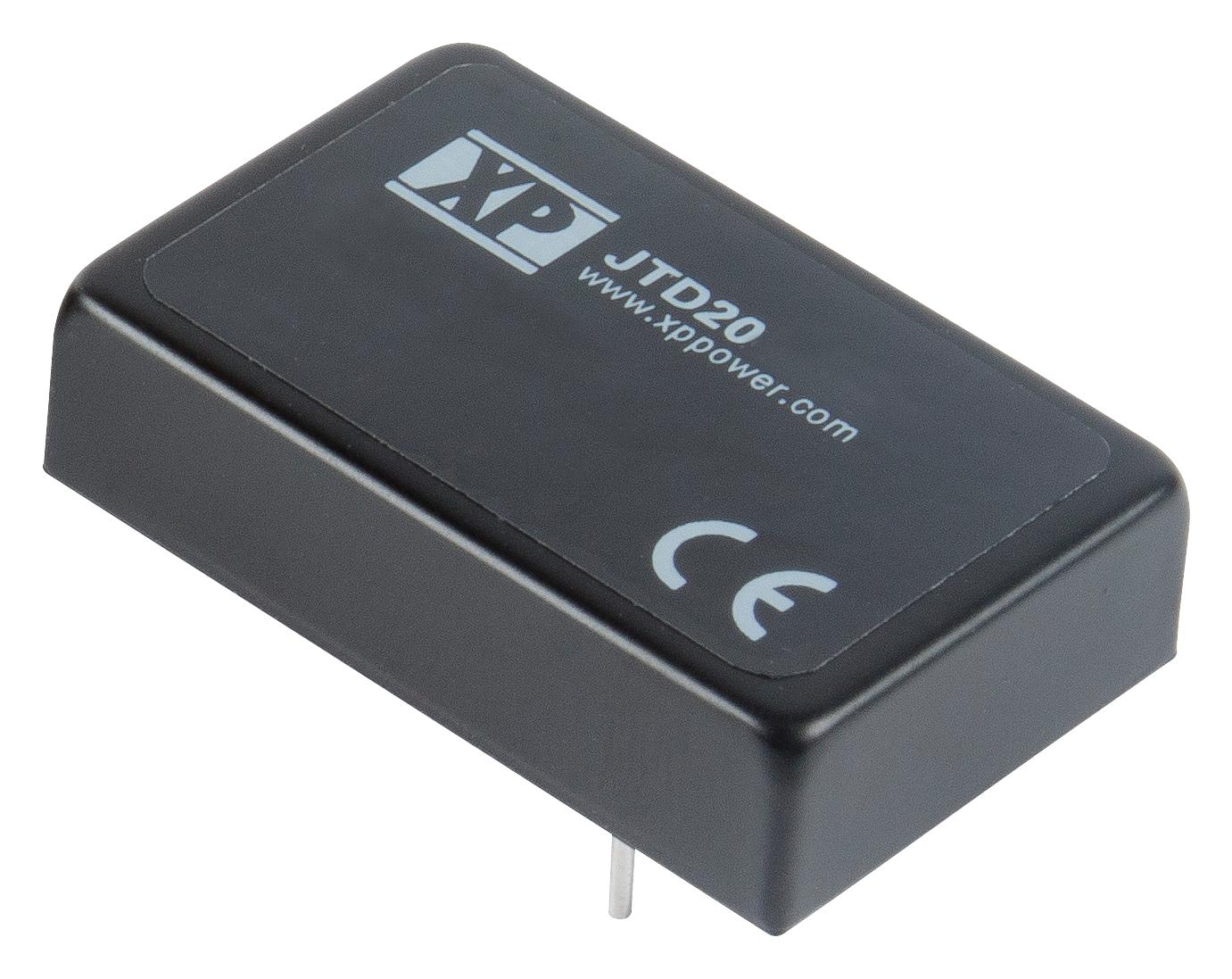

XP POWER JTD2024S12 DC-DC Converter
The JTD20 Series DC-DC Converter offers 20 Watts of power with single and dual outputs, wide 4:1 input range, and 1600 VDC isolation. It features an operational temperature range from -40 °C to +100 °C, full load at 65 °C ambient, remote on/off, and high efficiency up to 90%. The compact 1.6 x 1-inch footprint makes it suitable for space-constrained applications. Designed for robust industrial performance, it includes overvoltage and short circuit protections, with a 3-year warranty, making it ideal for various automation, control, and electronic device applications.
XP POWER JTD2024S12 DC-DC Converter Specifications:
- Power Output: 20 Watts
- Input Voltage Range: 18-75 VDC
- Input Voltage Nominal: 24 VDC (typical)
- Output Power: Single/Dual Outputs, up to 20W
- Output Voltage: 3V, 5V, 12V, 15V (see models and ratings)
- Output Current: Ranges from 460 mA to 5500 mA depending on model
- Efficiency: Up to 90%
- Isolation Voltage: 1600 VDC
- Operating Temperature: -40 °C to +100 °C
- Storage Temperature: -55 °C to +125 °C
- Temperature Coefficient: 0.02 %/°C
- Start-up Time: 30 ms
- Ripple & Noise: 75/60 mV pk-pk
- Protection: Overvoltage, Short Circuit in auto-recovery hiccup mode
- Dimensions: 1.6 x 1.0 x 0.41 inches (40.6 x 25.4 x 10.4 mm)
- Weight: Approximately 0.064 lbs (28 g)
Buy the XP Power Series DC-DC Converter: JTD20
Secure your power management solution today by purchasing the XP Power JTD2024S12 online. This dependable 20W converter offers high efficiency up to 90%, wide input range, and extensive protection features, perfect for industrial, automation, or control applications. Its compact size and full load operation at 65 °C ambient ensure optimal performance in space-limited environments. Get fast delivery and reliable support from authorized distributors to enhance your electronic systems efficiently and effectively.
Buy XP Power JTD2024S12 now and experience unmatched reliability and performance with high efficiency and robust industrial features.
Frequently Asked Questions
Where can I buy XP POWER JTD2024S12?
You can click on the BUY or RFQ button to purchase JTD2024S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JTD2024S12?
You can download the JTD2024S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JTD2024S12?
XP POWER
