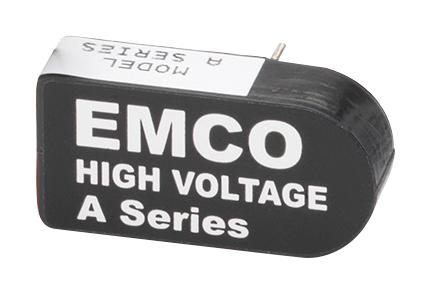

XP POWER AH02N12 High Voltage DC-DC Converter
The A Series ultra-miniature high-voltage DC-DC converters are designed for applications requiring extremely compact size and minimal weight. Operating from 0 to 24V DC, they deliver controllable output voltages from 100V up to 6000V with power options of 1W or 1.5W. Features include low ripple, EMI/RFI suppression, and a low turn-on voltage of less than 0.7V. They are ideal for precise, noise-sensitive environments, featuring galvanic isolation, low leakage current, and a proprietary encapsulation for high thermal and high voltage reliability.
XP POWER AH02N12 High Voltage DC-DC Converter Specifications:
- Output Voltage Range: 100V to 6000V
- Power Options: 1W, 1.5W
- Input Voltage Ranges: 0 to 5, 12, or 24VDC
- Turn-On Voltage: Less than 0.7VDC
- Maximum Input Current: <200mA at 5V, <25mA at 24V
- Isolation: +/- 500V bias on output return
- Input/Output Capacitance: Less than 250pF
- Leakage Current: Less than 100nA
- Operating Temperature: -25°C to +75°C (standard), -55°C to +85°C (extended option)
- Dimensions: 0.92L x 0.45W x 0.25H inches
- Weight: Less than 0.3 ounces
- ROHS Compliant, UL94V-0 Encapsulant
- Low ripple, EMI/RFI filtering
- Proprietary vacuum encapsulation for thermal and high voltage reliability
- Control Pin: High impedance for error/DAC or proportional control
- Full load efficiency with no minimum load required
- Built-in short circuit protection with > 1 million hours MTBF
Buy the Buy EMCO A Series High Voltage Converter Part Number AH02N12 Online
Purchase the EMCO A Series high voltage DC-DC converter AH02N12 online today for a compact, reliable power solution capable of generating up to 200V or more. Designed for high precision and low noise environments, this converter offers an efficient, small footprint alternative for applications needing controlled high voltage outputs ranging from 100V to 6000V. Its robust design features low ripple, EMI/RFI suppression, and a proprietary encapsulation process for excellent thermal and high voltage performance. Ideal for professionals seeking dependable high voltage generation with minimal size and maintenance.
Order your EMCO A Series high voltage converter AH02N12 today and ensure reliable, noise-free high voltage power for your precision applications.
Frequently Asked Questions
Where can I buy XP POWER AH02N12?
You can click on the BUY or RFQ button to purchase AH02N12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part AH02N12?
You can download the AH02N12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of AH02N12?
XP POWER
