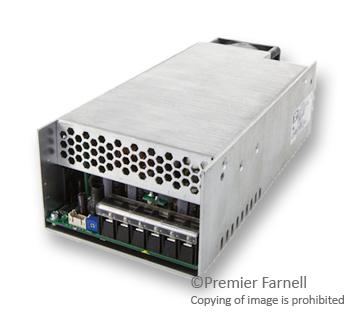

XP POWER SHP650PS48EF Industrial Power Supply
The SHP650 power supply offers up to 650 W in rugged, industrial designs, including end fan, top fan, and U-channel options. Operating from -40 °C to +70 °C with load-dependent variable speed fans for noise reduction, it features intelligent signals such as AC OK, remote on/off, and active current sharing. Its compact form factor and high efficiency make it suitable for demanding industrial environments, with compliance to SEMI F47, safety standards, and low earth leakage current. Fully protected, it ensures reliable operation in a variety of industrial applications with a 3-year warranty.
XP POWER SHP650PS48EF Industrial Power Supply Specifications:
- Output Power: Up to 650 W
- Main Output Voltage: 12-48 VDC
- Peripheral Outputs: 12 VDC fan supply, 5 VDC standby
- Operation Temperature Range: -40 °C to +70 °C with load-dependent fan control
- Cooling: Load dependent variable speed fan
- Construction Options: End fan, top fan, U-channel
- Safety Approvals: IEC60950 family, SEMI F47 compliance
- Efficiency: High efficiency as per figures 3 & 4
- Protection: Overtemperature shutdown, short circuit protection (auto hiccup mode), load sharing
- Dimensions: varies by model, approx. 8” x 4” x 2.6” (203 mm x 102 mm x 65 mm)
- Connectors: Screw terminals (M3.5, M4 screws), JST logic and power connectors
- Environmental: Suitable for demanding industrial environments including shocks and vibration standards
- Certification: UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN62368-1:2014/A11:2017, CE
- Warranty: 3 years
Buy the Industrial Power Supply Series 650W: SHP650PS48EF
Get the rugged and highly reliable industrial power supply with 650 W output, wide temperature operation from -40 °C to +70 °C, and load-dependent variable speed fans for noise reduction. Perfect for demanding environments, it features remote on/off, active current sharing, and multiple mechanical options including end fan, top fan, and U-channel. Compliant with safety and EMI standards, protected against overtemperature and short circuits, and backed by a three-year warranty. Purchase online now to ensure your industrial system has dependable power.
Order your industrial power supply series 650W SHP650PS48EF today and give your projects the dependable, rugged power they require.
