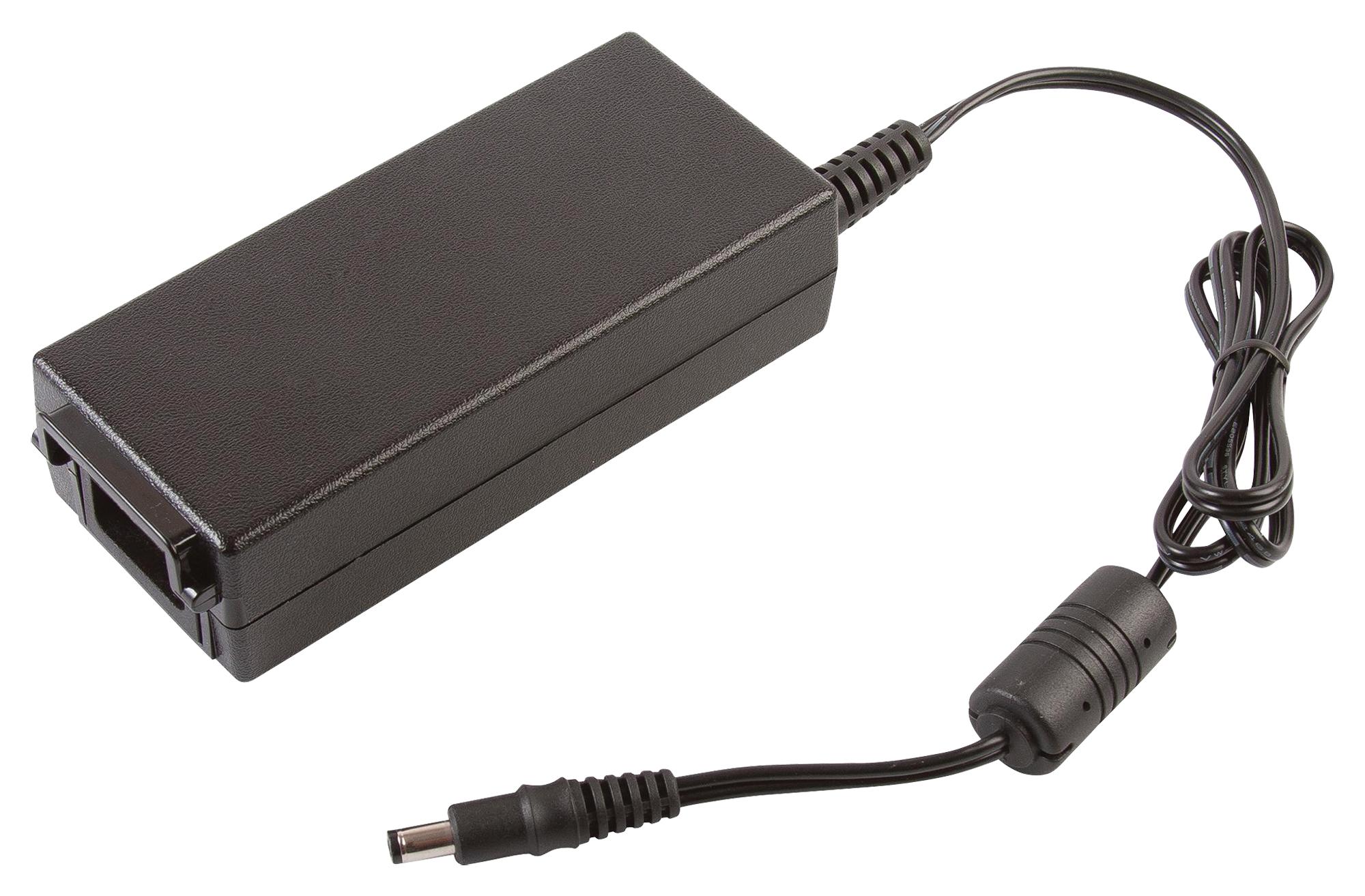

XP POWER ALM65US12C28 Medical Power Supply
The ALM65 series AC-DC power supplies deliver 65 watts of reliable power for medical and industrial applications. Designed with high efficiency, low standby power, and a fully sealed IP32 enclosure, these supplies meet international safety standards, providing stable output voltages, low ripple, and noise performance. Suitable for medical devices, IT equipment, and industrial equipment, they feature class I and II versions, a power density of 4.55 W/in³, and operate from 0°C to 60°C. They include safety certifications such as UL, TUV, and CSA, ensuring robust protection and compliance for sensitive electronic equipment.
XP POWER ALM65US12C28 Medical Power Supply Specifications:
- Power Output: 65 W
- Input Voltage: 90 VAC to 264 VAC, linearly derates from 100% to 80% load at 90VAC
- Output Voltage: Various models (12V, 24V, etc.)
- Efficiency: Typical 88%, up to 90% at full load
- Dimensions: 125.5 x 55.5 x 33.5 mm (4.94 x 2.19 x 1.32 inches)
- Protection: Overload, short circuit, and overvoltage protection
- Isolation: Input to Output 4000 VAC, Input to Ground 1500 V, Output to Ground 500 V (Class I)
- Switching Frequency: 65 KHz PWM
- Environment Rating: IP32, operation from 0°C to 60°C
- Certifications: UL 60601-1, EN 60601-1, CSA 60601-1, IEC 62368-1
- Weight: 0.68 lbs (308 g)
- Features: High efficiency, low standby power <0.21 W, medical safety approvals, low Earth leakage current
Buy the XP Power ALM65 – Reliable Medical Power Supply for Industrial Applications
Purchase the XP Power ALM65 series medical power supply online now to ensure your electronic devices receive reliable, efficient power. With high efficiency levels, low standby power consumption, and comprehensive safety certifications including UL, TUV, and CSA, this 65W power supply is ideal for medical, IT, and industrial equipment. Designed with a sealed IP32 enclosure, it offers excellent environmental protection and stable voltage output from 0°C to 60°C. Optimize your projects with this certified, durable power solution today.
Order your XP Power ALM65 series medical power supply today and ensure your devices operate with dependable, efficient power in professional environments.
