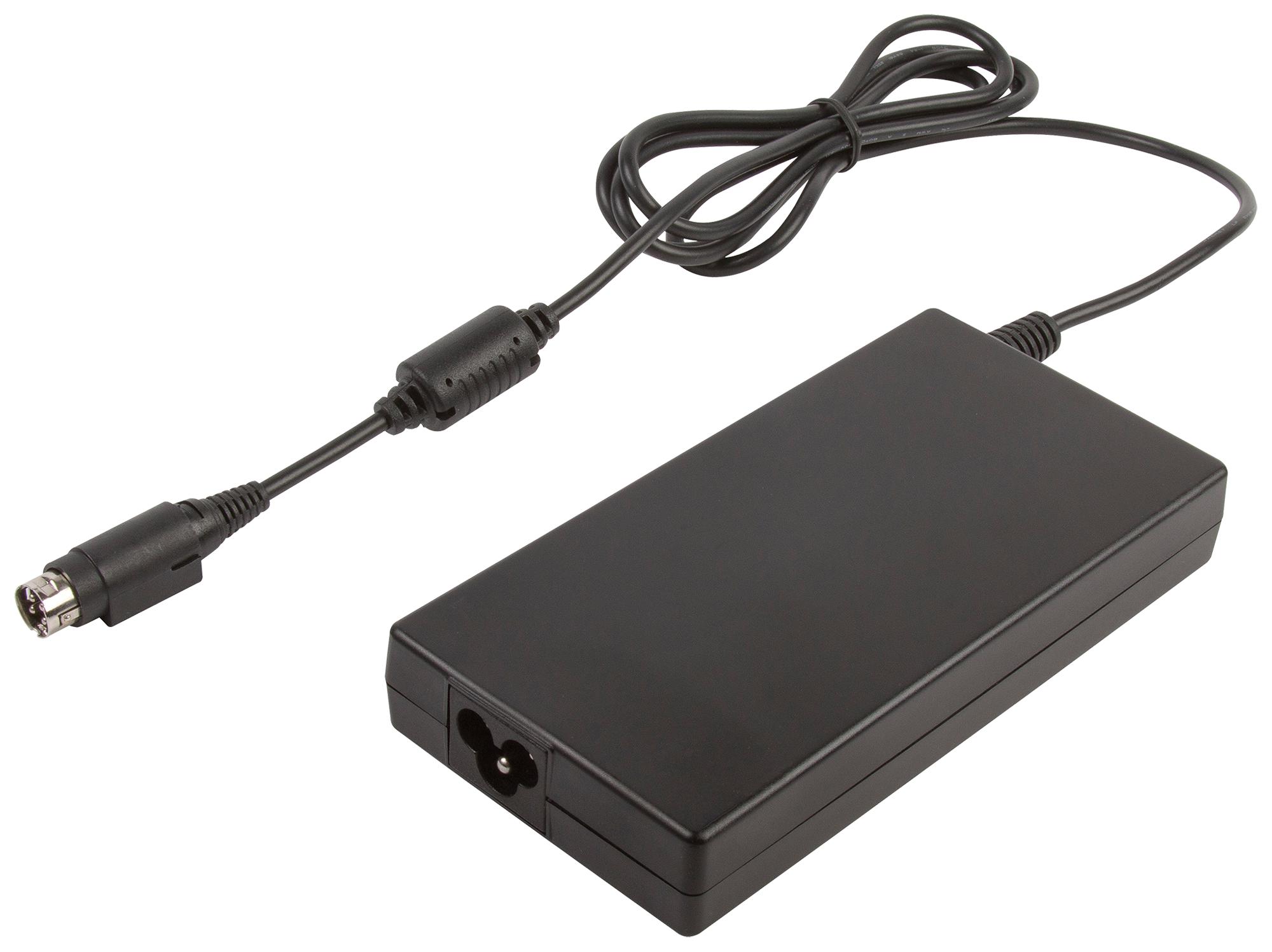

XP POWER AJM90PS24 90 Watt Power Supply
The XP POWER AJM90PS24 is a compact, high-performance 90-watt AC-DC power supply suitable for a wide range of medical and industrial applications. It delivers regulated output voltages of 12V, 18V, 19V, or 24V, with a wide input voltage range and high efficiency. The unit incorporates features such as low leakage current, energy efficiency level VI compliance, and medical safety approvals, making it ideal for demanding environments. It is backed by a 3-year warranty for added peace of mind.
XP POWER AJM90PS24 90 Watt Power Supply Specifications:
- Output Power: 90 W
- Output Voltage: 12.0 V, 18.0 V, 19.0 V, 24.0 V
- Output Current: 7.50 A, 5.00 A, 4.74 A, 3.75 A
- Total Regulation: ±5%
- Efficiency: 88%, 89%, 90%
- Input Voltage: 80-264 VAC
- Input Frequency: 47-63 Hz
- Input Current: 1.5/0.6 A
- Inrush Current: 60/100 A
- Power Factor: 0.9
- Earth Leakage Current: ≤250 µA
- No Load Input Power: ≤0.21 W
- Operating Temperature: 0 to +60 °C
- Cooling: Natural convection
- Dimensions: 5.51 x 2.8 x 0.87” (140.0 x 71.0 x 22.0 mm)
- Connector: Locking Power Mini DIN
- Weight: 0.77 lbs (350 g)
