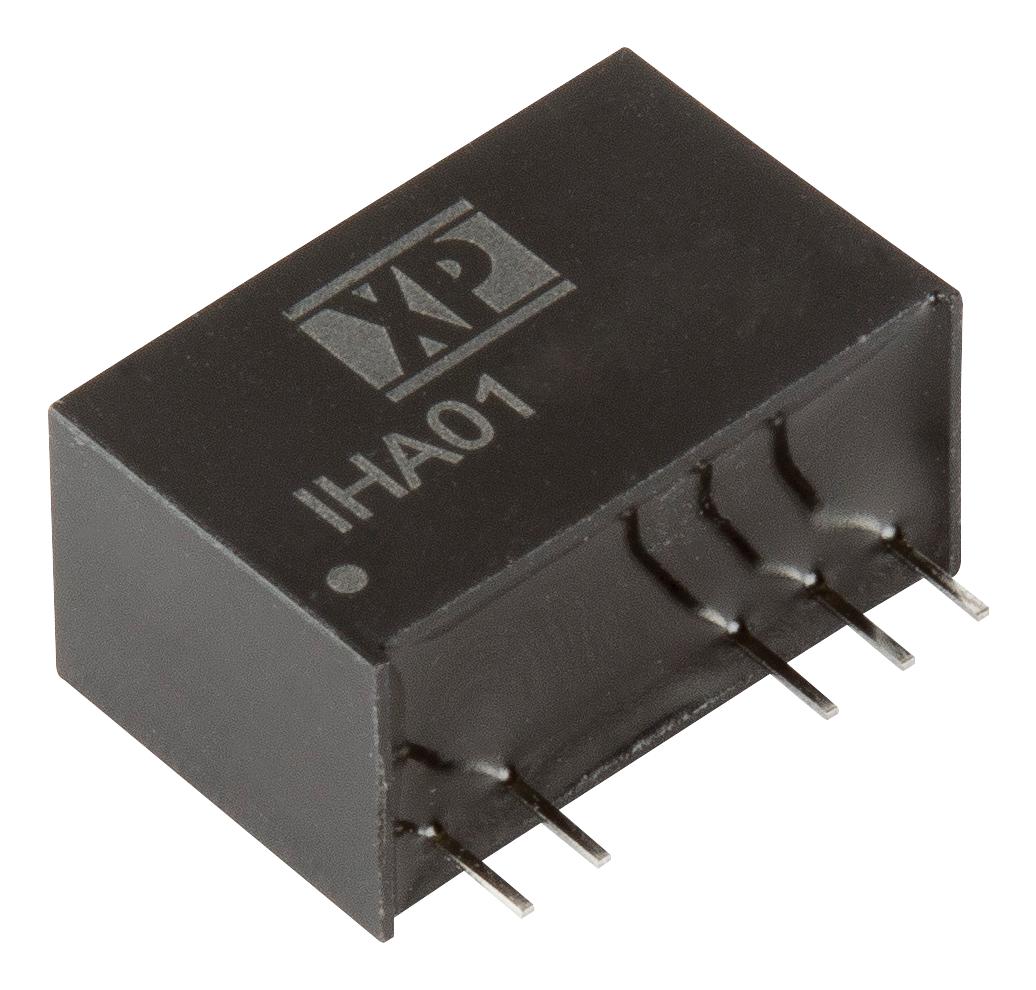

XP POWER IHA0112S3V3 DC-DC Converter
The IHA01 series is a 1W dual output DC to DC converter housed in a 7-pin SIP package. It features bipolar outputs suitable for MOSFET and IGBT drives, with high isolation of 6000VDC and a working voltage of 250VAC. The converter offers both single and dual outputs and can operate over a temperature range of -40°C to 85°C, delivering full load at 85°C ambient. Ideal for power management and industrial applications.
XP POWER IHA0112S3V3 DC-DC Converter Specifications:
- Power: 1 Watt
- Isolation Voltage: 6000 VDC
- Working Voltage: 250 VAC
- Input Voltage Range: 10.8-13.2V, 13.5-16.5V, 21.6-26.4V
- Temperature Range: -40°C to +85°C
- Case Dimensions: 0.77 x 0.39 x 0.49 inches (19.5 x 9.8 x 12.5 mm)
- Maximum Case Temperature: 100°C
- Efficiency: Up to specified ratings per model
- Operating Humidity: 25-35% RH
- Cooling: Natural convection
- MTBF: 2.5 million hours
- Warranty: 3 years
- Pin Pitch Tolerance: 0.014 inches (0.35 mm)
- Pin Diameter: 0.020 inches (0.05 mm)
Buy the XP Power IHAO1 – Reliable Power Modules for Industrial Applications
Purchase the XP Power IHAO1 series DC-DC converter online today and enjoy a reliable, high-performance power solution for industrial needs. This 1W converter offers high isolation of 6000VDC, bipolar outputs suitable for MOSFET and IGBT drives, and operates over a wide temperature range from -40°C to 85°C. Its compact SIP7 package makes it ideal for space-constrained applications. With a 3-year warranty, you can trust this converter to deliver consistent performance and durability in demanding environments. Order now and power your industrial systems with confidence.
Order your XP Power IHAO1 Series DC-DC Converter today and ensure reliable power delivery for your industrial projects.
Frequently Asked Questions
Where can I buy XP POWER IHA0112S3V3?
You can click on the BUY or RFQ button to purchase IHA0112S3V3 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHA0112S3V3?
You can download the IHA0112S3V3 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHA0112S3V3?
XP POWER
