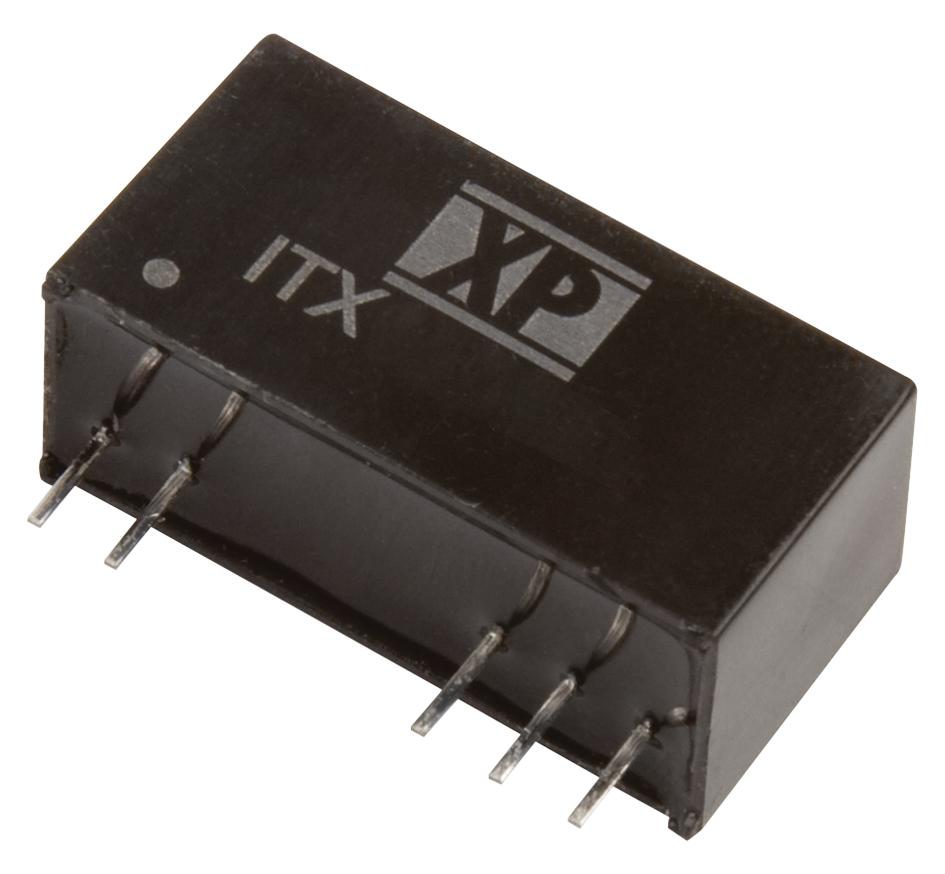

XP POWER ITX4805S DC-DC Converter
The ITX series is a compact 6W isolated DC-DC converter featuring a fully regulated single and dual output design. It offers a 2:1 input range, with 1500VDC isolation and is housed in a SIP8 plastic case. The converter operates efficiently over a temperature range from -40°C to 90°C. Suitable applications include sensing, instrumentation, and industrial systems. It supports remote control options and provides various output voltages up to 3.3V with load currents up to 2250mA, making it ideal for space-constrained, high-reliability environments.
XP POWER ITX4805S DC-DC Converter Specifications:
- Power: 6 Watts
- Input Voltage Range: 9 V to 36 V or 18 V to 75 V (depending on model)
- Output Voltage Options: 3.3V, 5V, or other specific voltages
- Output Current: up to 2250 mA depending on model
- Isolation Voltage: 1500 VDC standard, 3000 VDC option with suffix '-H'
- Operating Temperature Range: -40°C to +90°C
- Temperature Coefficient: 0.02%/°C
- Efficiency: up to 77%
- Case Material: SIP8 Plastic
- Dimensions: 0.86 x 0.44 x 0.36 inches (21.85 x 11.1 x 9.2 mm)
- Fixed switching frequency: ~15 MHz
- Isolation Resistance: 10 MΩ
- Thermal Management: Natural convection
Buy the XP Power Series ITX DC-DC Converter: ITX4805S
Get the XP Power ITX4805S DC-DC converter online today and benefit from a compact, high-efficiency solution with 1500VDC isolation. Perfect for industrial, sensing, and instrumentation systems, this 6-watt module supports multiple output voltages and features a SIP8 plastic case for easy integration. With operating temperatures from -40°C to 90°C, optional remote control, and high isolation voltage options, it ensures dependable power conversion in demanding environments. Order now for fast delivery and reliable performance.
Buy XP Power ITX4805S now and experience unmatched reliability and performance in space-constrained industrial applications.
