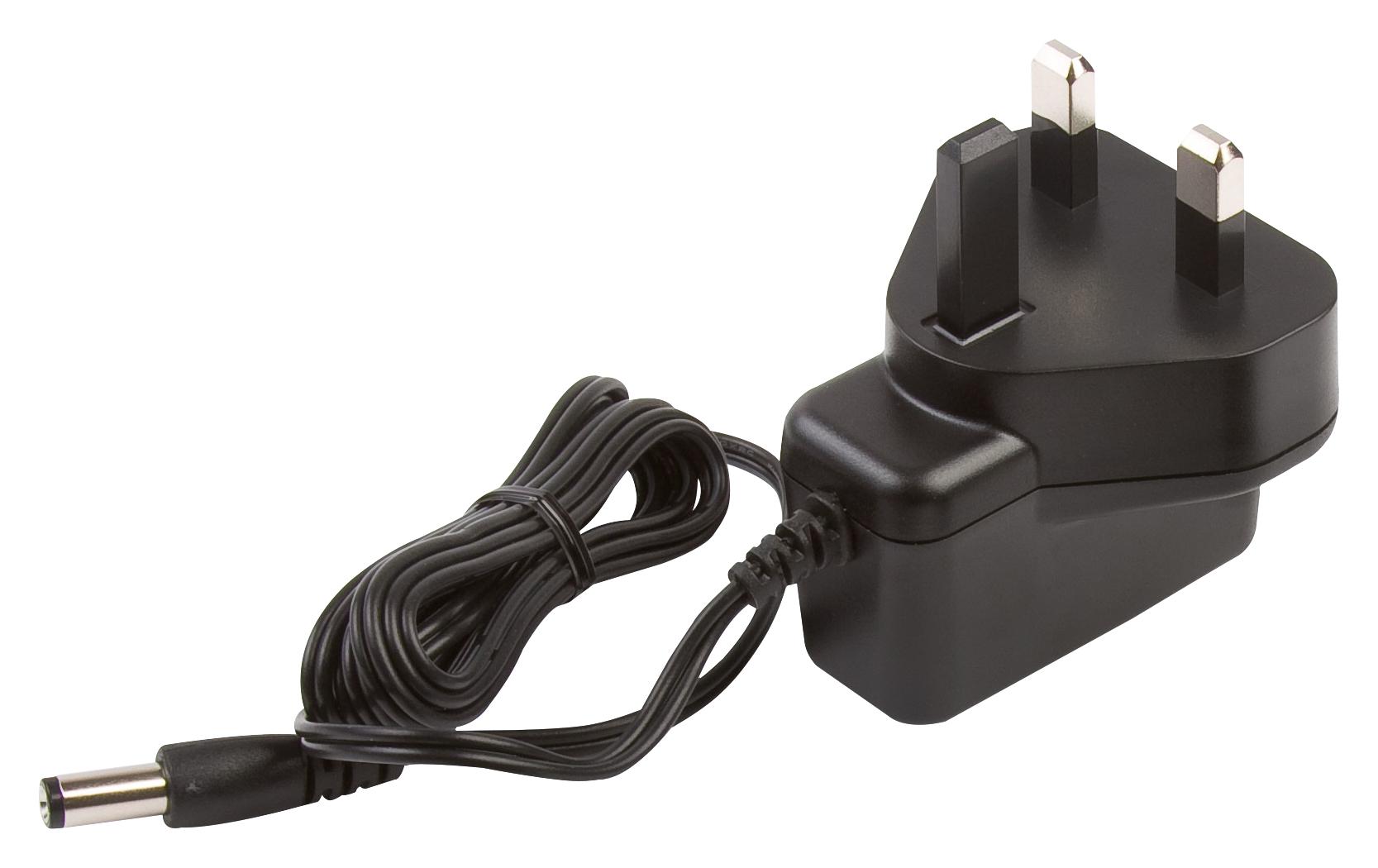

XP POWER VEL18US120UKJA Wall Plug Adapter
The VEL18 series wall plug adapters meet Energy Efficiency Level VI standards, featuring high active mode efficiency and very low no-load power consumption. These adapters are equipped with fixed mains connectors and a universal input range, making them suitable for a wide range of cost-sensitive applications. They comply with multiple safety standards, including UL/cUL60950-1, IEC60950-1, TUV EN60950-1, and CCC. The adapters have output voltages ranging from 9V to 24V, with a 5.5mm x 2.1mm x 12mm DC jack connector. They are designed with Class II construction and operate within a temperature range of 0°C to 60°C. Dimensions are 90mm x 49.5mm x 50mm. Typical applications include industrial and consumer electronic devices.
XP POWER VEL18US120UKJA Wall Plug Adapter Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 50-63 Hz
- Output Voltage Range: 9V to 24V
- Output Current: 750 mA to 2000 mA
- Efficiency: 85% at 25%, 50%, 75%, and 100% load
- Power Factor: Class A
- Isolation: 3000 VAC input to output
- Switching Frequency: 24-70 kHz variable
- Dimensions: 90mm x 49.5mm x 50mm
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Operating Humidity: 3% to 95% RH, non-condensing
- Protection: Internal T1.0A 250V fuse, short circuit, overvoltage, overcurrent
- Certifications: UL/cUL60950-1, IEC60950-1, TUV EN60950-1, CCC
Buy the Buy XP Power VEL18 Series AC-DC Power Supplies Part Number VEL18US120UKJA Online
Purchase the XP Power VEL18US120UKJA wall plug adapter online today. This energy-efficient, reliable power supply offers universal input, output voltages from 9V to 24V, and certified safety standards. Designed for industrial and consumer electronic applications, it ensures high performance with low no-load power consumption and robust protection features. Easy to install, compact in size, and suitable for a variety of cost-sensitive projects, this power supply guarantees dependable operation, helping you meet your project’s power requirements effortlessly and efficiently.
Order your XP Power VEL18US120UKJA series power supply today and ensure reliable performance for your industrial and electronic projects.
