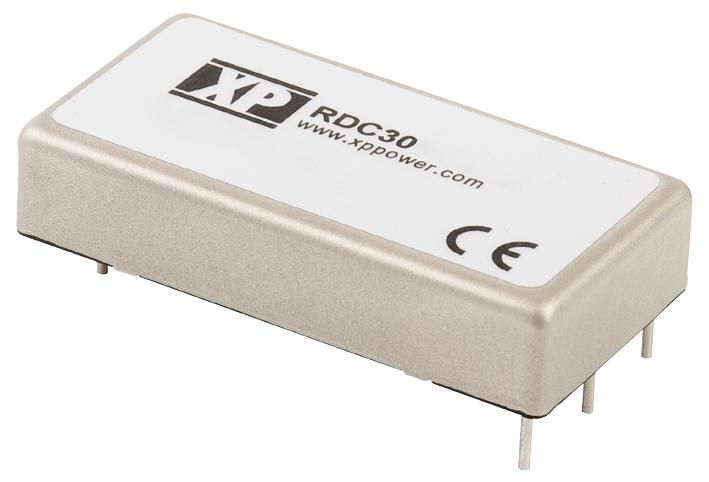

XP POWER RDC30110D15 Railway Power Converter
The RDC30 series converters are designed for railway applications and comply with the EN50121-3-2 EMC standard for rolling stock equipment. They are available with two wide input voltage ranges: 36V to 140VDC for 72VDC nominal models, and 55V to 176VDC for 110VDC nominal models. The series offers various output configurations, including single outputs of 3.3V, 5V, 12V, and 15V, dual outputs, as well as triple outputs that include 3.3V and 5V. These units provide basic isolation of 1500 VAC from input to output and 1600 VDC from output to case. They feature high efficiency up to 91%, remote On/Off control, and meet standards such as EN50155 and EN50121-3-2. Suitable for power management and industrial applications in railway environments.
XP POWER RDC30110D15 Railway Power Converter Specifications:
- Input Voltage Range: 36-140 VDC for 72V models, 55-176 VDC for 110V models
- Input Current: 20 mA pk-pk through 12 HH inductor
- Input Ripple: 150 VDC for 100 ms (72V models), 185 VDC for 100 ms (110V models)
- Output Voltages: 3.3V, 5V, 12V, 15V, dual and triple configurations
- Output Voltage Trim: 72V models ON 33.5 V, OFF 30.5 V; 110V models ON 52.5V, OFF 48.5V
- Efficiency: Up to 91%
- Isolation Voltage: 1500 VAC input to output, 1600 VDC input to case, 1600 VDC output to case
- Ripple & Noise: 400 mV or 1% pk-pk for single, 150 mV for dual, 50/75 mV for triple outputs
- Operating Temperature: -40°C to +75°C (up to 80°C with heatsink)
- Operating Humidity: 5-95% RH, non-condensing
- Safety & EMC: EN50155, EN50121-3-2, EN55011, EN61000-4 standards
- Switching Frequency: About 270 kHz
- Case Material: Nickel-coated copper, UL94V-0 rated non-conductive plastic
- Dimensions: Approx. 4.00 inches in length, pin diameter 0.04 inches, weight ~0.07 lbs
- Environmental Compliance: UL, CE, UKCA certifications
Buy the Power Supply Converter RDC30 – Reliable Railway Power Conversion for Industrial Applications
Purchase the RDC30 series railway power converters online today for dependable power solutions in industrial and transportation systems. These converters offer wide input voltage ranges of 36V to 176VDC, multiple output options including 3.3V, 5V, 12V, and 15V, and provide basic 1500 VAC isolation for safety and reliability. Designed to meet stringent standards such as EN50155 and EN50121-3-2, they feature up to 91% efficiency, remote On/Off control, and robust environmental resilience, making them ideal for critical railway and industrial power applications. Get yours now and experience reliable performance.
Order your Power Supply Converter RDC30 series today and ensure reliable railway power management with high efficiency and robust safety standards.
Frequently Asked Questions
Where can I buy XP POWER RDC30110D15?
You can click on the BUY or RFQ button to purchase RDC30110D15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part RDC30110D15?
You can download the RDC30110D15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of RDC30110D15?
XP POWER
