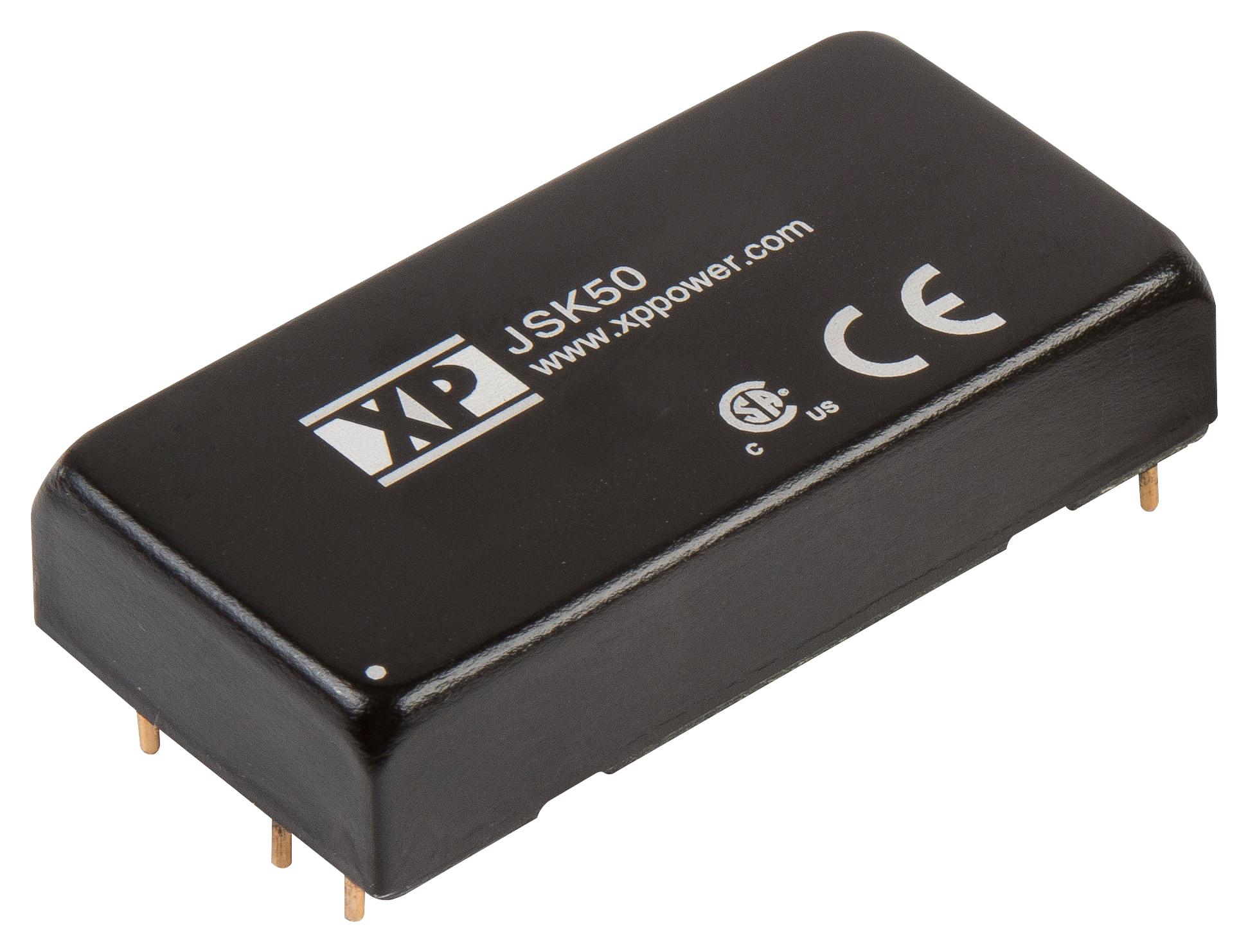

XP POWER JSK5012S05 DC Power Supply
The JSK50 series offers a compact, high-density power supply providing up to 50 Watts of output power. It features a wide 2:1 input voltage range suitable for 12V, 24V, and 48V DC applications. The series includes 15 different models with single outputs of 3.3V, 5V, 12V, 15V, or 24VDC, ensuring versatile power solutions. It complies with IEC 60950-1 and UL/cUL 60950-1 safety standards, meets Class A conducted emission requirements with external filtering, and supports an extended operating temperature range from -40°C to 105°C with some derating. The power supplies are designed with regulated single and dual outputs, feature a compact 2" x 1" metal package with six-sided casing for high power density, and include remote on/off control and 1500VDC isolation for safety and reliability. Suitable for power management and industrial applications.
XP POWER JSK5012S05 DC Power Supply Specifications:
- Power Output: 50 Watts
- Input Voltage Range: 8V to 36V at 24V nominal, 36V to 75V at 48V nominal
- Output Voltage: 3.3V, 5V, 12V, 15V, 24V
- Output Current: Varies per model
- Efficiency: Up to 90%
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to +105°C with derating
- Cooling: Natural convection
- Form Factor: 2" x 1" x 0.43" (50.8 x 25.4 x 11.0 mm)
- Case Material: Six-sided metal casing
- Remote On/Off: Yes
- Safety Approvals: UL60950-1, UL62368-1
- Features: High power density, optional heatsink, extended temperature operation, IEC safety compliance
Buy the XP Power JSK50 – Reliable Power Supply for Industrial Applications
Discover the XP Power JSK50 series, a compact and reliable power supply providing up to 50 Watts of output. Suitable for industrial and power management tasks, it features wide input voltage range, high efficiency, safety certifications, and extended temperature operation from -40°C to 105°C. Its high power density comes with six-sided metal casing and optional heatsink options, ensuring durability and effective heat dissipation. With remote on/off control and 1500VDC isolation, this unit guarantees safety and dependable performance for demanding industrial applications. Shop now for fast online delivery.
Get XP Power JSK50 today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy XP POWER JSK5012S05?
You can click on the BUY or RFQ button to purchase JSK5012S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JSK5012S05?
You can download the JSK5012S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JSK5012S05?
XP POWER
