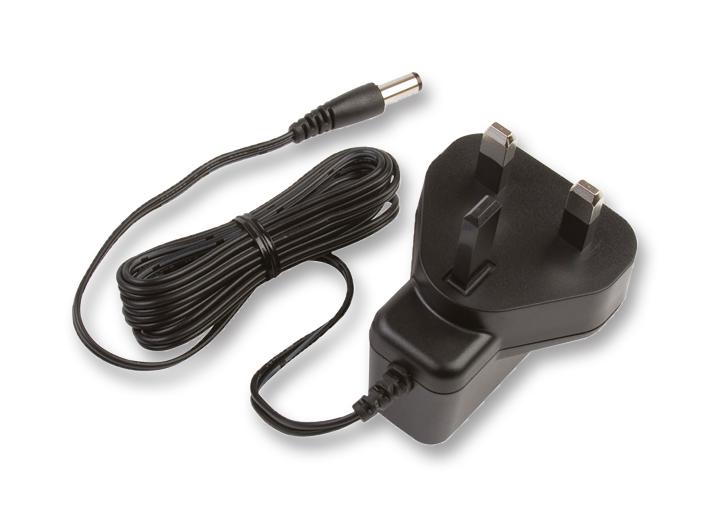

XP POWER VEL36US120UKJA Power Supply
The VEL36 series is a range of energy-efficient, 36-watt AC-DC power supplies designed for cost-sensitive applications requiring reliable, low-noise operation. These power supplies comply with the latest energy efficiency standards (Level VI) and feature universal input voltage, fixed mains connectors, and various output voltage options from 12 V to 24 V. Their compact design includes different models suitable for US, UK, and European mains plugs. They are ideal for industrial, automation, and control systems needing stable, regulated power with high efficiency and compliance standards.
XP POWER VEL36US120UKJA Power Supply Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 50-63 Hz
- Output Voltages: 12V, 15V, 18V, 24V
- Output Current: 3000 mA, 2400 mA, 2000 mA, 1500 mA respectively
- Total Regulation: 5%
- Efficiency: 87% at 25% to 100% load, 115 VAC input
- Isolation: 3000 V AC Input to Output
- Power Factor: EN61000-8-2, class A
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Cooling: Natural convection
- Certifications: UL/cUL, TUV EN60950-1, CCC China
- Vibration: 70-300 Hz, 2 g, 15 mins/sweep
- Shock: 1 meter drop onto concrete
- Sync Frequency: 24-70 kHz
- MTBF: 250,000 hours
Buy the Buy XP Power VEL36 Series Power Supply Part Number VEL36US120UKJA Online
Purchase the XP Power VEL36 series power supply online today for reliable, high-efficiency power delivery in industrial, automation, and control system applications. These 36-watt units feature universal input voltage, compliant with energy efficiency standards, and are available with different output voltages from 12V to 24V. Designed for cost-sensitive projects, they ensure stable performance with low no-load power consumption. Shop now for swift delivery and peace of mind from a trusted supplier, perfect for industrial and control system needs demanding durability and efficiency.
Get XP Power VEL36US120UKJA today—built for industrial reliability, high efficiency, and long-lasting durability.
