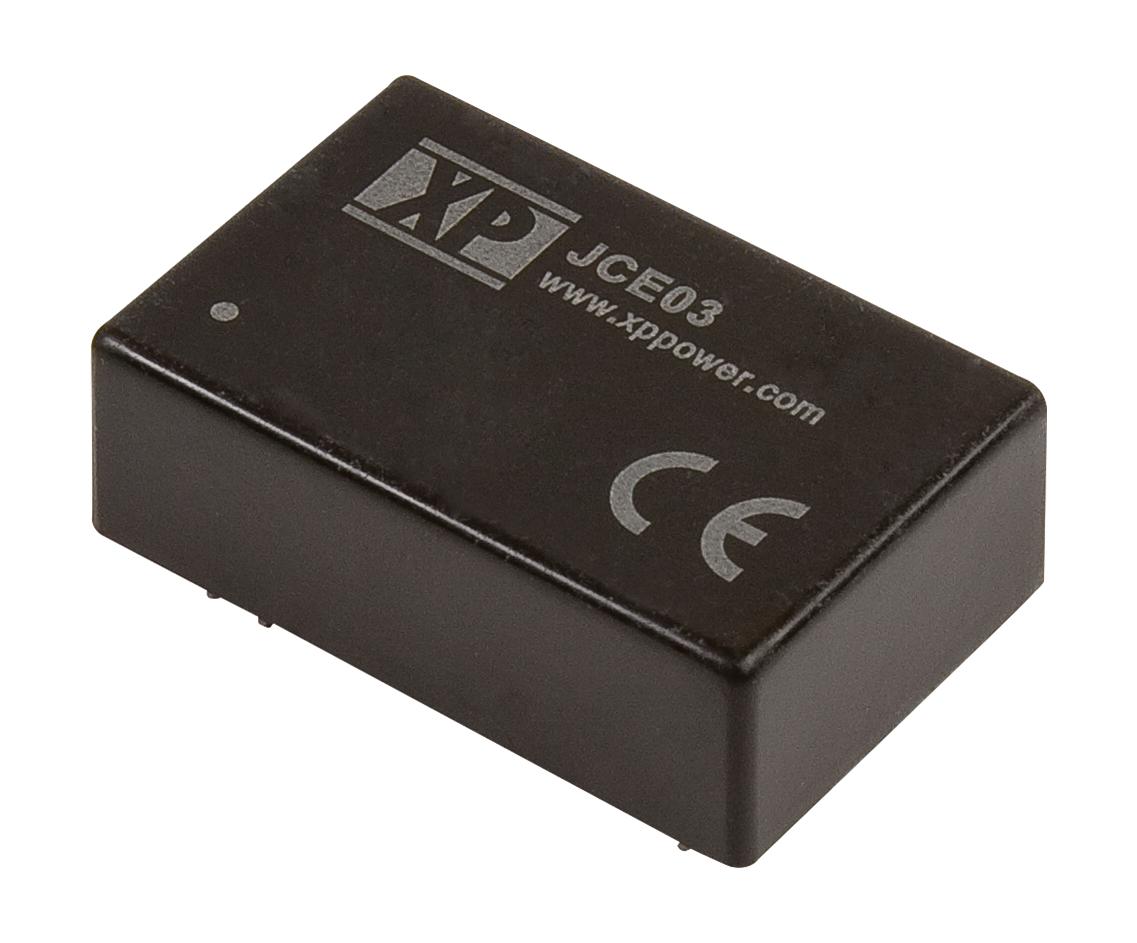

XP POWER JCE0312S24 DC-DC Converter
The JCE03 series is an isolated 3W DC-DC converter housed in an industry-standard DIP24 plastic case, offering fully regulated outputs. It features a 2:1 input voltage range, operating temperature from -40°C to 100°C, and 1500VDC isolation. Available with single or dual output configurations, this converter is suitable for sensing, instrumentation, automation, process control, safety applications, and industrial use. It provides high efficiency, no minimum load requirement, and robust isolation for demanding industrial environments, ensuring reliable power conversion in compact form factors.
XP POWER JCE0312S24 DC-DC Converter Specifications:
- Power: 3 Watts
- Input Voltage Range: 8V to 36V DC
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V
- Output Current: Up to 339 mA
- Isolation Voltage: 1500VDC (3000VDC optional with suffix '-H')
- Temperature Range: -40°C to +100°C
- Operating Temperature: -40°C to +100°C
- Storage Temperature: -55°C to +125°C
- Dimensions: 1.25 x 0.80 x 0.40 inches (31.75 x 20.32 x 10.16 mm)
- Fully Regulated Output: Yes
- No Minimum Load Required: Yes
- Efficiency: Up to 81%
- Input Reverse Polarity & Surges: Protected
- Isolation Resistance: 10^9 Ω
- Cooling: Natural convection
- Certifications: UL, CE, UKCA Compliant
- Safety Standards: UL 62868-1, CSA C22.2 No. 62368-1-14
- Switching Frequency: Approximately 330 kHz
Buy the XP Power JCE0312S24 – Reliable DC-DC Converter for Industrial Applications
Purchase the versatile XP Power DC-DC Converter JCE0312S24 online today to ensure reliable power conversion for sensing, instrumentation, process control, and automation applications. Designed with high efficiency, robust isolation, and a compact DIP24 plastic case, this 3-watt converter operates over a wide temperature range from -40°C to 100°C. It offers a 2:1 input voltage range, fully regulated outputs, and no minimum load requirement. Perfect for industrial settings demanding durable, safe, and consistent power solutions, it guarantees top performance and compliance with safety standards.
Get XP Power JCE0312S24 today—built for precision, robust isolation, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy XP POWER JCE0312S24?
You can click on the BUY or RFQ button to purchase JCE0312S24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JCE0312S24?
You can download the JCE0312S24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JCE0312S24?
XP POWER
