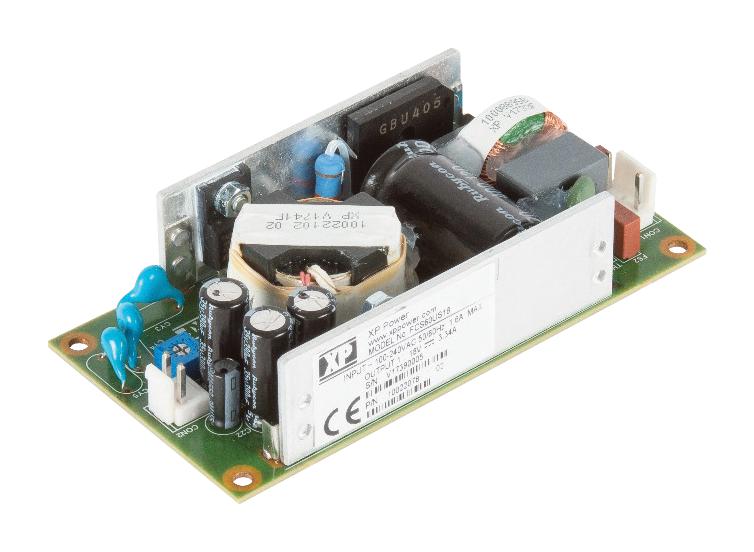

XP POWER FCS60US36 Power Supply
The FCS60 series is a compact, 60W AC-DC power supply designed for medical and industrial applications. With a low profile of just 1.04 inches and a footprint of 2 x 4 inches, it offers high efficiency, low no-load power consumption (<0.3W), and medical safety approvals. The series operates from 80 VAC, features low leakage currents, and is suitable for Class I and Class II installations. It provides reliable power with a power density of 72 W/in³, meeting stringent environmental and safety standards for medical and industrial equipment.
XP POWER FCS60US36 Power Supply Specifications:
- Power Rating: 60 Watts
- Input Voltage Range: 80 - 115/280 - 264 VAC
- Efficiency: Typically 85% at full load and 230 VAC
- No Load Power Consumption: Less than 0.3 W
- Output Voltage Options: 12 V, 15 V, 18 V, 24 V, 36 V, 48 V
- Operating Temperature: -25°C to +70°C derating curve applicable
- Dimensions: 2 inches x 4 inches x 1.04 inches (50.8 x 101.6 x 26.4 mm)
- Input Protection: Internal fuse per line and neutral
- Safety Standards: IEC 60950-1, IEC 62368-1, UL, CE, Medical safety approvals
- Isolation Voltage: Input to Output 4000 VAC, Input to Ground 1500 VAC
- Output to Ground: 500 V AC
- Environmental: Humidity 5-95% RH, altitude up to 5000 m
- Mechanical: Weight approximately 0.25 lbs (112 g)
- Certifications: UL, cUL, IEC61000 immunity standards, EMC compliant
Buy the XP Power Series FCS60 Power Supply: FCS60US36
Purchase the XP Power Series FCS60US36 power supply online today for reliable, high-efficiency performance in medical and industrial applications. With a compact footprint of 2 x 4 inches and a height of just 1.04 inches, this versatile power supply offers high power density, low no-load power consumption (<0.3W), and multiple safety approvals including medical standards. It is suitable for Class I and Class II installations, operates over a wide input voltage range from 80 VAC, and features internal fuses for safety. Order now to ensure your projects benefit from dependable and compliant power solutions.
Order your XP Power Series FCS60US36 power supply today and ensure reliable, efficient power for your medical or industrial equipment.
Frequently Asked Questions
Where can I buy XP POWER FCS60US36?
You can click on the BUY or RFQ button to purchase FCS60US36 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part FCS60US36?
You can download the FCS60US36 datasheet or visit the XP POWER website for support.
Who is the manufacturer of FCS60US36?
XP POWER
