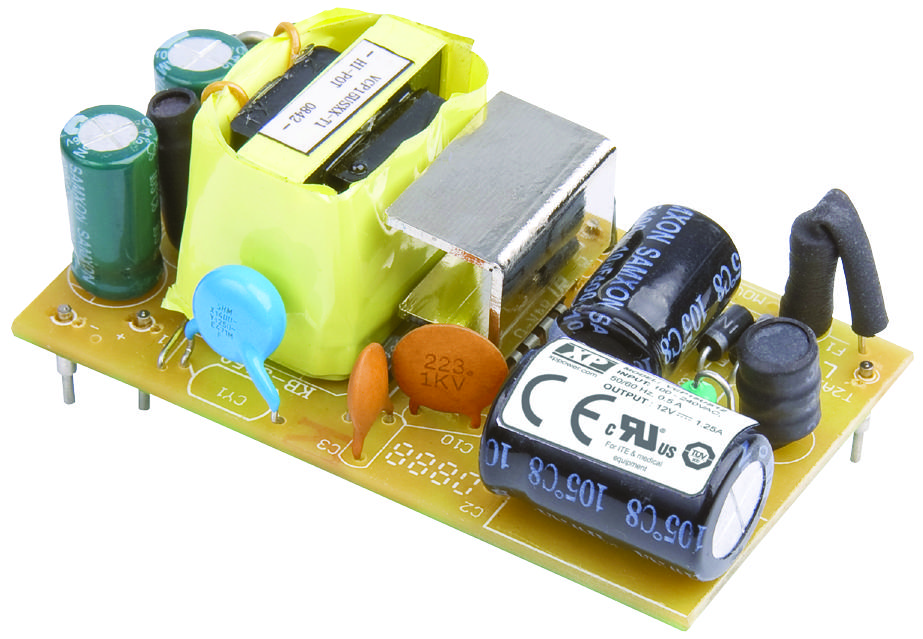

XP POWER VCP15US12 Power Supply
The power supply offers versatile output voltages from 5V to 24V, tailored for PCB mounting with open frame and encapsulated options. Certified for IT and medical uses, it includes Class II construction and low power consumption with no load input power below 0.3W. Designed for reliable performance, it withstands an operating temperature from 0°C to +70°C, features a 4000VAC isolation, and adheres to safety standards such as EN55032 and IEC60601-1. Ideal for medical devices, industrial equipment, and automation systems requiring high efficiency and safety compliance.
XP POWER VCP15US12 Power Supply Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 47-63 Hz
- Input Current: 0.5 A max at 90 VAC
- Inrush Current: 40 A max at 240 VAC, cold start at 25°C
- Power Factor: EN61000-3-2, class A
- No Load Input Power: <0.3 W
- Output Voltage: 5V, 12V, 15V, 24V (model dependent)
- Isolation: 4000VAC input to output
- Efficiency: See table (average at 25%, 50%, 75%, 100% load)
- Operating Temperature: 0°C to +70°C, derate from 50°C at 100% load to 50% at 70°C
- Cooling: Natural convection
- Operating Humidity: 5-90% RH, non-condensing
- Weight: Open frame approx. 0.09 lbs (40 g), encapsulated approx. 0.22 lbs (100 g)
- Regulation: Line <0.5%, Load <2%, transient recovery within 1%
- Protection: Overvoltage, overload, short circuit (hiccup mode)
- Standards & Safety: EN55032, IEC60601-1, UL, cUL, CE, UKCA
- Switching Frequency: 132 kHz typical
Buy the Power supply VCP15US12 – Reliable 12V Power for Industrial Applications
Purchase the VCP15US12 power supply online today for your industrial and medical projects. Designed for PCB mounting with open frame and encapsulated versions, it offers high efficiency, safety compliance, and versatile voltage options from 5V to 24V. Certified for critical systems, it features a 4000VAC isolation, low no-load power consumption, and reliable overcurrent and overvoltage protections. Ensure your equipment's safety and performance by choosing this trusted power solution, available now for quick and secure online ordering.
Order your Power supply VCP15US12 series today and ensure your medical devices and industrial systems operate with dependable, efficient power.
Frequently Asked Questions
Where can I buy XP POWER VCP15US12?
You can click on the BUY or RFQ button to purchase VCP15US12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VCP15US12?
You can download the VCP15US12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VCP15US12?
XP POWER
