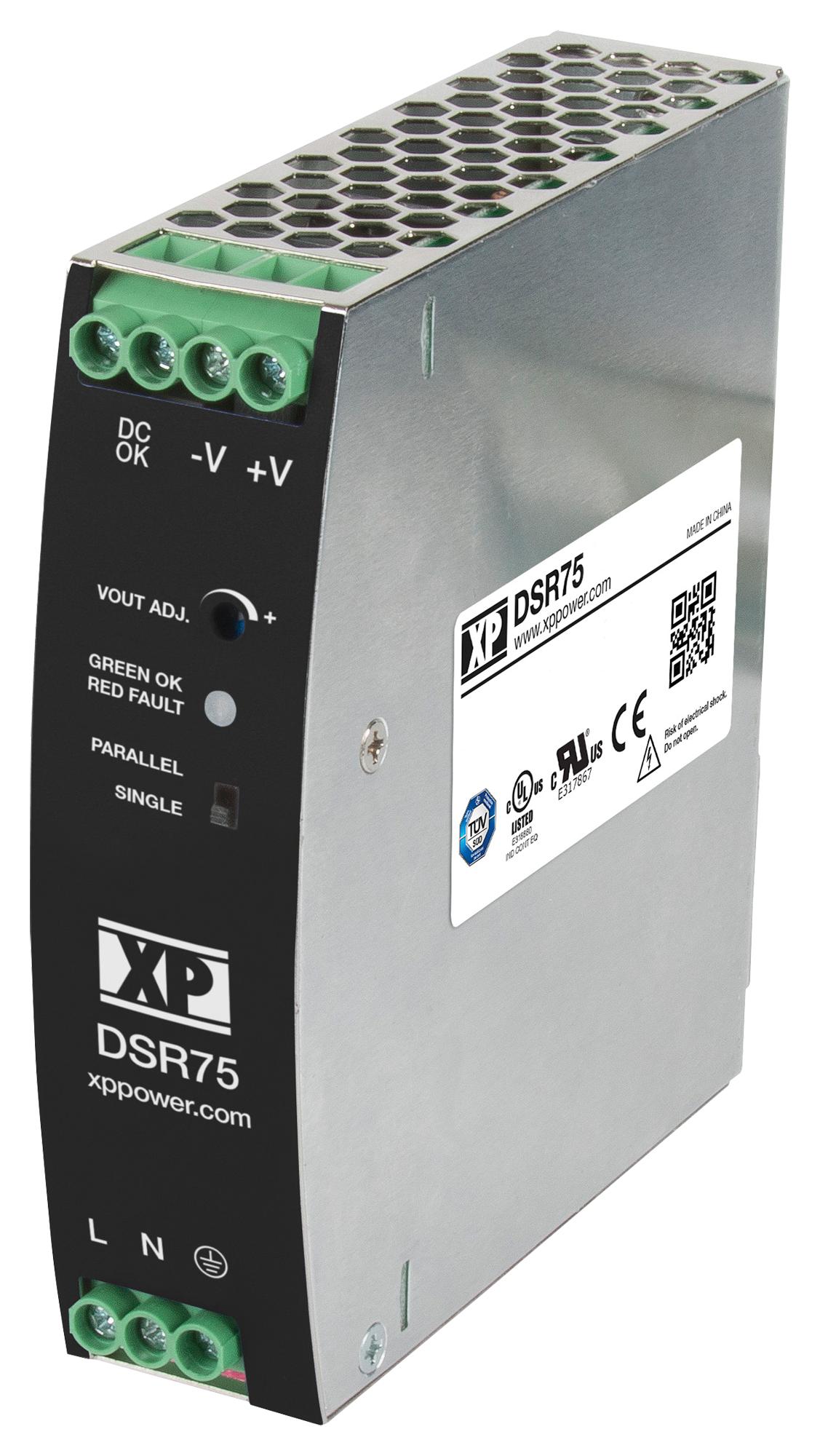

XP POWER DSR75PS24 Industrial Power Supply
The ultra-slim power supply delivers 75 watts with a 32 mm thickness, capable of peak loads up to 150% for 3 seconds. It operates efficiently across a wide temperature range from -25°C to +70°C and supports full load at 60°C. Featuring up to 91% efficiency, it offers a volt-free DC OK contact and enables selectable parallel operation. Designed for universal AC input from 85 to 264 VAC, this industrial power supply is ideal for compact and reliable power applications requiring high performance and flexibility.
XP POWER DSR75PS24 Industrial Power Supply Specifications:
- Power Output: 75W
- Output Voltage Options: 12V (12.0-14.0V), 24V (24.0-28.0V), 48V (48.0-56.0V)
- Dimensions: 1.26 x 4.88 x 4.69 inches (32.0 x 124.0 x 119.0 mm)
- Efficiency: Up to 91%
- Input Voltage Range: 85-264 VAC
- Operating Temperature: -25°C to +70°C, Full load at 60°C
- Peak Load Capability: 150% for 3 seconds
- Protection: Overload, Overvoltage, Short circuit
- AC Frequency: 50-60Hz
- Isolation: Input to Output 3000 VAC
- DC OK Contact: Volt-free, rated 60 VDC/0.3 A
- Cooling: Natural convection
- Weight: 1.06 lbs (480 g)
Buy the XP Power DSR75 Series – Reliable Power Supply for Industrial Applications
Order the DSR75 Series power supply online today to benefit from its ultra-slim design, high efficiency up to 91%, and robust performance across wide temperature ranges. Perfect for compact industrial systems, it offers selectable parallel operation, volt-free DC OK signaling, and peak load handling up to 150% for 3 seconds. Easy to install and maintain, this power supply ensures reliable operation and enhances your system’s performance with its global AC input support and comprehensive protection features.
Buy XP Power DSR75PS24 now and experience unmatched reliability and performance with high efficiency and peak load capabilities.
