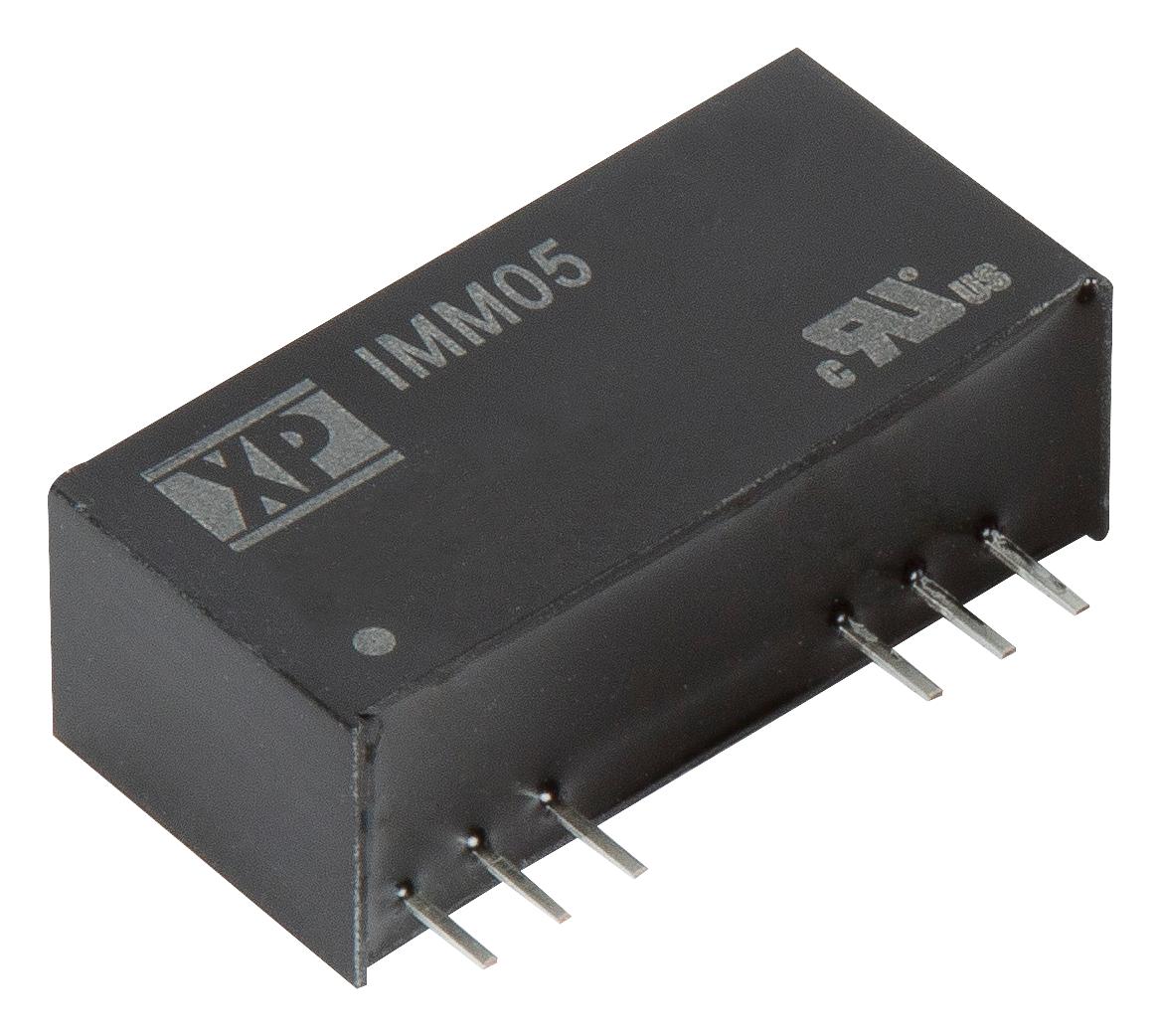

XP POWER IMM0505D12 Medical DC-DC Converter
The IMM05 series of DC-DC converters provides a compact 5W power solution with galvanic isolation between input and output, suitable for medical BF and CF applications. Features include regulated single and dual outputs ranging from 3.3VDC to ±15VDC, a 2:1 input voltage range, and an ultra-compact SIP9 package. The converters offer 1500VAC isolation, 1 x MOPP at 250VAC, remote On/Off control, and operate over a temperature range of -40°C to +100°C, with full load capability up to +60°C. Certified for worldwide medical standards.
XP POWER IMM0505D12 Medical DC-DC Converter Specifications:
- Power Output: 5 Watts
- Input Voltage Range: 4.5-9.0V, 9-18V, 18-36V, 36-75V
- Output Voltage: 3.3VDC, 5VDC, 12VDC, 15VDC, ±12V, ±15V
- Output Current: Up to 2A at minimum voltages, substantially higher at lower outputs
- Isolation Voltage: 1500 VAC
- Isolation Type: Galvanic isolation with basic insulation
- Operating Temperature Range: -40°C to +100°C
- Full Load Temperature: Up to +60°C
- Dimensions: 1.02 x 0.36 x 0.49 inches (26.0 x 9.3 x 12.5 mm)
- Package: SIP9 ultra-compact package
- Remote On/Off: Yes, control via remote switch
- Certifications: Worldwide medical certifications (ISO 13485, UL, IEC/EN 60601-1)
Buy the Buy XP Power IMM0505D12 Part Number IMM0505D12 Online
Purchase the XP Power IMM0505D12 online today. This high-quality, medical-grade 5W DC-DC converter features galvanic isolation of 1500VAC, regulated outputs from 3.3V to 15V, remote On/Off control, and operates over a wide temperature range. Its ultra-compact SIP9 package makes it ideal for space-constrained medical and industrial applications. Certified to meet global medical safety standards, the IMM0505D12 ensures reliable, long-lasting performance and durability for demanding environments. Order now to ensure your medical devices stay compliant and efficient.
Get XP Power IMM0505D12 today—compact, medical-grade DC-DC converter with 1500VAC isolation and remote control for reliable performance.
Frequently Asked Questions
Where can I buy XP POWER IMM0505D12?
You can click on the BUY or RFQ button to purchase IMM0505D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMM0505D12?
You can download the IMM0505D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMM0505D12?
XP POWER
