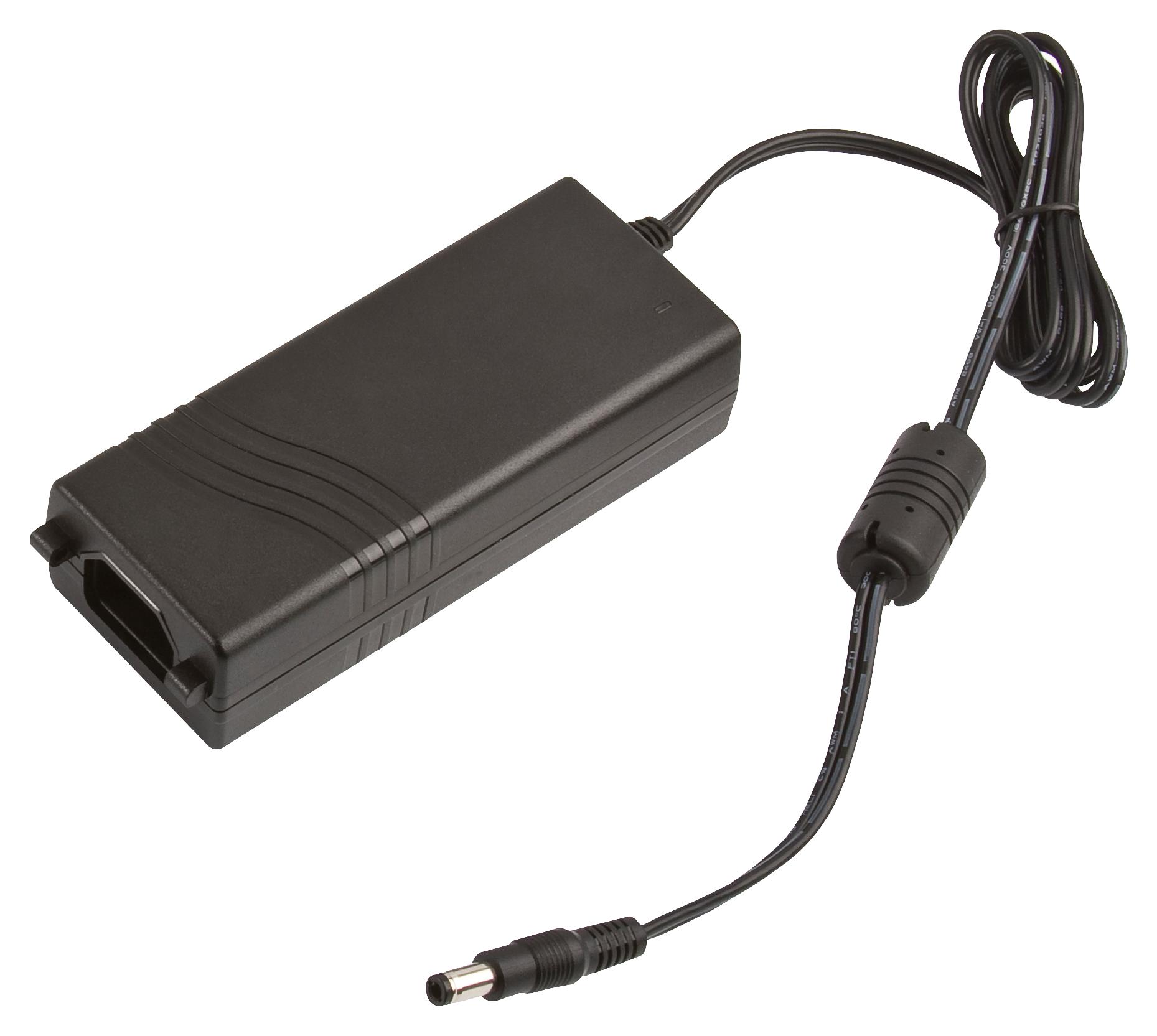

XP POWER AKM65US18 medical power supply
The AKM65 Series power supply provides reliable 65W output with high efficiency up to 90.9%, suitable for medical, healthcare, and industrial applications. It features input voltage from 80 to 264VAC, a compact dimension of 4.92” x 2.45
XP POWER AKM65US18 medical power supply Specifications:
- Input Voltage: 80 to 264VAC
- Output Power: 65W
- Output Voltage: from 12V to 48V
- Operating Temperature: 0°C to +60°C
- Dimensions: 4.92” x 2.45” x 1.34” (125.0 x 62.3 x 34.0mm)
- Efficiency: up to 90.9%
- Isolation: Input to Output 4000 VAC
- Leakage Current: 400 HA
- Switching Frequency: 24–70 kHz
- Operating Humidity: 5% to 90%
- Minimum Load: 0 A
- Start-Up Delay: 4 s
- Ripple and Noise: 200 mV pk-pk
- Overload Protection: 130–160%
- Short Circuit Protection: Auto recovery in hiccup mode
- Certifications: UL 62368-1, IEC60601-1-11, CSA C22.2, EN60601-1
Buy the XP Power Series AKM65 Medical Power Supply: AKM65US18
Experience the reliable performance of the XP Power AKM65 series power supplies, delivering 65W of power with high efficiency up to 90.9%. Designed for medical, healthcare, and industrial applications, these adaptable units operate within 80-264VAC input voltage range. Compact dimensions of 4.92 inches by 2.45 inches by 1.34 inches make them ideal for space-constrained environments. Certified for medical and IT standards, offering low no-load power consumption and excellent electromagnetic compatibility. Invest in durable, industry-leading power solutions for critical systems.
Get XP Power AKM65US18 today—built for medical and industrial applications with high efficiency and reliable performance.
Frequently Asked Questions
Where can I buy XP POWER AKM65US18?
You can click on the BUY or RFQ button to purchase AKM65US18 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part AKM65US18?
You can download the AKM65US18 datasheet or visit the XP POWER website for support.
Who is the manufacturer of AKM65US18?
XP POWER
