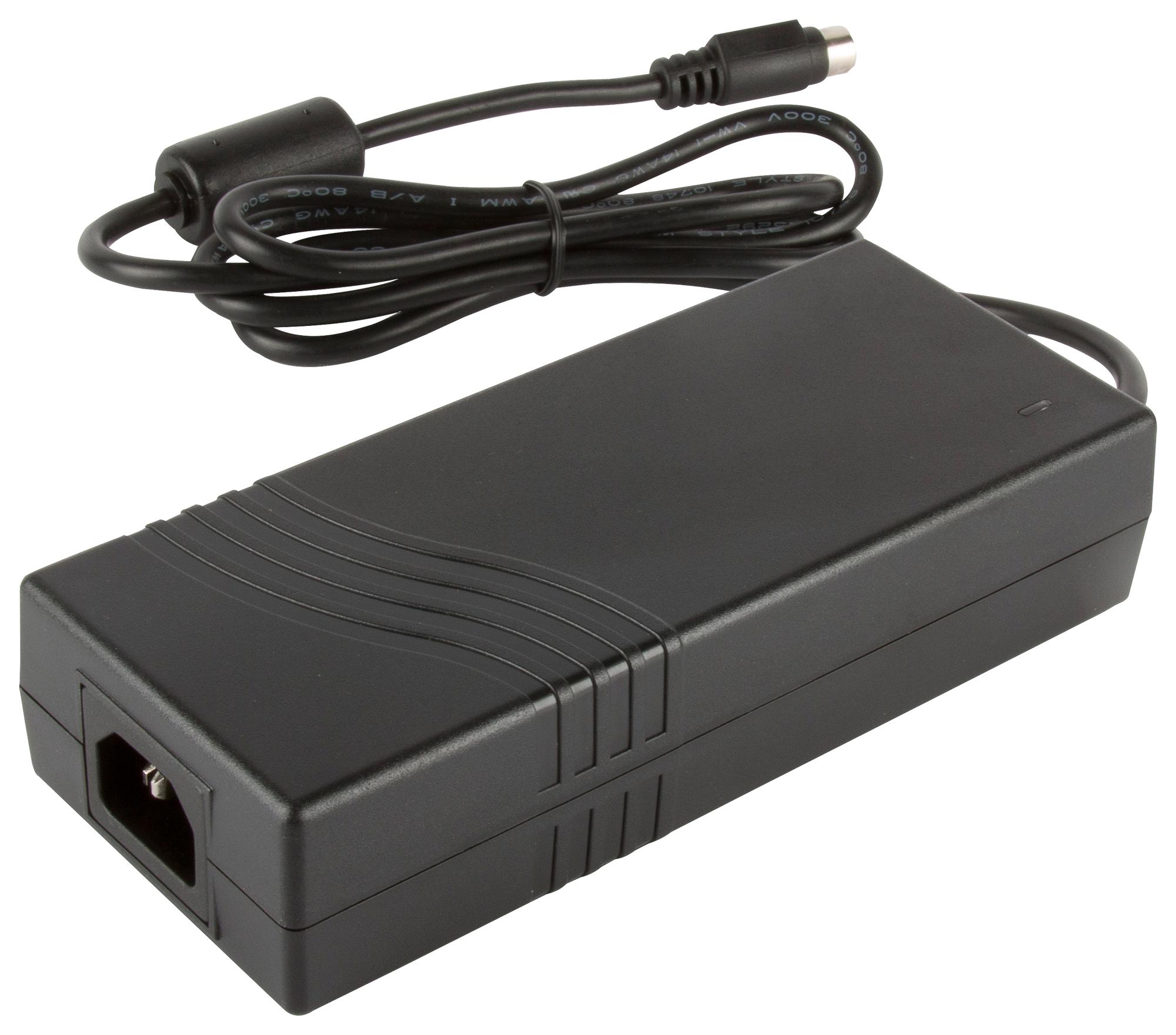

XP POWER VES300PS24 Power Supply
This power supply features energy efficiency Level VI and high power density design. It provides single output voltages ranging from 19V to 48V and consumes up to 0.15W in standby mode. The product is China Compulsory Certification (CCC) certified and capable of operating in ambient temperatures from -10°C to 60°C. Its compact size measures approximately 7.77 x 3.5 x 1.53 inches, with a weight of about 2.95 pounds. Suitable for industrial and commercial applications requiring reliable, energy-efficient power conversion.
XP POWER VES300PS24 Power Supply Specifications:
- Input Voltage: 90-264 VAC at 50/60 Hz
- Output Voltage: 19.0V, 24.0V, 48.0V
- Output Current: 15.798A, 12.508A, 6.254A
- Efficiency: 91-92%
- Power: 300 Watts
- Standby Power Consumption: <0.15W
- Dimensions: 7.77 x 3.5 x 1.53 inches (197.4 x 88.9 x 39.0 mm)
- Weight: approximately 2.95 lbs (1340 g)
- Operating Temperature Range: -10°C to 60°C
- Isolation: Input to Output 3000 VAC; Input to Ground 1500 VAC
- Protection Features: Overload, Overvoltage, Short Circuit
- Certifications: CCC, UL62368-1, EN62368-1, cB IEC62368-1
- Input Protection: T6.3A/250VAC fuse
- Cooling: Natural convection
- Vibration Resistance: 10-300 Hz, 2g
Buy the Buy XP Power VES300 Power Supply Part Number VES300PS24 Online
Order the XP Power VES300 power supply today for reliable, high efficiency operation with a wide output voltage range of 19V to 48V. Designed with energy efficiency Level VI, it ensures minimal standby power consumption, making it suitable for industrial and commercial environments. Its compact size of 7.77 x 3.5 x 1.53 inches and lightweight design (2.95 lbs) allow for easy integration into various systems. Certified with CCC, UL, and EN standards, this power supply offers robust protection features, ensuring safety and durability for demanding applications.
Get XP Power VES300PS24 today—built for industrial reliability, high efficiency, and long-lasting durability.
