XP POWER DTE0624S48 DC-DC Converter

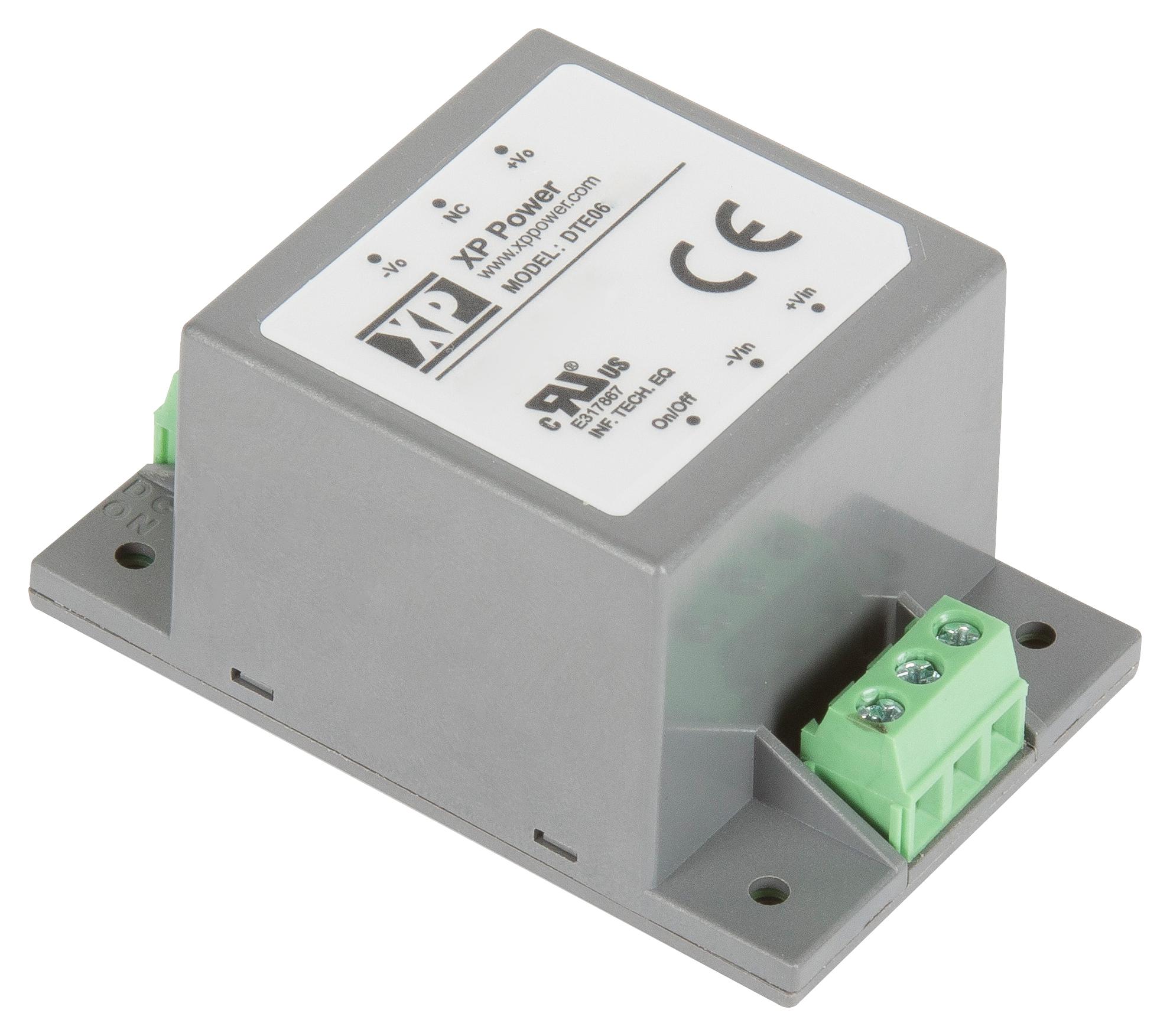

The DTE0624S48 is a 6W encapsulated DC-DC converter designed for industrial and commercial applications. It offers fully regulated single and dual outputs from 5VDC to 48VDC with a wide 4:1 input range, ensuring reliable performance in demanding environments. The module features a rugged, fully encapsulated chassis with optional DIN rail mounting, screw terminals for easy connection, and a power good LED. It provides 3kVDC isolation, remote on/off, and protection against input undervoltage, short circuit, and overload conditions, operating across -40°C to +105°C for versatile industrial use.
XP POWER DTE0624S48 DC-DC Converter Specifications:
- Input Voltage Range: 5V to 48VDC with wide 4:1 input ratio
- Output Voltage: 5.1V, 12V, 15V, 24V, 48V (various models)
- Output Current: Up to 1.20A depending on model
- Efficiency: Up to 85%
- Isolation Voltage: 3kVDC input/output
- Operating Temperature: -40°C to +105°C
- Dimensions: 2.09 x 1.34 x 1.04 inches (53.0 x 34.0 x 26.5 mm)
- Protection: Overload, short circuit, input undervoltage
- Mounting: Chassis or optional DIN rail
- Safety Approvals: IEC/UL/cUL62368-1, EN55032 class A
- Other Features: Remote on/off, LED power indicator, screw terminals
- MTBF: >4 million hours
- Warranty: 3 years
Buy the Buy XP Power DTEO6 Series DC-DC Converter Part Number DTE0624S48 Online
Purchase the XP Power DTE0624S48 today and benefit from a rugged 6W encapsulated DC-DC converter with wide input range, 3kVDC isolation, remote control, and comprehensive protection features suitable for demanding industrial environments. Its compact design, easy screw terminal connection, and robust construction make it an ideal choice for reliable power supply in various applications. Enjoy quick online ordering, fast delivery, and the confidence of quality and safety standards compliance for your critical projects.
Order your XP Power DTE0624S48 versatile DC-DC converter today and ensure reliable power conversion with industrial-grade features and wide temperature operation.
Frequently Asked Questions
Where can I buy XP POWER DTE0624S48?
You can click on the BUY or RFQ button to purchase DTE0624S48 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DTE0624S48?
You can download the DTE0624S48 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DTE0624S48?
XP POWER
