XP POWER JWE0824S05 High Power Density DC-DC Converter
The JWE0824S05 is an 8W high power density DC-DC converter designed for versatile power applications with single and dual outputs. It features an ultra-wide input voltage range of 9V to 36V for 24V models and 18V to 75V for 48V versions, accommodating varied power sources. Encased in a compact DIP16 package measuring 0.94 x 0.54 x 0.31 inches, it offers outputs at 5V with up to 405 mA current. The module is certified with UL 60950-1 safety standards, provides 1500VDC isolation, and operates reliably from -40°C to 105°C. Its high efficiency of 82% and compliance with conducted emission standards (EN55022 Class A) make it suitable for industrial, automation, and power management applications, with excellent thermal performance and robust isolation features.
XP POWER JWE0824S05 High Power Density DC-DC Converter Specifications:
- Input Voltage Range: 9V to 36V for 24V input models, 18V to 75V for 48V input models
- Output Voltage: 5V, Output Current Max.: 405 mA
- Output Load Capacitance: 680 UF
- Efficiency: 82%
- Isolation: 1500VDC
- Operating Temperature: -40°C to +105°C
- Dimensions: 0.94 x 0.54 x 0.31 inches (23.8 x 13.7 x 8 mm)
- Package Type: DIP16
- Certifications: UL 60950-1, EN55022 Class A compliance
- Housing Material: Metal case rated UL 94V-0

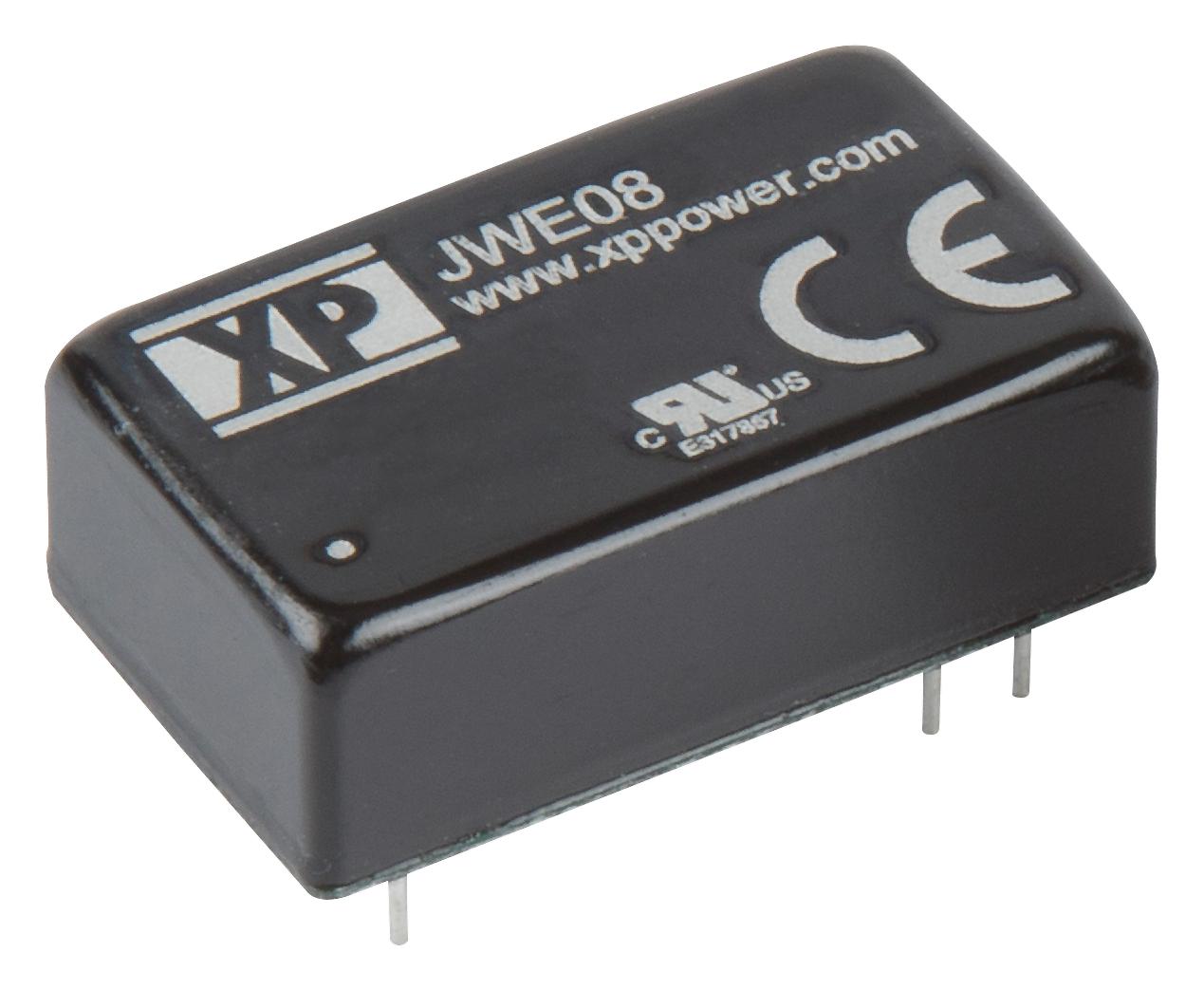

Buy the Buy XP Power DC-DC Converter Part Number JWE0824S05 Online
Order the XP Power JWE0824S05 DC-DC converter online now and benefit from its high efficiency, wide input range, and compact size ideal for industrial applications. This 8W power module features 1500VDC isolation, UL safety certification, and operates reliably from -40°C to 105°C. Its robust metal case ensures durability, while its minimal footprint makes integration easy. Suitable for power supplies, automation, and industrial control systems, this converter delivers consistent performance across varying load conditions and ensures safety compliance, making it an excellent choice for your power conversion needs.
Get XP Power JWE0824S05 today—built for high efficiency, reliable isolation, and compact design for power management solutions.
Frequently Asked Questions
Where can I buy XP POWER JWE0824S05?
You can click on the BUY or RFQ button to purchase JWE0824S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JWE0824S05?
You can download the JWE0824S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JWE0824S05?
XP POWER
