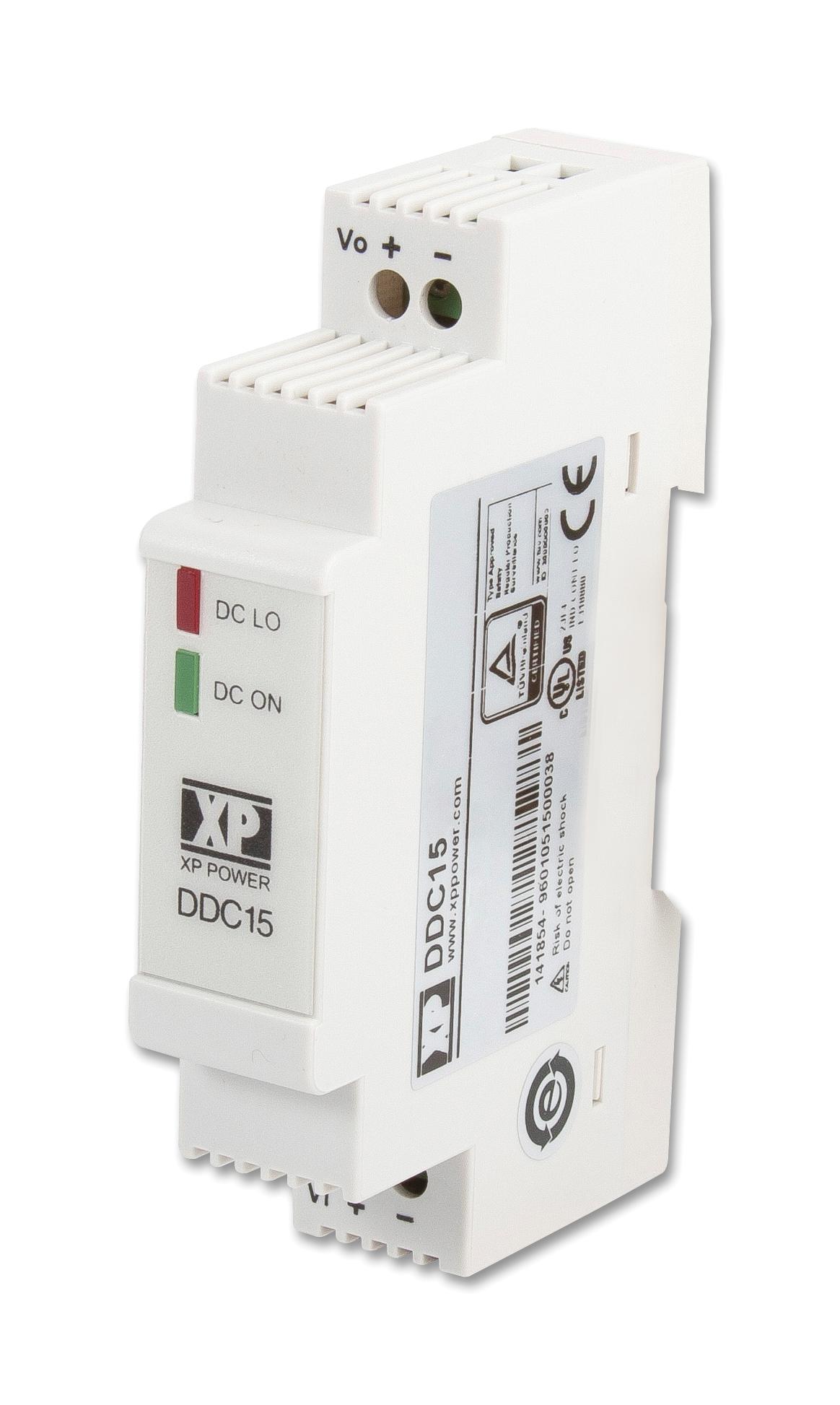

XP POWER DDC1524S24 DC Power Module
The DDC series from XP Power provides compact, DIN Rail-mounted DC/DC converters designed for industrial applications. With a 4:1 wide input range of 9-36 VDC, these converters offer adjustable output voltages between 5V and 24V, supporting variable loads up to 15 Watts. Featuring high efficiency up to 85%, 1500 VDC isolation, low profile design, and operation from -40°C to +70°C, they accommodate noise immunity and battery-powered systems. Ideal for industrial automation, control systems, and structured power distribution networks, these rugged and reliable modules ensure consistent performance in demanding environments.
XP POWER DDC1524S24 DC Power Module Specifications:
- Input Voltage Range: 9-36 VDC
- Output Voltage: 5V to 24V (adjustable)
- Output Power: 15 Watts
- Output Current: 0.76 A to 1.9 A depending on model
- Efficiency: Up to 85%
- Isolation: 1500 VDC
- Dimensions: 0.71 x 3.58 x 2.22 inches (18.0 x 91.0 x 56.5 mm)
- Operating Temperature: -40°C to +70°C
- Ripple & Noise: 100 mV peak-to-peak
- Switching Frequency: 150-300 kHz
- Protection: Overvoltage, Overload, Short Circuit, Automatic Recovery
- Certifications: UL, cUL, EN standards
- Thermal Dissipation: Natural convection
- Humidity Range: 5-95% RH, non-condensing
Buy the XP Power Series DDC: 15 Watts Power Supplies
Shop the XP Power Series DDC15 DC-DC power supply online now to enjoy reliable and efficient power conversion for industrial automation, control systems, and structured power distribution. With a compact DIN Rail design, wide input range of 9-36 VDC, adjustable outputs from 5V to 24V, high efficiency up to 85%, and rugged construction, this module guarantees stable operation in demanding environments. Easy to install and universally compatible, it's the perfect choice for engineers seeking robust power solutions with proven safety and certification standards. Buy today for fast, secure delivery.
Order your XP Power Series DDC15 power supply today and ensure reliable, efficient power for your industrial control and automation projects.
Frequently Asked Questions
Where can I buy XP POWER DDC1524S24?
You can click on the BUY or RFQ button to purchase DDC1524S24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DDC1524S24?
You can download the DDC1524S24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DDC1524S24?
XP POWER
