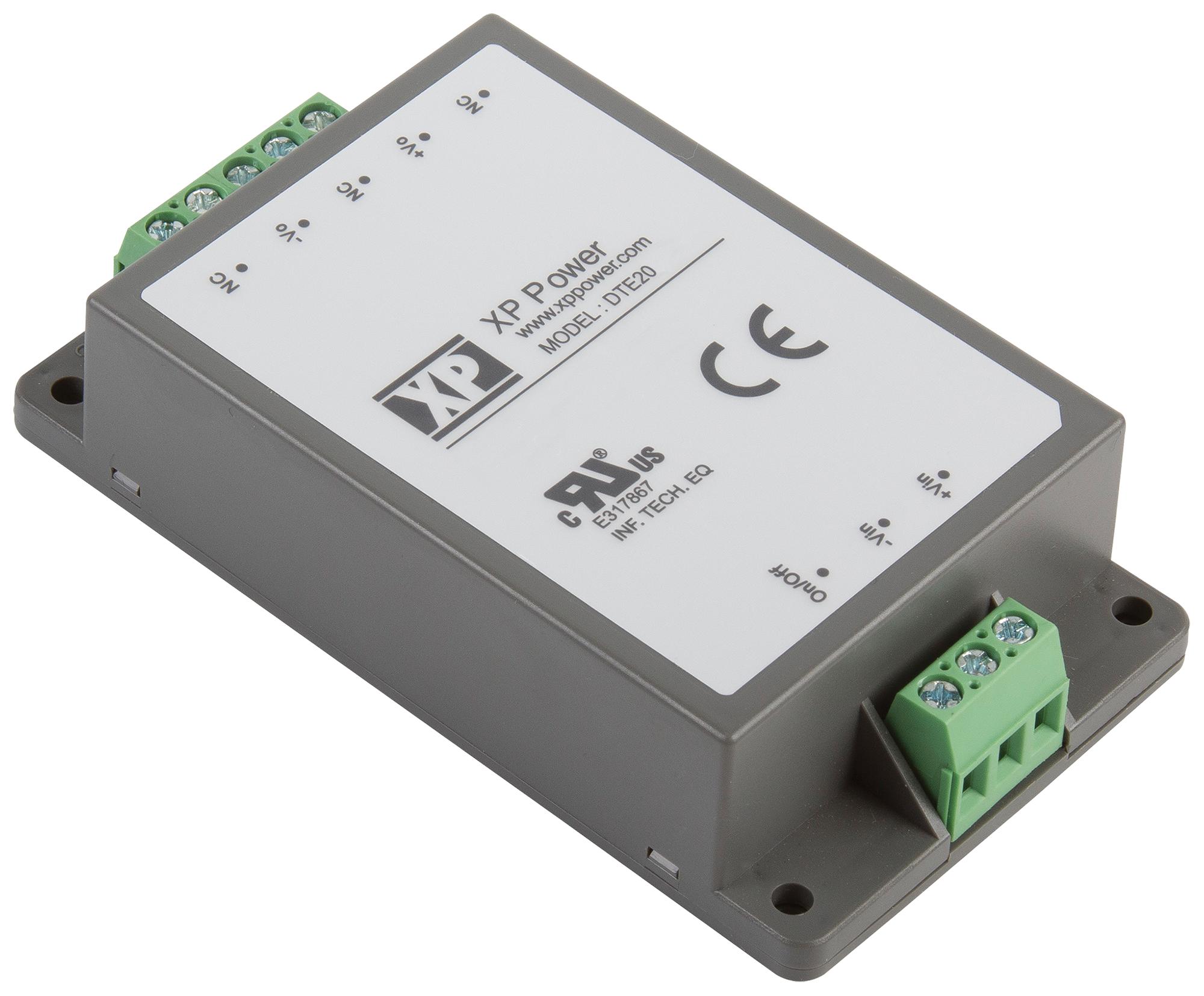

XP POWER DTE2024S24 DC-DC Converter
The DTE20 series is a 20W fully encapsulated, chassis-mounted DC-DC converter with a wide 4:1 input voltage range. It features short circuit protection with trip and restart, overload protection, and provides an isolation voltage of 2500VDC. The converter complies with IEC60950-1, UL60950-1, CB, and TUV standards. It operates comfortably within a temperature range of -40°C to 95°C, offers high efficiency up to 91%, and includes a remote On/Off function. Additionally, it meets EN55022 Conducted Level A standards without requiring external components. Suitable for power management and industrial applications.
XP POWER DTE2024S24 DC-DC Converter Specifications:
- Power: 20 Watts
- Input Voltage Range: 24VDC to 48VDC wide (4:1 ratio)
- Output Voltage: 24V or 48VDC
- Output Current: 0.835 A (24V), 0.375 A (48V)
- Efficiency: Up to 91%
- Isolation Voltage: 2500VDC
- Operating Temperature: -40°C to +95°C
- Protection: Short circuit, overload, input undervoltage
- Safety Certifications: IEC60950-1, UL60950-1, CB, TUV
- Dimensions: 3.78 x 2.13 x 0.92 inches (96.0 x 54.0 x 23.3 mm)
- Mounting Options: Chassis mount and optional DIN rail
- Remote On/Off: Yes
- Ingress Protection: Fully encapsulated chassis
- Standards: EN55022 Conducted Level A
- MTBF: 750,000 hours
- Weight: 107 g (0.214 Ibs), 166 g for -D version
- Cooling: Natural convection
- Vibration & Shock: Meets EN60068-2 standards
- Inrush Current: Limited, with Pi filter
- Leakage Current and Noise: Meets defined standards
- Humidity: 5-95% RH non-condensing
Buy the XP Power Series DTE20 DC-DC Converter: DTE2024S24
Purchase the XP Power DTE20 series DC-DC converter online today and enjoy reliable power conversion with high efficiency, wide input range, and robust protection features. Ideal for industrial and power management applications, this fully encapsulated module offers a 20W power output, excellent electrical isolation, and a compact design. Easy to mount with optional DIN rail compatibility, it includes remote On/Off control and meets all safety standards for continuous operation in demanding environments. Secure your power solutions now for optimal performance and long-term durability.
Buy XP Power DTE2024S24 now and experience unmatched reliability and performance with high efficiency and rugged industrial design.
Frequently Asked Questions
Where can I buy XP POWER DTE2024S24?
You can click on the BUY or RFQ button to purchase DTE2024S24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DTE2024S24?
You can download the DTE2024S24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DTE2024S24?
XP POWER
