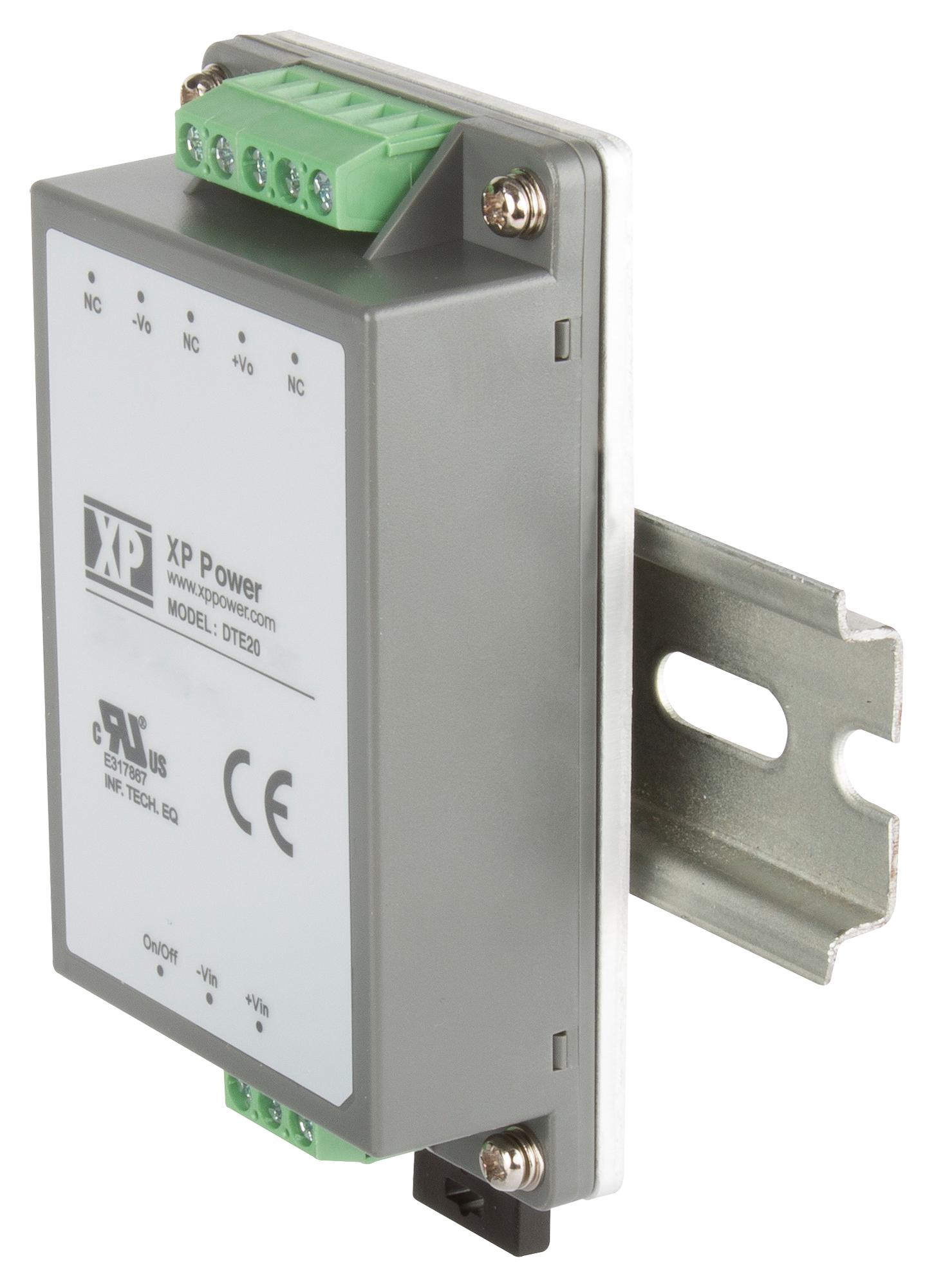

XP POWER DTE2048S5V1D DC-DC Converter
The DTE20 series DC-DC converters from XP Power are 20 watt, fully encapsulated chassis mount units designed for reliable industrial applications. They feature a wide 4:1 input range, high efficiency up to 92%, and operate from 18V to 75V inputs. Offering models with output voltages from 3.3V to 48V, these converters are suitable for rugged environments with operating temperatures from -40°C to +85°C. They include remote on/off, optional DIN rail mounting, and meet safety standards such as UL60950-1 and EN55022, ensuring dependable performance in industrial and automation settings.
XP POWER DTE2048S5V1D DC-DC Converter Specifications:
- Input Voltage Range: 18V to 75VDC
- Output Voltage Options: 3.3V, 5V, 12V, 24V, 48V
- Output Power: 20 Watts
- Efficiency: Up to 92%
- Operating Temperature: -40°C to +85°C
- Dimensions: 3.78 x 2.13 x 0.92 inches (96.0 x 54.0 x 23.3 mm)
- Isolation: 2500 VAC
- Ripple & Noise: 150 mV pk-pk (12V and 48V models)
- Concurrent Compatibility: EN55022 Level A, UL60950-1
- Protection: Short circuit, overload, overvoltage, and thermal
- Remote On/Off Control: Yes
- Mounting: Fully encapsulated chassis, optional DIN rail
- Certifications: UL Listed, EN55022 Conducted Level A
Buy the XP Power DTE20 – Reliable DC-DC Converter for Industrial Applications
Purchase the DTE20 series DC-DC converter from XP Power today to ensure reliable, high-performance power conversion for your industrial, automation, or control applications. These robust units feature a wide input range from 18V to 75VDC, high efficiency up to 92%, and operate over a temperature span of -40°C to +85°C. With optional DIN rail mounting, remote on/off, and comprehensive safety certification, they are designed for demanding environments requiring stable, efficient power supplies. Buy online for fast delivery and trusted quality assurance.
Get XP Power DTE20 today—built for precision, durability, and versatile industrial power conversion needs.
Frequently Asked Questions
Where can I buy XP POWER DTE2048S5V1D?
You can click on the BUY or RFQ button to purchase DTE2048S5V1D from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DTE2048S5V1D?
You can download the DTE2048S5V1D datasheet or visit the XP POWER website for support.
Who is the manufacturer of DTE2048S5V1D?
XP POWER
