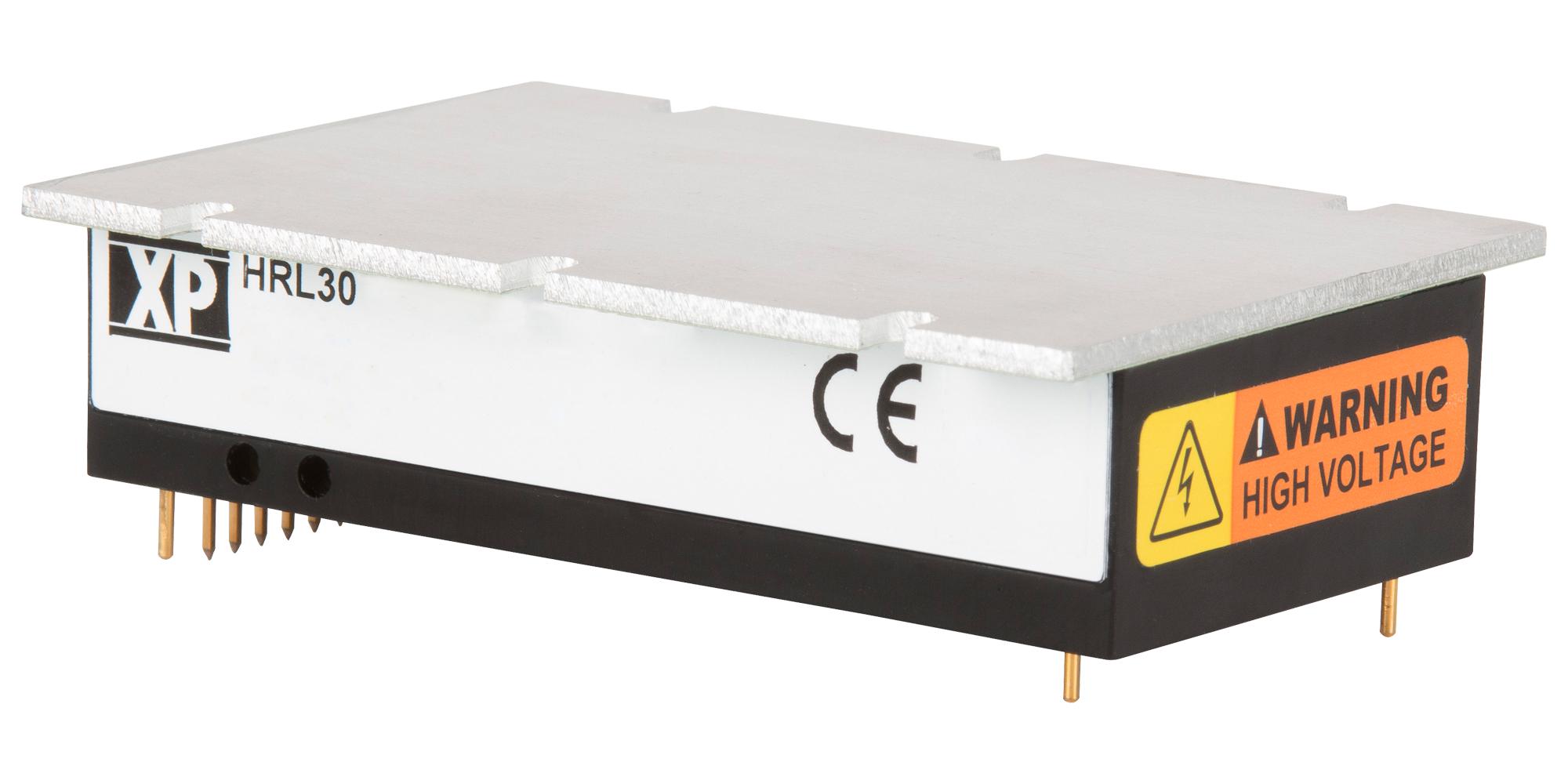

XP POWER HRL3024S1K5P Datasheet & Stock

The HRL30 series is a miniature 30W regulated high voltage DC-DC converter product line providing voltages up to 6kV. HRL30 offers both voltage and current mode controls and monitors. This product deploys a proprietary design which delivers accurate high voltage at higher efficiency with low EMI. This product has constant voltage and constant current operation with automatic crossover to current limiting mode preventing the delivered current from exceeding the programmed current level. It has digital compatible voltage and current monitors and controls to make it a convenient product for a wide range of high voltage applications.




0 to 100% programmable output & current

Output voltage and current regulated

Operating temperature range from -40°C to +70°C

Short circuit, arc and overload protections

On-board +5V reference

Premier thermal performance

UL 60950 and 62368 approved

3 year warranty
