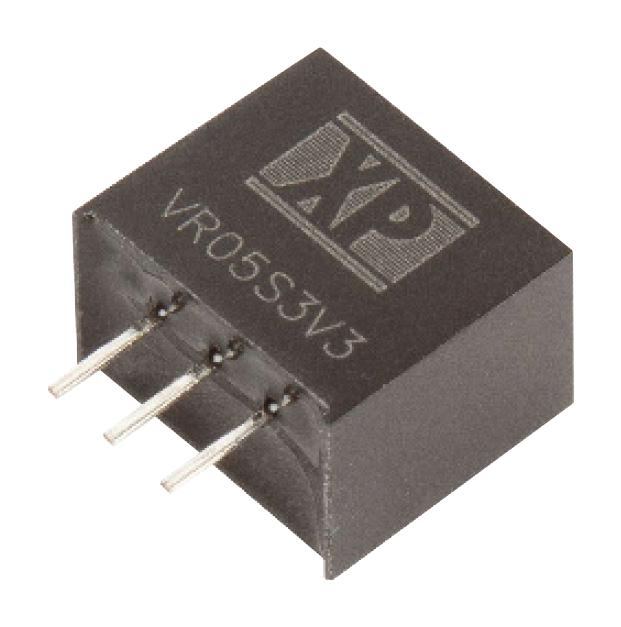

XP POWER VR05S3V3 DC-DC Converter
The VROS5 Series is a compact, high-efficiency, non-isolated DC-DC switching regulator offering 0.5A output current across an input voltage range of 4.75V to 36V. Models provide output voltages from 3.3V to 15V, with efficiencies up to 95% and a wide temperature operation from -40°C to +85°C. Features include short circuit protection, low standby current, and low emissions compliance, making it ideal for industrial, automation, and control applications needing reliable power conversion in a small form factor.
XP POWER VR05S3V3 DC-DC Converter Specifications:
- Input Voltage Range: 4.75V to 36V
- Output Voltage Range: 3.3V to 15V
- Output Current: 0.5A
- Efficiency: up to 95%
- Operating Temperature: -40°C to +85°C
- Switching Frequency: 550 to 850 kHz
- Dimensions: 0.457 x 0.401 x 0.297 inches (11.6 x 10.16 x 7.55 mm)
- Case Material: Non-conductive black plastic UL94V-0
- Input Reflection Ripple: 20 mA pk-pk
- Short Circuit Protection: Continuous auto-recovery
- Weight: 0.0039 lbs (1.89 grams)
Buy the XP Power Series VROS5 DC-DC Converter: VR05S3V3
Purchase the XP Power VROS5 Series DC-DC Converter today to benefit from highly efficient power conversion ranging from 3.3V to 15V loads. This non-isolated switching regulator delivers 0.5A output current with efficiencies up to 95%, ensuring minimal energy loss. Its wide input voltage range of 4.75V to 36V makes it adaptable to various power supply systems. Small in size, measuring only 0.457 x 0.401 x 0.297 inches, it’s suitable for compact applications. Enjoy long-term reliability, robust short circuit protection, and compliance with emissions standards for industrial environments.
Order your XP Power Series VROS5 DC-DC Converter today and ensure reliable, high-efficiency power regulation for your industrial projects.
Frequently Asked Questions
Where can I buy XP POWER VR05S3V3?
You can click on the BUY or RFQ button to purchase VR05S3V3 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VR05S3V3?
You can download the VR05S3V3 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VR05S3V3?
XP POWER
