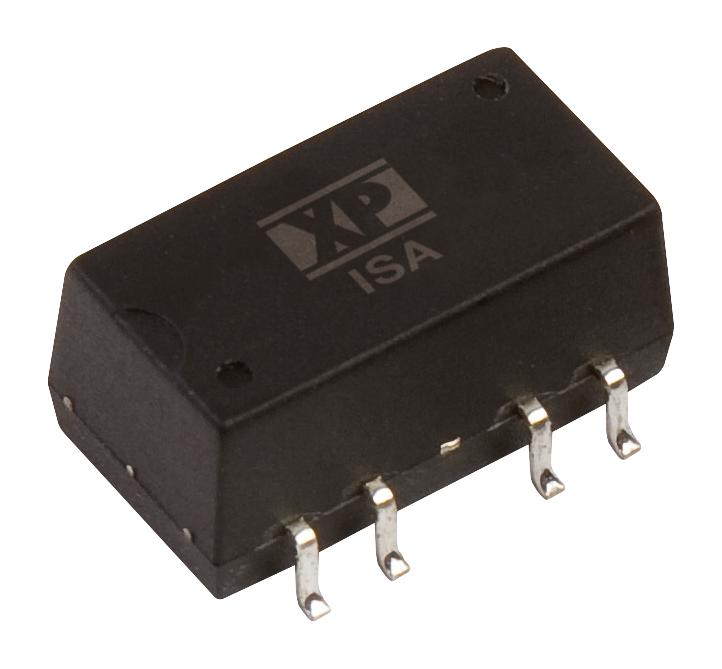

XP POWER ISA1205 Dual Output Power Converter
The ISA series is a compact, dual output 1W surface mount isolated DC/DC converter designed for industrial and automation applications. It supports input voltages of 3.3V, 5V, 12V, 15V, and 24V, with dual outputs and industry-standard pinout for easy integration. The converter operates reliably from -40°C to 105°C and offers 1500V DC isolation, with options for 3000VDC. Its small SMD package with precise dimensions (0.600 x 0.440 x 0.285 inches) ensures space-efficient design, making it ideal for industrial control, measurement, and power systems requiring high reliability and stable performance.
XP POWER ISA1205 Dual Output Power Converter Specifications:
- Input Voltage Range: 2.97-3.63V, 4.5-5.5V, 10.8-132V, 21.6-26.4V
- Output Voltage: 3.3V, 5V, 12V, 15V, 24V
- Output Current: Up to 132V input supports various output currents at full load
- Isolation Voltage: 1500VDC, optional 3000VDC with suffix -H
- Operating Temperature: -40°C to +105°C, derates above 100°C to 80% load
- Dimensions: 0.600 x 0.440 x 0.285 inches (15.24 x 11.20 x 7.25 mm)
- Efficiency: Typically around 70-80% depending on model
- Switching Frequency: 50 to 300 kHz
- RoHS Compliant: Yes
- Humidity: Up to 95% RH non-condensing
- Case Material: SMD epoxy encapsulation
- Weight: Approx. 1.8 grams
- Isolation Resistance: 10^12 ohms at 500VDC
- Isolation Capacitance: 20 pF
- Input/Output: Fully isolated with industry-standard pinout
- Reliability: MTBF approximately 3500 hours according to MIL-HDBK-217F
Buy the XP Power ISA1205 – Reliable Dual Output Power Converter for Industrial Applications
Purchase the XP Power ISA1205 dual output isolated DC/DC converter online today. Its compact SMD package, wide temperature operation from -40°C to 105°C, and 1500V DC isolation make it ideal for industrial automation, control systems, and measurement equipment. With a robust design, high efficiency, and reliable performance, this converter ensures stable power delivery in demanding environments. Order now to benefit from fast shipping, excellent quality, and trusted performance for your industrial power needs.
Order your XP Power ISA1205 Series dual output isolated DC/DC converter today and enhance your industrial system's reliability with high-quality power solutions.
Frequently Asked Questions
Where can I buy XP POWER ISA1205?
You can click on the BUY or RFQ button to purchase ISA1205 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ISA1205?
You can download the ISA1205 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ISA1205?
XP POWER
