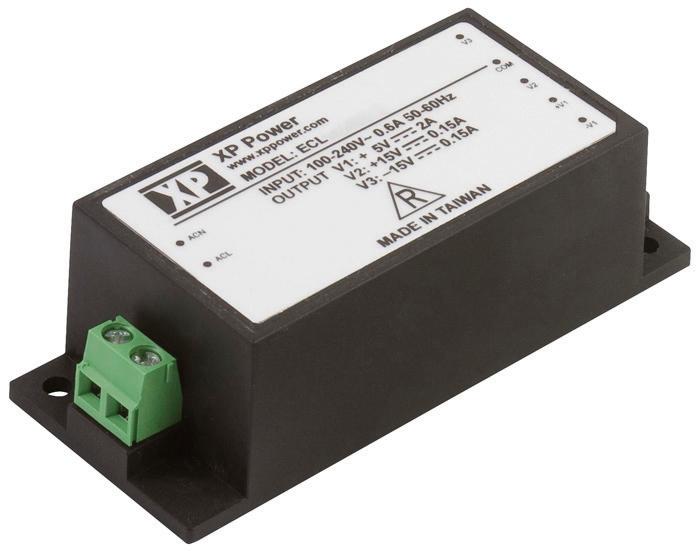

XP POWER ECL25US12S Power Supply Module
The ECL25 series are compact, high-efficiency power supplies suitable for industrial automation, control systems, and OEM applications. They feature single and multiple output options with encapsulated, PCB, or chassis mount configurations, and support voltages from 5VDC to 48VDC. These models offer high security with 3000 VAC isolation, protection against overvoltage, overload, and short circuits, and are designed to operate efficiently within a temperature range of -20°C to +70°C. Certified for safety standards, they include a 3-year warranty and are ideal for reliable power delivery in demanding environments.
XP POWER ECL25US12S Power Supply Module Specifications:
- Input Voltage: 85-264 VAC, 120-370 VDC
- Frequency: 47-63 Hz
- Output Power: 15W to 30W
- Output Voltage: 3.3V, 5V, 9V, 12V, 15V, 24V, 48V
- Output Current: 0.52 A to 6.50 A depending on model
- Isolation: 3000 VAC input to output
- Efficiency: up to 82%
- Operating Temperature: -20°C to +70°C, derating from 50°C
- Humidity: 95% RH, non-condensing
- Vibration: 2g, 10 Hz to 500 Hz, 10 mins/cycle
- Conformal Coating: Optional for harsh environments
- Security: Overvoltage, overload, short circuit protection
- Certification: EN55032, EN61000-3-2, UL, IEC60950-1
- MTBF: >400,000 hours at 25°C
- Materials: Industrial-grade components, encapsulated or PCB mount
Buy the PowerSupply Co HighPower ECL25 – Reliable Power Conversion for Industrial Applications
Secure your automation and control projects with PowerSupply Co ECL25 power modules. Designed for high efficiency, safety, and durability, these compact power supplies offer multiple output options with encapsulated, PCB, and chassis mount configurations. Certified to international safety standards, they provide overvoltage, overload, and short circuit protections. Ideal for industrial, manufacturing, and OEM applications, they guarantee stable power delivery from -20°C to +70°C operational temperatures. Order online today for fast delivery and proven reliability in demanding environments.
Buy PowerSupply Co ECL25 series power supplies now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy XP POWER ECL25US12S?
You can click on the BUY or RFQ button to purchase ECL25US12S from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ECL25US12S?
You can download the ECL25US12S datasheet or visit the XP POWER website for support.
Who is the manufacturer of ECL25US12S?
XP POWER
