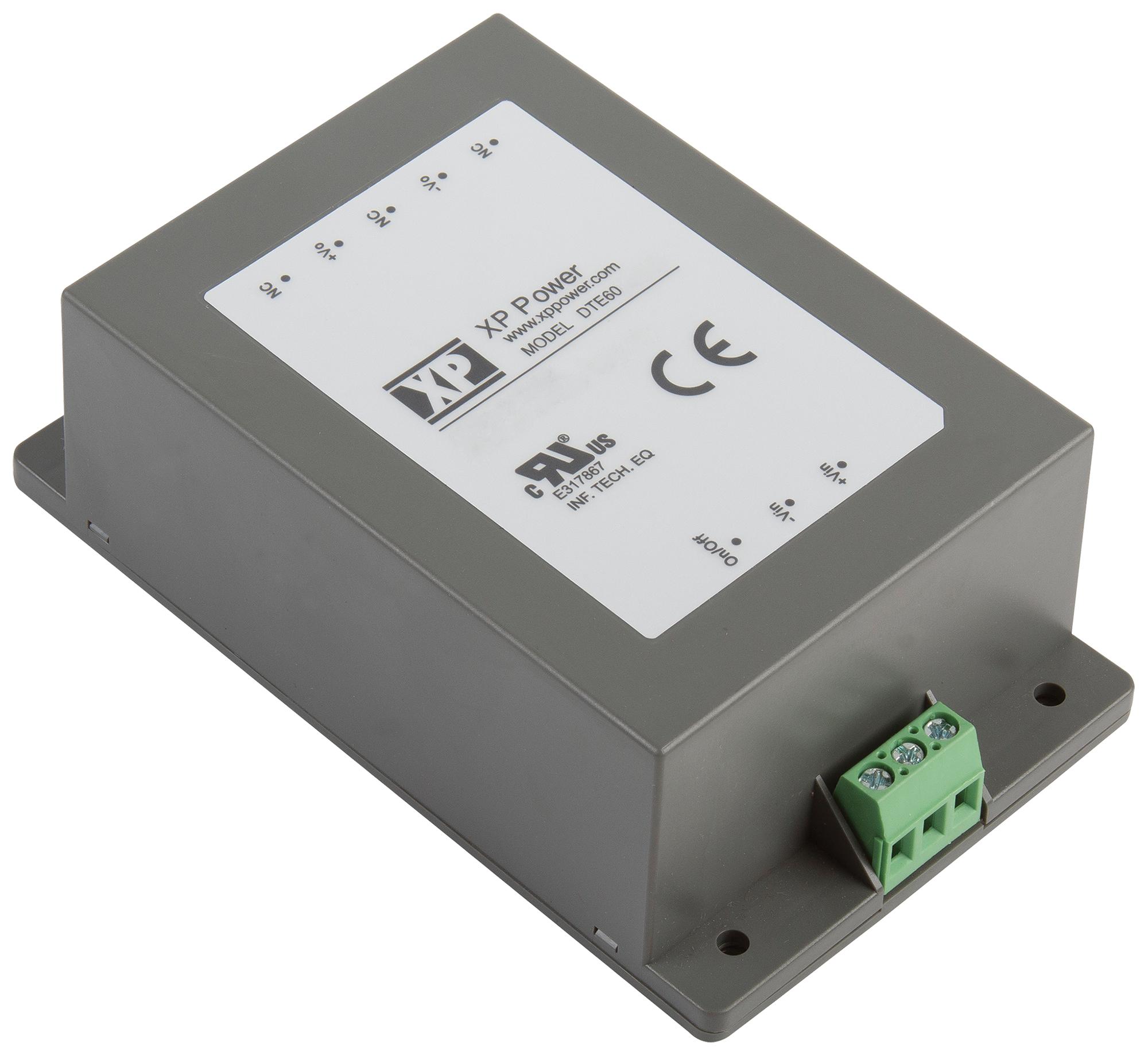

XP POWER DTE6024S5V1 Industrial Power Converter
The DTE60 series is a 60W fully encapsulated, chassis-mount DC to DC converter featuring a wide 4:1 input voltage range. It provides reliable operation with short circuit protection (trip and restart) and overload protection. The converter offers an isolation voltage of 2500VDC and complies with IEC60950-1, UL60950-1, CB, and TUV standards. Designed for robust industrial applications, it operates smoothly from -40°C to 95°C, boasts high efficiency up to 92%, and includes a remote On/Off function. Additionally, it meets EN55022 Conducted Level A requirements without external components.
XP POWER DTE6024S5V1 Industrial Power Converter Specifications:
- Power: 60 Watts
- Input Voltage Range: 24VDC to 48VDC, wide 4:1 input
- Output Voltage: Varies (e.g., 5V, 12V, 24V, 48V)
- Output Current: Up to 75A depending on model
- Isolation Voltage: 2500VDC input/output
- Operating Temperature: -40°C to +95°C
- Efficiency: Up to 92%
- Protection: Short circuit, overload, input undervoltage
- Remote On/Off: Yes
- Safety Approvals: IEC/UL/cUL62368-1, EN55032 class A
- Dimensions: 4.1 x 2.67 x 1.5 inches (112 x 67.8 x 38 mm)
- Weight: Approximately 0.6 lbs (300 g)
- Cooling: Natural convection
- Shock and Vibration Resistance: Meets EN60068 standards
- MTBF: 750,000 hours (MIL-DHBK-217F, +25°C)
Buy the XP Power DTE6024S5V1 – Reliable Industrial DC-DC Converter for Power Supply Applications
Order the XP Power DTE6024S5V1 online today and ensure your industrial applications benefit from a high-quality, efficient, and safe power conversion solution. This 60W encapsulated DC-DC converter offers a wide input voltage range, high efficiency up to 92%, and full safety and EMC compliance. Its rugged design supports operation from -40°C to +95°C, with remote On/Off capability and comprehensive protection against short circuits and overloads. Perfect for automation, manufacturing, and industrial control systems, it guarantees reliable performance in demanding environments.
Buy XP Power DTE6024S5V1 now and experience unmatched reliability, high efficiency, and robust safety features suitable for industrial power systems.
Frequently Asked Questions
Where can I buy XP POWER DTE6024S5V1?
You can click on the BUY or RFQ button to purchase DTE6024S5V1 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DTE6024S5V1?
You can download the DTE6024S5V1 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DTE6024S5V1?
XP POWER
