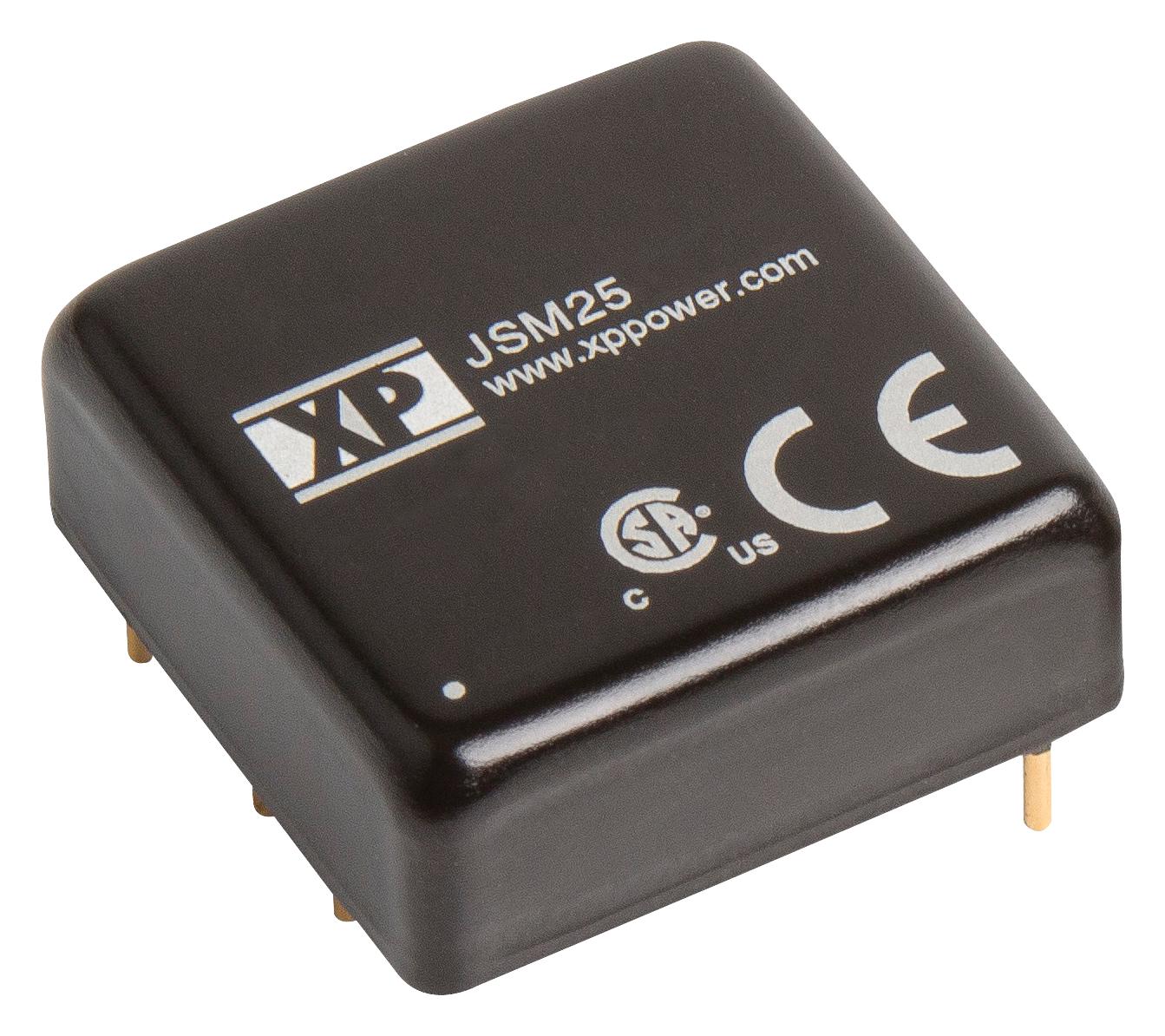

XP POWER JSM2524S3V3 DC-DC Converter
The JSM25 series features a 25-watt power output with a 2:1 input voltage range, accommodating nominal inputs of 12VDC (9V to 18V), 24VDC (18V to 36V), and 48VDC (36V to 75V). These modules are housed in a compact 1 x 1 x 0.4 inch (25.4 x 25.4 x 10.16 mm) six-sided metal case with pins suitable for PCB mounting. They provide regulated single or dual outputs, with 1500VDC isolation and operation over a temperature range of -40°C to 105°C. The series meets ITE safety standards, offers remote on/off control, and delivers high power density suitable for power management and DC/DC conversion applications.
XP POWER JSM2524S3V3 DC-DC Converter Specifications:
- Power Output: 25 Watts
- Input Voltage Range: 9V-18V, 18V-36V, 36V-75V
- Output Voltage: 12V, 24V, 48V (nominal)
- Output Power: Up to 25W
- Input-Output Isolation: 1500VDC
- Operating Temperature: -40°C to +105°C
- Package Dimensions: 1 x 1 x 0.4 inches (25.4 x 25.4 x 10.16 mm)
- Housing: Six-sided metal case
- Remote On/Off: Yes
- High Power Density: Yes
- Safety Standards: Meets ITE safety approvals
- Efficiency: Up to 89%
- Switching Frequency: 285 kHz
- Isolation Resistance: 10^9 Ω
- Weight: Approximately 16.59 grams
- Thermal Management: Natural convection, optional heatsink available
- Certifications: UL, CE
Buy the Buy XP Power JSM25 Series Part Number JSM2524S3V3 Online
Enhance your power management systems with the XP Power JSM25 series DC-DC converter. This 25-watt regulated module features a 2:1 input range, high isolation of 1500VDC, and operates efficiently across a wide temperature range. Its compact six-sided metal case ensures durability and easy integration into various electronic systems. Ideal for industrial, medical, and communication applications, the JSM25 provides reliable performance, remote on/off control, and complies with safety standards, making it a dependable choice for your power needs.
Order your XP Power JSM25 Series JSM2524S3V3 today and ensure reliable power conversion with high efficiency and compact design.
Frequently Asked Questions
Where can I buy XP POWER JSM2524S3V3?
You can click on the BUY or RFQ button to purchase JSM2524S3V3 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JSM2524S3V3?
You can download the JSM2524S3V3 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JSM2524S3V3?
XP POWER
