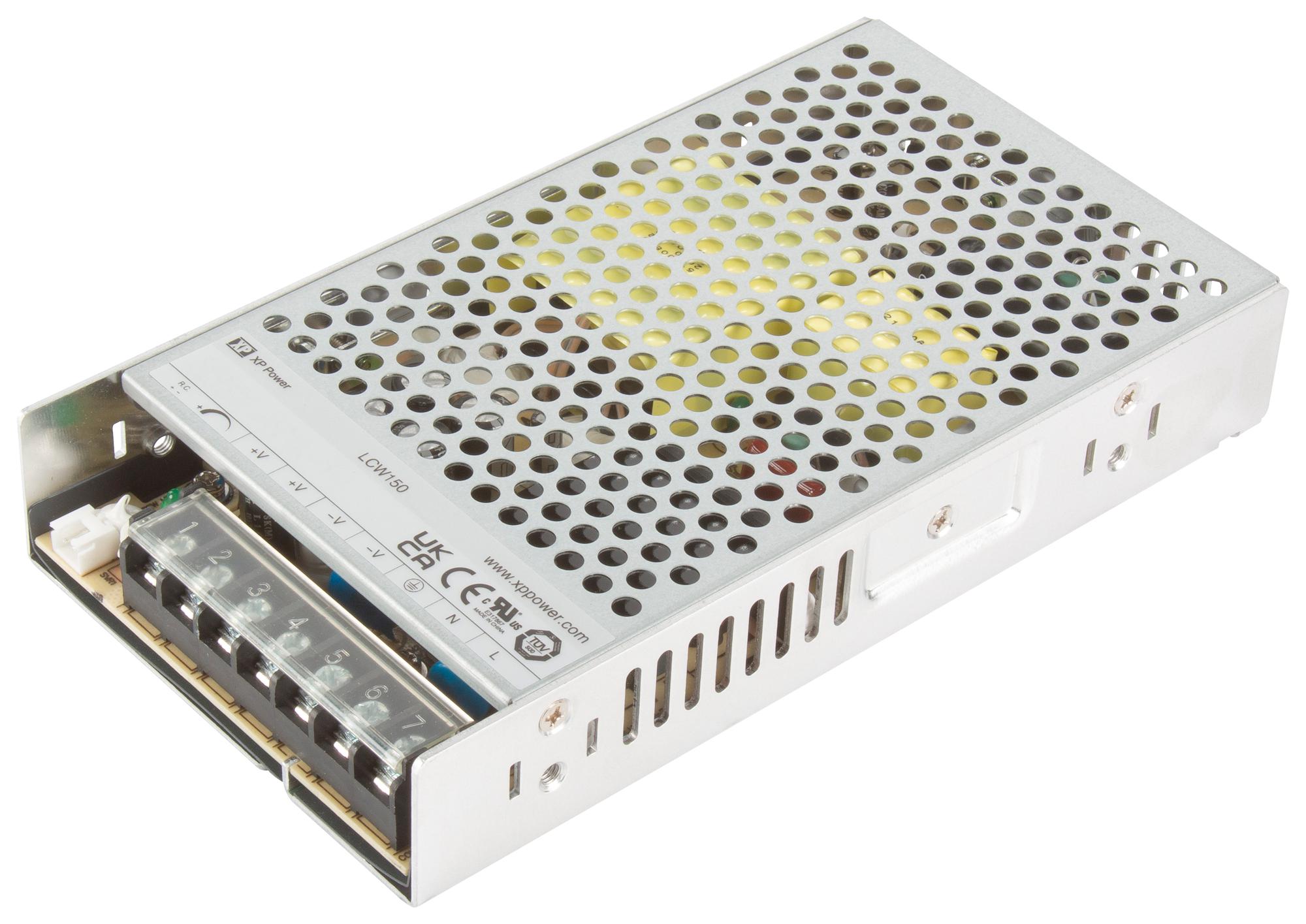

XP POWER LCW150PS24 AC-DC Power Supply
The LCW150 series regulated output AC to DC power supplies are convection-cooled and designed for industrial, technological, and household applications. They support a wide input voltage range of 85-305VAC, feature active Power Factor Correction (PFC), and offer output voltage adjustment, remote on/off control, and switching at 65kHz. These supplies include a power 'ON' LED indicator and provide low standby power consumption. They are equipped with protections against short circuits, overcurrent, overload, and overvoltage. Certified by UL62368-1, EN62368-1, EN60335, EN61558, CE, and UKCA, they are suitable for auxiliary power, security systems, lighting control, smart home and office automation, and vending applications. The 150W convection-cooled power supply has an aluminum chassis with vented galvanized steel cover, integrated connector cover, and conformal coating options. It operates within a temperature range of -30°C to +70°C, achieves 87% efficiency, and includes a 3-year warranty. Dimensions are 7.05 inches x 3.89 inches x 1.18 inches (179mm x 99mm x 30mm).
XP POWER LCW150PS24 AC-DC Power Supply Specifications:
- Input Voltage Range: 85-305VAC
- Power: 150W
- Output Voltage: 24.0V (adjustable 21.6-26.4V)
- Output Current: 6.3A
- Ripple & Noise: 150mV
- Efficiency: 87%
- Operating Temperature: -30°C to +70°C
- Dimensions: 7.05 inches x 3.89 inches x 1.18 inches
- Protection: Short circuit, overvoltage, overload
- Certifications: UL62368-1, EN62368-1, EN60335, EN61558, CE, UKCA
- Cooling: Convection
- Material: Aluminum chassis, galvanized steel cover
- Ambient Humidity: 5-90% RH non-condensing
- Isolation: Input to Output 4000VAC
Buy the XP Power LCW150PS24 – Reliable Power Supplies for Industrial Applications
Enhance your projects with the robust and efficient AC-DC power supply from XP Power's LCW150 Series. This 150W convection-cooled unit features a wide input range of 85-305VAC, active PFC, reliable short circuit, overvoltage, and overload protections, suitable for industrial, home, and technological applications. Certified to UL and CE standards, it operates within -30°C to +70°C, ensuring durability and versatility. Easy to install with convection cooling and conformal coating options, this supply guarantees reliable power delivery and long-term performance for security systems, lighting control, and automation needs. Order today for quality and reliability.
Order your XP Power Series LCW150PS24 today and give your projects the dependable quality they deserve with high efficiency and robust protections.
