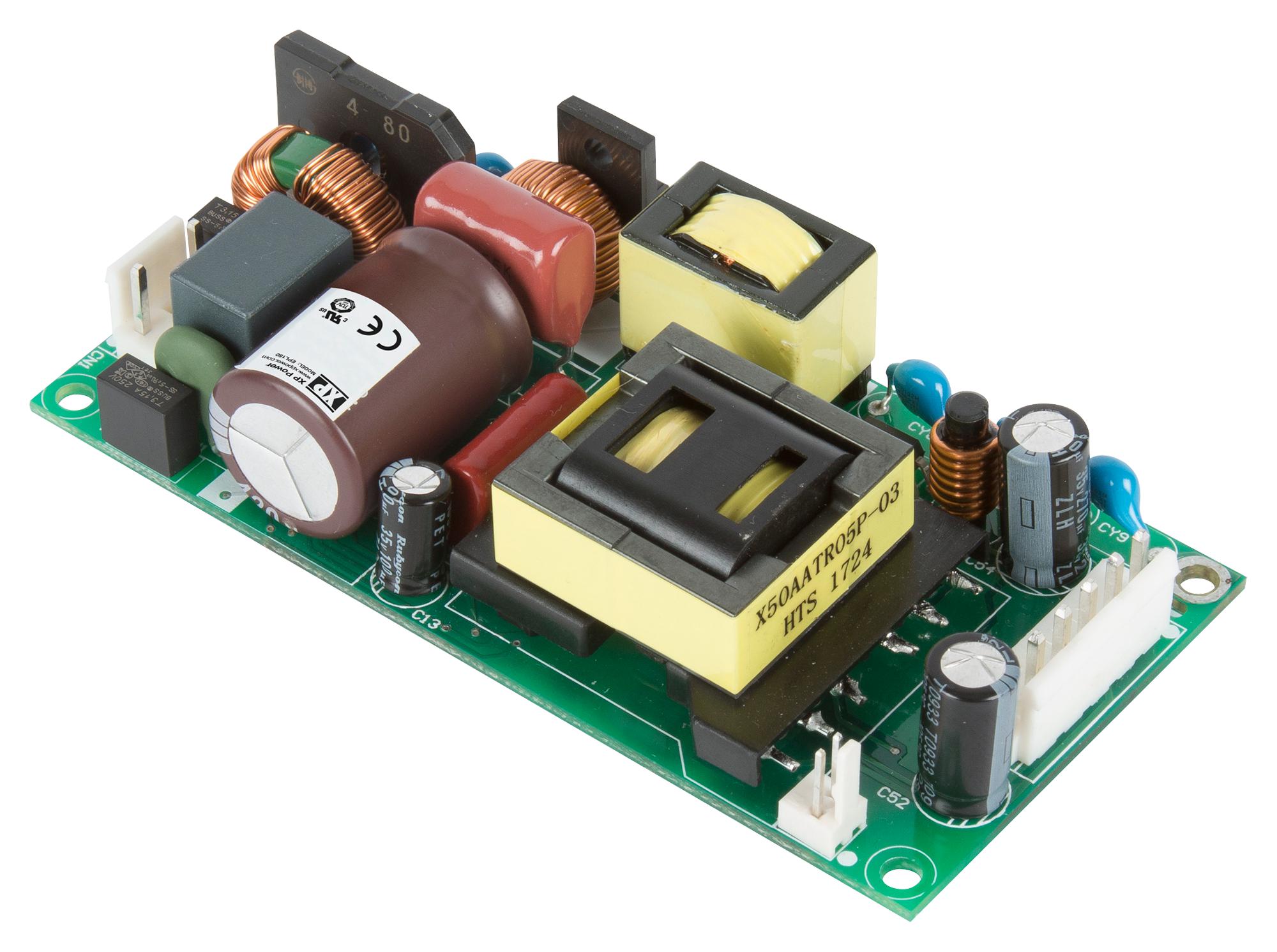

XP POWER EPL150PS15 Power Supply Unit
The EPL150 series power supply maximizes efficiency across a wide load range while minimizing no-load power consumption, reducing heat dissipation and operational costs. It is fully approved for Class I and Class II applications in ITE, industrial, and medical fields. The power supply delivers up to 100W when convection-cooled and up to 150W with forced cooling at just 10 CFM. Included is a 12V 0.5A fan output to support forced cooling. Its compact 2x4-inch footprint, low profile, low noise, and comprehensive safety approvals make it suitable for various medical, ITE, and industrial applications.
XP POWER EPL150PS15 Power Supply Unit Specifications:
- Power Output: 150 W
- Input Voltage: 100-240 VAC, 50/60 Hz
- Efficiency: Up to 98%
- Output Voltage Options: 12V, 15V, 18V, 24V, 28V, 36V, 48V
- Output Current: 8.33A to 12.5A depending on model
- Dimensions: 4.00 x 2.00 x 0.99 inches (101.6 x 50.8 x 25.1 mm)
- Cooling: Convection (up to 100W), forced cooling (up to 150W at 10 CFM)
- Protection: Overcurrent, overvoltage, short circuit, overtemperature
- Safety Approvals: UL, IEC60601-1 (Medical), CB/EN, CSA
- Operating Temperature: -20°C to +70°C
- Isolation: Input to Output 4000 VAG, Input to Ground 1500 VAC, Output to Ground 1500 VAC
- Efficiency: Up to 98% at maximum load
- Certifications: UL, CB, CE, UKCA
- Features: High power density, low no-load power (<0.5W), 3-year warranty
Buy the Buy XP Power EPL150PS15 Power Supply Part Number EPL150PS15 Online
Discover the high-efficiency XP Power EPL150PS15 power supply, designed for medical, industrial, and ITE applications. Delivering up to 150W with minimal energy waste, it features comprehensive safety approvals and a compact form factor. The device supports forced cooling at just 10 CFM and includes a 12V 0.5A fan output, ensuring reliable operation under varied loads. Its low power consumption and rugged design make it ideal for cost-effective, long-term use in demanding environments. Purchase online now and benefit from fast delivery and excellent support.
Order your XP Power Series EPL150PS15 power supply today and ensure reliable, efficient power conversion for your medical and industrial equipment.
Frequently Asked Questions
Where can I buy XP POWER EPL150PS15?
You can click on the BUY or RFQ button to purchase EPL150PS15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part EPL150PS15?
You can download the EPL150PS15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of EPL150PS15?
XP POWER
