XP POWER JHM2024D15 Medical Power Module
The JHM20 series of DC-DC modules offers a compact, reliable power solution suitable for medical applications, compliant with international safety standards. These modules provide regulated single and dual outputs from 5V to 30V DC, with adjustable output voltage trim of ±10%. Featuring a 2:1 input voltage range and PCB mount with a 2 x 1-inch footprint, they deliver reinforced isolation of 4kVAC and a working voltage of 250VAC. Certified for IEC60601-1, they have low patient leakage current (2.5 μA), short circuit protection, and meet emission standards without external components, ensuring medical safety and performance.
XP POWER JHM2024D15 Medical Power Module Specifications:
- Input Voltage Range: 9-36 VDC
- Output Voltage: 5-30 VDC, adjustable ±10% for single outputs
- Output Current: 1750 mA to 3500 mA depending on model
- Efficiency: up to 88%
- Isolation: Reinforced isolation of 4kVAC with 250VAC working voltage
- Dimensions: 2.00 x 1.00 x 0.40 inches (50.8 x 25.4 x 10.2 mm)
- Operating Temperature: -40°C to +80°C
- Leakage Current: 2.5 μA
- Short Circuit Protection: Yes
- Input Surge Voltage: Up to 100 VAC for 3 seconds
- Mechanical Materials: Solder coated copper pins, UL94V-0 potting
- Certification: IEC60601-1, EN55011 Class A
- Cooling: Natural convection
- Humidity: 5-95% RH non-condensing

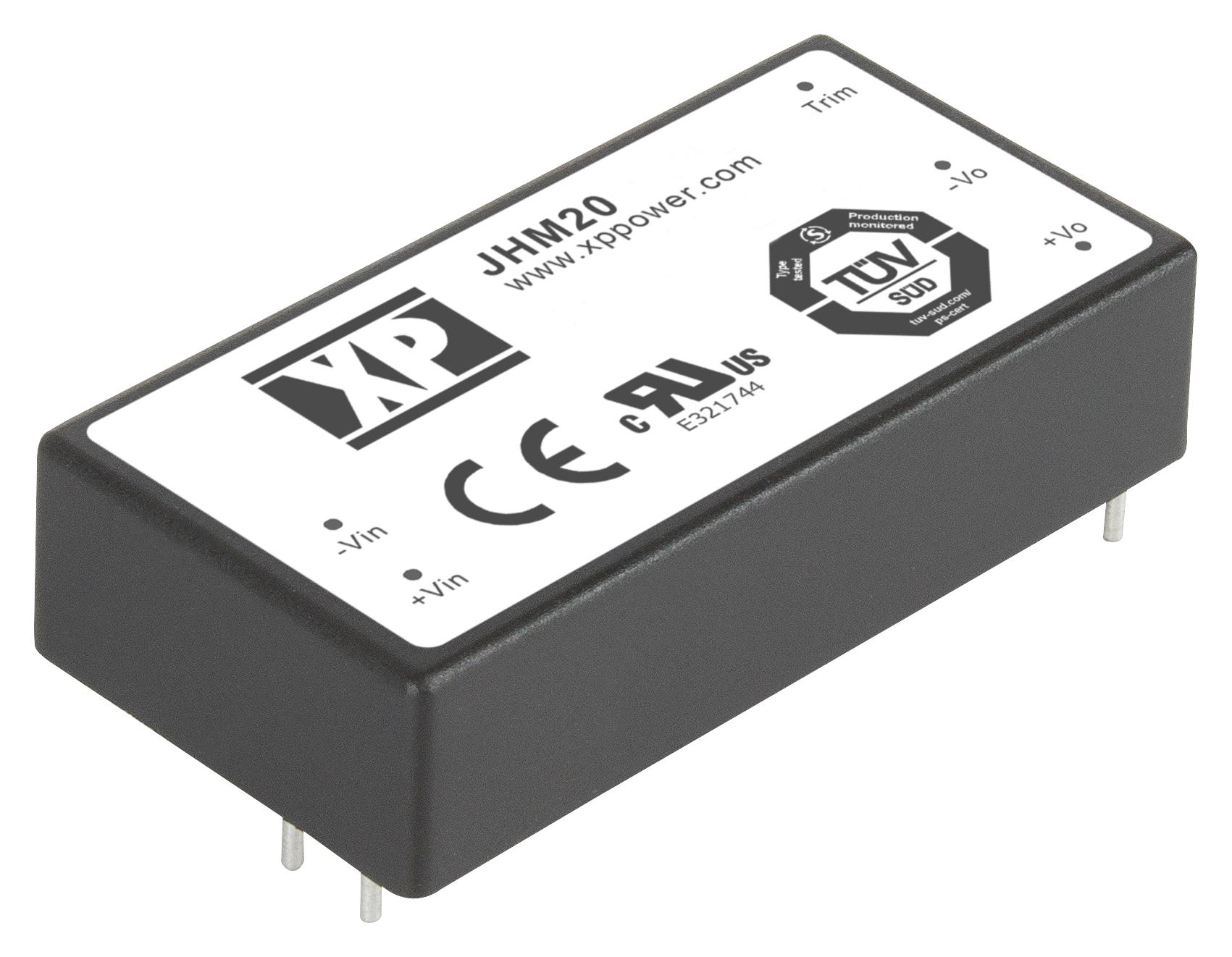

Buy the Buy XP Power JHM20 Series DC-DC Converter Part Number JHM2024D15 Online
Acquire the XP Power JHM20 series medical DC-DC converter online today to ensure safe, reliable power delivery for medical devices. These compact modules feature adjustable outputs, reinforced isolation of 4kVAC, and low patient leakage current. Certified under IEC60601-1, they meet international medical safety standards without external components, offering a high efficiency of up to 88%. With a 2 x 1-inch footprint, they are ideal for space-constrained medical equipment, providing robust short circuit and overload protections, all backed by a 3-year warranty for peace of mind.
Buy XP Power JHM2024D15 now and experience unmatched reliability and performance in medical power solutions with reinforced isolation and low leakage current.
Frequently Asked Questions
Where can I buy XP POWER JHM2024D15?
You can click on the BUY or RFQ button to purchase JHM2024D15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JHM2024D15?
You can download the JHM2024D15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JHM2024D15?
XP POWER
