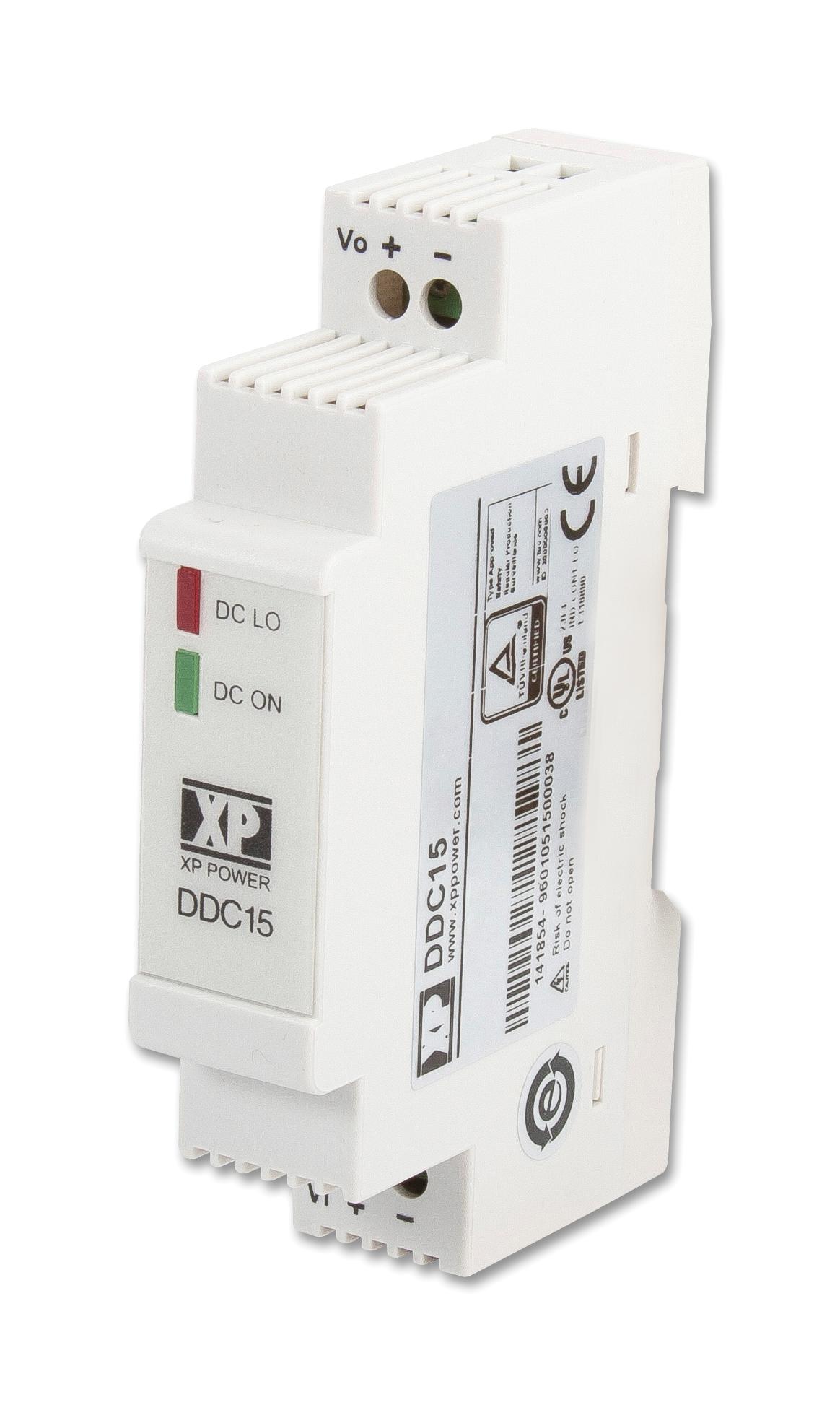

XP POWER DDC1524S15 DC/DC Converter
The DDC series delivers compact, DIN Rail-mounted DC/DC converters providing 15 Watts power with wide input range 9-36 VDC, delivering output voltages between 5V and 24V. These units are designed for industrial control, automation, and battery-powered systems, offering high efficiency up to 85%, 1500 VDC isolation, and low noise. The series supports ambient temperatures from -40°C to +70°C, features short circuit and overload protection, and compliance with safety and EMC standards for reliable operation in demanding environments.
XP POWER DDC1524S15 DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC
- Output Voltage: 5V to 24V
- Output Power: 15 Watts
- Output Current: up to 1.5A depending on model
- Efficiency: Up to 85%
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to +70°C
- Dimensions: 1.77 x 3.58 x 0.71 inches (45.0 x 91.0 x 18.0 mm)
- Weight: 0.143 lbs (65 g)
- Switching Frequency: 150-300 kHz
- Protection: Short circuit, Overload, Overvoltage
- Compliance: UL, EN55032 Class B, EN61000-4-2/3/4/5/6/8
- Cooling: Natural convection
- Vibration: 10-500 Hz at 2 g
Buy the Buy XP Power DDC1524S15 Part Number DDC1524S15 Online
Purchase the XP Power DDC1524S15 DC/DC Converter online for dependable 15 Watts power with wide input range, high efficiency, and robust safety features. This compact, DIN Rail-mounted module is ideal for industrial automation, control systems, and battery-backed applications. Its design supports ambient temperatures from -40°C to +70°C, offering excellent noise immunity, isolation, and protection against short circuits, overloads, and overvoltage conditions. Enjoy fast, secure online ordering and enhance your project’s reliability today.
Buy XP Power DDC1524S15 now and experience unmatched reliability and performance in industrial control systems and automation projects.
Frequently Asked Questions
Where can I buy XP POWER DDC1524S15?
You can click on the BUY or RFQ button to purchase DDC1524S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DDC1524S15?
You can download the DDC1524S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DDC1524S15?
XP POWER
