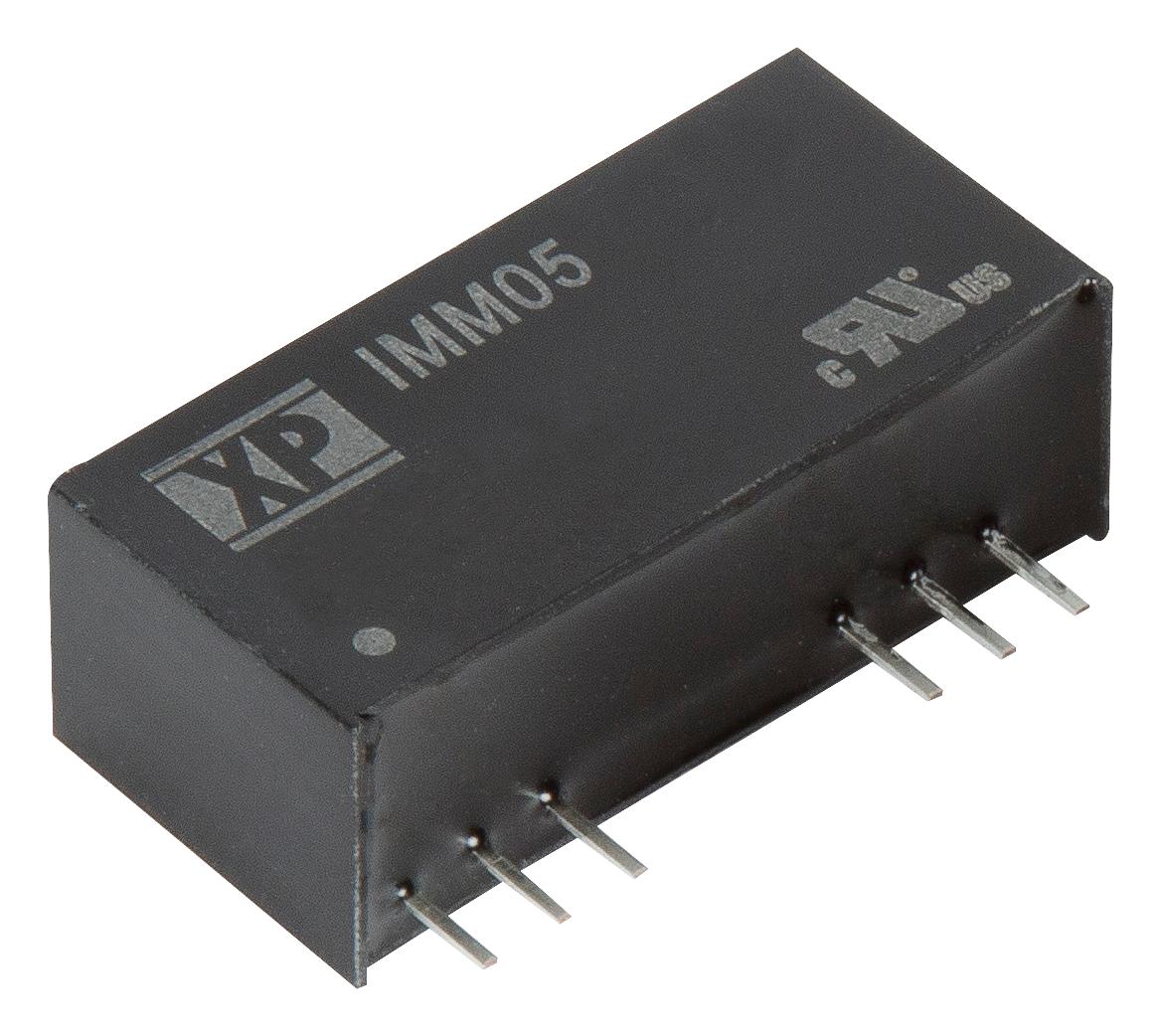

XP POWER IMM0512D12 Medical DC-DC Converter
The IMM05 series of DC-DC converters provides an ultra-compact 5W power solution with galvanic isolation, designed for medical applications requiring BF and CF classifications. These converters offer regulated single and dual outputs ranging from 3.3VDC to ±15VDC, with a 2:1 input voltage range and 1500VAC isolation. They feature a lightweight SIP9 package, remote on/off control, and operate efficiently within a temperature range of 20°C to 100°C, with full load capacity up to 60°C. Certified for worldwide medical standards, they include 1 x MOPP at 250VAC for safety compliance.
XP POWER IMM0512D12 Medical DC-DC Converter Specifications:
- Power: 5 Watts
- Input Voltage Range: 4.5-9.0V, 9-18V, 18-36V, 33V, 50V, 72V, 120V, 150V, 200V
- Output Voltage: 3.3V, 5V, 12V, 15V, 24V, 36V, 48V, 50V, 72V, 120V, 150V, 200V
- Output Current: Up to 7A depending on model
- Isolation: 1500 VAC
- Package: SIP9, lightweight, compact dimensions 1.02 x 0.36 x 0.49 inches
- Operating Temperature: -20°C to +100°C, full load up to +60°C
- Certifications: Medical safety standards including IEC/EN 60601-1, ANSI/AAMI ES60601-1, CSA
- Safety: 1 x MOPP at 250VAC
- Remote Control: On/Off function
- Efficiency: Up to 82%
- Dimensions: 26.0 x 9.3 x 12.5 mm
- Peak Current: 705 mA - 71853 mA depending on model
- Leakage Current: 2 μA
Buy the Buy XP Power IMMO5 Series DC-DC Converter Part Number IMM0512D12 Online
Purchase the XP Power IMMO5 series medical DC-DC converter online today and benefit from a reliable 5W power solution with galvanic isolation. Compact and lightweight, it offers regulated single and dual outputs from 3.3VDC to ±15VDC, with a wide input voltage range of 4.5V to 200V. Certified for worldwide medical standards, featuring 1500VAC isolation, remote on/off, and operation from -20°C to +100°C, it’s ideal for life-saving equipment and other medical applications needing high safety and efficiency.
Order your XP Power IMMO5 Series IMM0512D12 today and ensure reliable power with outstanding medical safety standards for your projects.
Frequently Asked Questions
Where can I buy XP POWER IMM0512D12?
You can click on the BUY or RFQ button to purchase IMM0512D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMM0512D12?
You can download the IMM0512D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMM0512D12?
XP POWER
