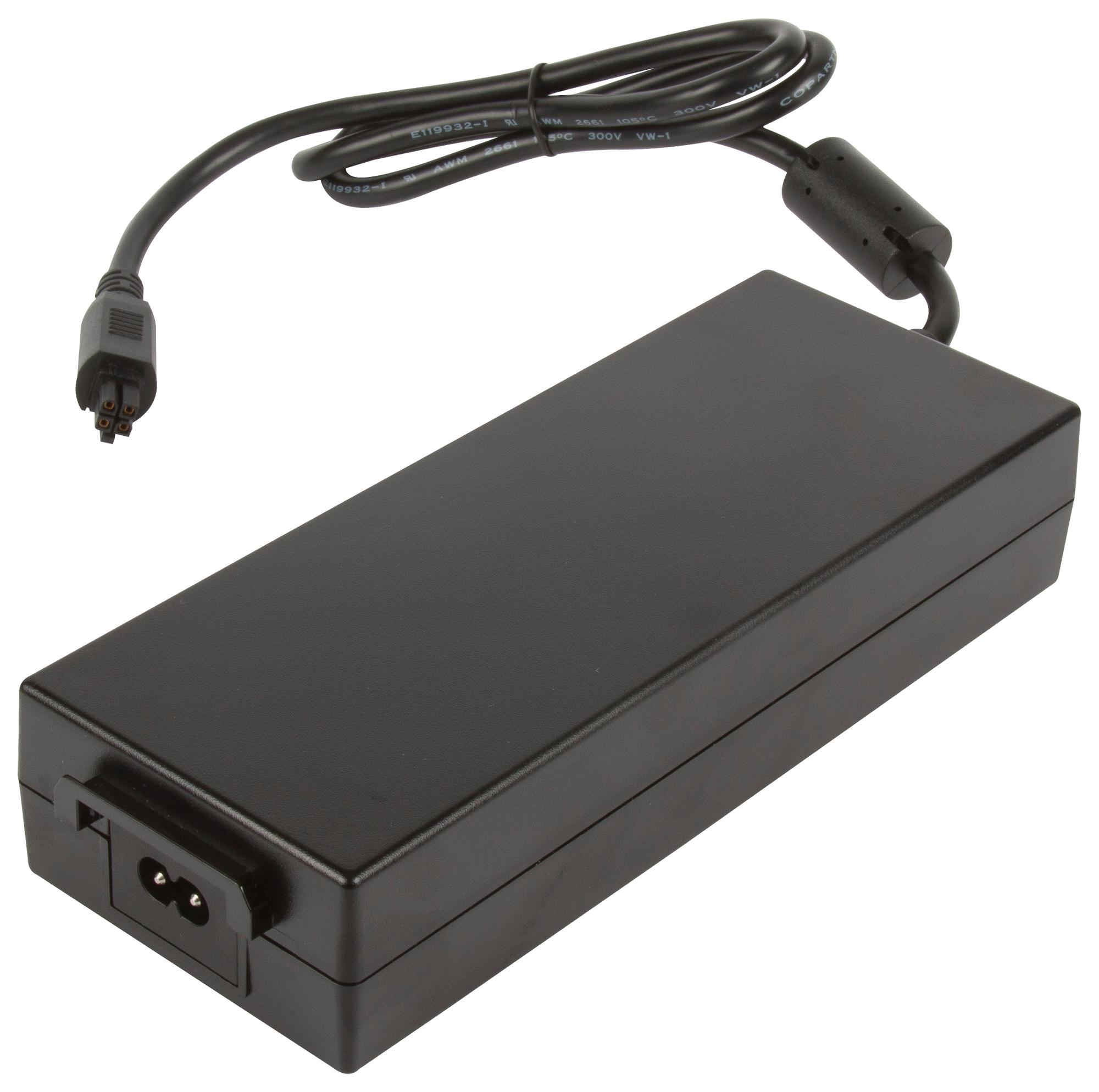

XP POWER ALM200PS24C28 Medical Power Supply
The ALM200 series of medical external power supplies is compliant with international medical and IT safety standards. Designed for high efficiency and low standby power consumption, it meets the latest environmental regulations. The unit features a fully sealed enclosure with IP32 protection and a smooth surface finish for easy cleaning in clinical environments. It has an energy efficiency level VI rating, is EU Code of Conduct Tier 2 compliant, and consumes less than 0.15W of standby power. Operating temperature range is from 0°C to 60°C. The power supply has low earth leakage current, dimensions of approximately 209mm x 82mm x 43mm, and is built with Class II construction, making it suitable for medical applications.
XP POWER ALM200PS24C28 Medical Power Supply Specifications:
- Input Voltage: 80-264 VAC, derates at 90-80 VAC for 12 & 15 V models
- Input Frequency: 63 Hz
- Input Current: 2.07 A at 115/230 VAC
- Inrush Current: 760 A at 230 VAC
- Efficiency: 92%
- Power Factor: 0.45-0.14 PF (models vary)
- Isolation: Input to Output 4000 VAC, Input to Ground 1800 VAC (Class I only), Output to Ground 500 VAC
- Earth Leakage Current: 250 mA at 264 VAC, 60 Hz
- No Load Power Consumption: <0.15 W
- Operating Temperature: 0°C to 60°C
- Dimensions: 209 mm x 82 mm x 43 mm
- Environmental Rating: IP32
- Safety Standards: Compliant with medical and IT safety standards
- Construction: Class II for added safety
- Warranty: 3 Years
Buy the XP Power ALM200 U–Reliable Medical Power Supply for Industrial Applications
Secure your project with the XP Power ALM200 series medical power supply. Designed for reliability and efficiency, it features a sealed IP32 enclosure, low standby power, and a wide operating temperature range. Perfect for healthcare, IT, and industrial applications, this power supply offers excellent isolation, sturdy construction, and compliance with global safety standards. Easy to install and maintain, it ensures safe and stable power delivery, making it ideal for critical medical equipment, industrial automation, and sensitive electronic systems. Buy online now for dependable performance and peace of mind.
Order your XP Power ALM200 series power supply today and ensure reliable, high-quality power delivery for medical and industrial projects.
Frequently Asked Questions
Where can I buy XP POWER ALM200PS24C28?
You can click on the BUY or RFQ button to purchase ALM200PS24C28 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ALM200PS24C28?
You can download the ALM200PS24C28 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ALM200PS24C28?
XP POWER
