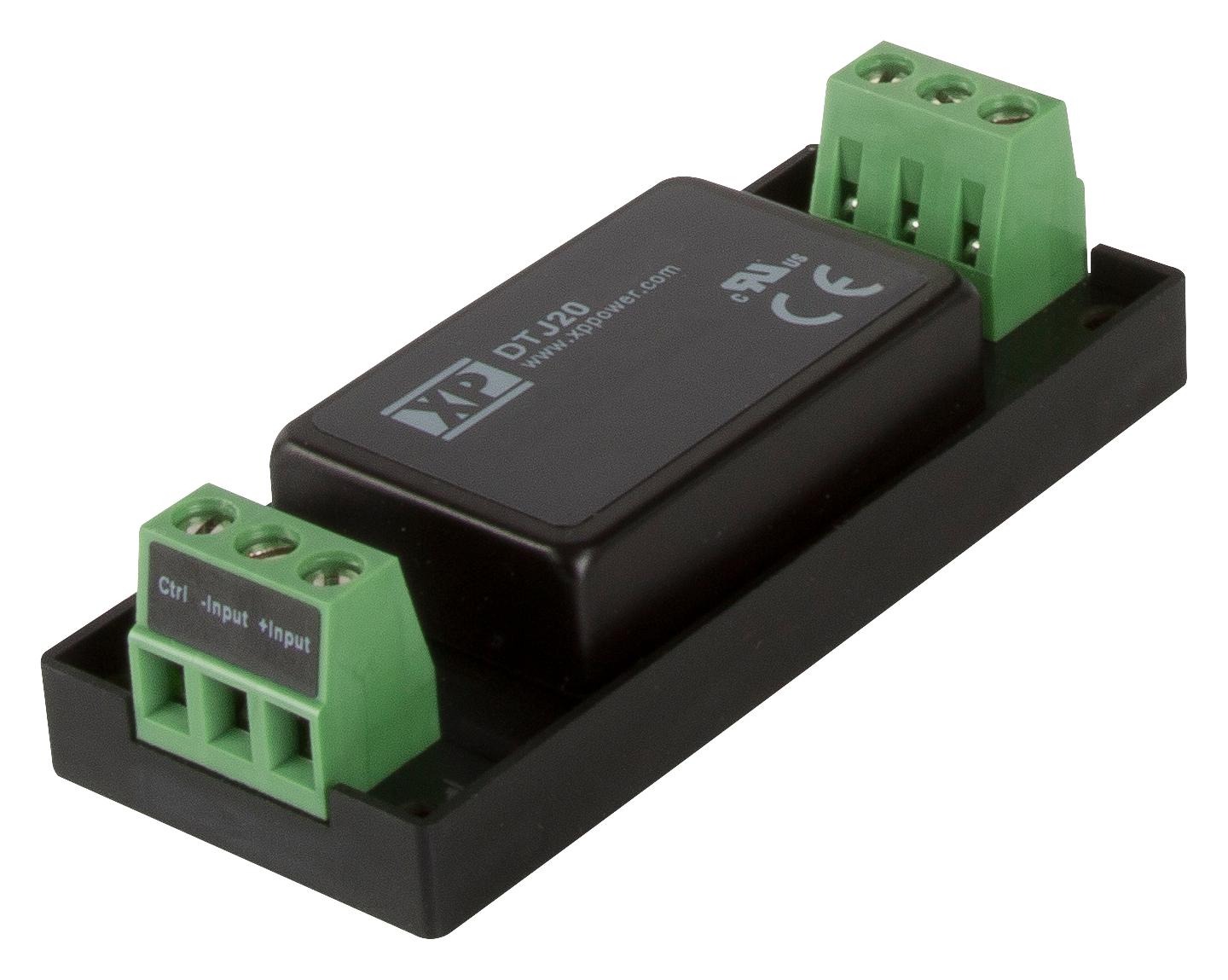

XP POWER DTJ2024S15 DC-DC Power Supply
The DTJ20 series of chassis mount DC to DC power supplies offers a compact and reliable power conversion solution suitable for industrial and commercial applications. Featuring lightweight construction, these power supplies include protections such as short circuit, input reverse polarity, and soft start. They support a wide 4:1 input voltage range and are certified with IEC/UL/cUL 62368-1 safety approvals. Additional features include remote on/off control, voltage trimming, and 3KVDC isolation. They operate over a temperature range from -40°C to +100°C, maintaining full power output up to 80°C. The compact dimensions measure 3.00 inches by 1.24 inches by 0.77 inches (76.2 mm x 31.4 mm x 19.4 mm).
XP POWER DTJ2024S15 DC-DC Power Supply Specifications:
- Input Voltage Range: 9-36 VDC evenly covering 12V, 24V, and 48V nominal inputs
- Output Voltage: 3.3V to 30VDC with adjustable trim
- Output Current: Up to 350A depending on model
- Efficiency: Up to 89%
- Isolation: 3000 VAC for 60 seconds
- Operating Temperature: -40°C to +100°C, full power to 80°C
- Dimensions: 3.00 inches x 1.24 inches x 0.77 inches (76.2mm x 31.4mm x 19.4mm)
- Protection: Short circuit, reverse polarity, soft start
- Safety Approvals: IEC/UL/cUL 62368-1
- Features: Remote on/off, voltage trim, lightweight design
- Peak Inrush Current: 35A/45A depending on model
- Switching Frequency: up to 30 MHz
- Thermal Impedance: 2°C/W with heatsink, 11°C/W without
- Humidity: Non-condensing, 5-95% RH
- Altitude: Up to 5000 meters
Buy the XP Power Series DTJ Series DC-DC Converter: DTJ2024S15
Experience dependable power conversion with the XP Power DTJ2024S15 series. Perfect for industrial and commercial applications, this compact chassis mount DC-DC converter features wide input voltage support, safety certifications, remote on/off control, voltage trimming, and 3KVDC isolation. Designed to operate effectively from -40°C to +100°C, it provides stable full power output up to 80°C. Easy to install with lightweight construction, it ensures reliable performance with protections against short circuits and reverse polarity, making it an ideal choice for demanding power management needs.
Get XP Power DTJ2024S15 today—built for precision, efficiency, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy XP POWER DTJ2024S15?
You can click on the BUY or RFQ button to purchase DTJ2024S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DTJ2024S15?
You can download the DTJ2024S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DTJ2024S15?
XP POWER
