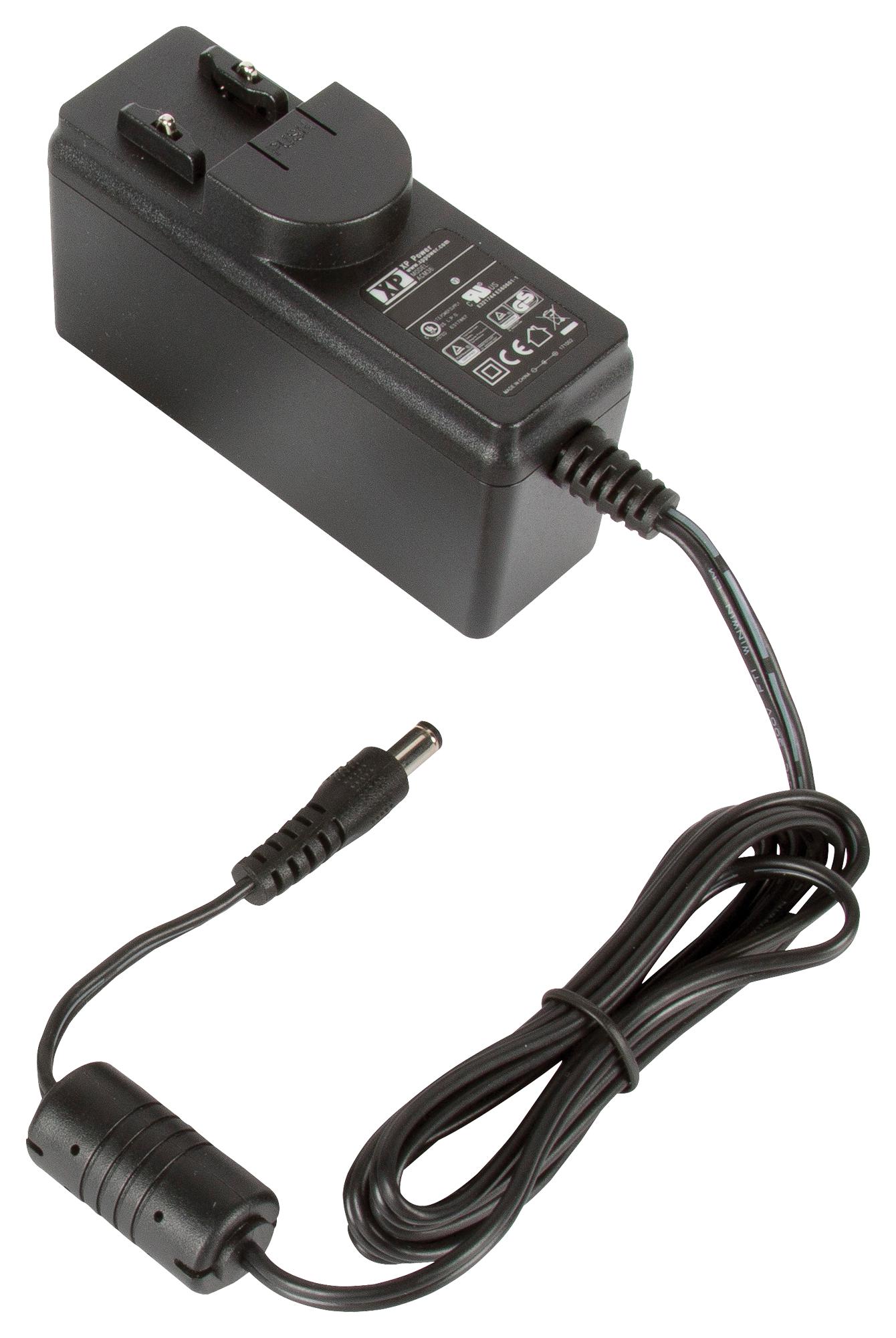

XP POWER ACM36US15 Power Supply
The ACM36US15 is a 36-watt AC-DC power supply designed for industrial and medical applications. It features energy efficiency Level VI compliance, low no-load power consumption, and selectable output voltages from 9V to 36V. The compact design measures 3.81 x 1.3 x 2.34 inches, includes interchangeable mains connectors, and offers high reliability with a 3-year warranty. Suitable for cost-sensitive environments, it ensures industry-leading performance with a typical efficiency of around 88-89%. It supports a wide operating temperature range of 0°C to +60°C and adheres to safety and EMC standards for medical and ICT equipment.
XP POWER ACM36US15 Power Supply Specifications:
- Power: 36 Watt
- Output Voltages: 9 V to 36 V (selectable)
- Output Current: 1000 mA to 4000 mA depending on voltage
- Efficiency: 88-89% at typical load
- Energy Efficiency Level: VI
- Dimensions: 3.81 x 1.3 x 2.34 inches (96.7 x 33.0 x 59.5 mm)
- Input Voltage: 100-240 VAC
- Input Frequency: 50/60 Hz
- Isolation: 4000 VAC Input to Output, 2x MOPP
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -20°C to +85°C
- Operating Humidity: 5-90% RH, non-condensing
- Certifications: UL, EN, CSA, CE, UKCA, IEC standards
- Safety: Medical approval IEC60601-1, 2 x MOPP, Low Voltage Directive
- Switching Frequency: 24-70 kHz (variable)
- Leakage Current: <50 μA at 264 VAC
- MTBF: 200,000 hours
Buy the XP Power ACM36U2013 Reliable Power Supply for Industrial Applications
Purchase the XP Power ACM36US15 online today to ensure a reliable, energy-efficient power solution for your industrial, medical, or ICT equipment. With a compact design, adjustable output voltages from 9V to 36V, and a 3-year warranty, this power supply guarantees consistent performance and safety compliance. Perfect for applications requiring high efficiency, low noise, and low no-load power consumption, it is an ideal choice for cost-effective and demanding industrial and medical setups. Order now for quick delivery and peace of mind.
Get XP Power ACM36US15 today—built for precision and long-lasting durability in demanding industrial and medical environments.
Frequently Asked Questions
Where can I buy XP POWER ACM36US15?
You can click on the BUY or RFQ button to purchase ACM36US15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ACM36US15?
You can download the ACM36US15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ACM36US15?
XP POWER
