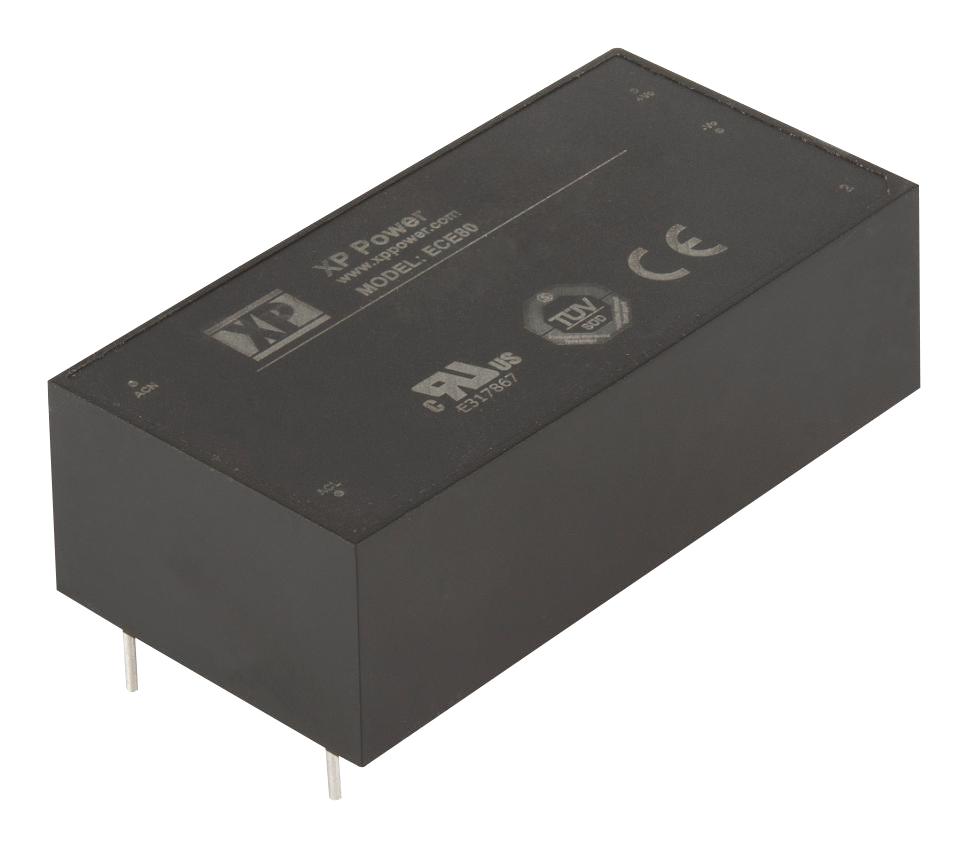

XP POWER ECE80US12 Industrial Power Supply Module
The ECE80 series includes compact, encapsulated AC-DC power modules offering 80W power output, suitable for industrial environments. These modules deliver single outputs ranging from 12V to 48V with high efficiency and low no-load power consumption. Designed for both PCB and chassis mount configurations, these power supplies withstand temperatures from -40°C to +70°C, feature peak load capabilities up to 130%, and conform to global safety and EMC standards. Ideal for automation, industrial control, and embedded applications requiring reliable and efficient power conversion.
XP POWER ECE80US12 Industrial Power Supply Module Specifications:
- Power Output: 80W
- Output Voltages: 12V, 15V, 24V, 36V, 48V
- Output Current: 6.67A, 5.33A, 3.33A, 2.2A, 1.67A respectively
- Efficiency: 86-88%
- Input Voltage Range: 85-264 VAC
- Input Frequency: 47-63 Hz
- No Load Power Consumption: <0.3 W
- Peak Load Capability: Up to 130% for 30 seconds
- Operating Temperature: -40°C to +70°C
- Dimensions: 3.60 x 1.80 x 1.10 inches and 4.45 x 1.87 x 1.12 inches
- Isolation: 3000 V AC Input to Output
- Protection: Overvoltage, Overload, Short Circuit
- Safety & EMC: EN60950-1, UL60950-1, CSA22.2 No. 234, EN55022 Class B
Buy the XP Power ECE80 – Reliable Power Supply for Industrial Applications
Discover the high-performance XP Power ECE80 series power modules, designed for demanding industrial environments. With power outputs from 12V to 48V, these compact, encapsulated supplies offer high efficiency, low no-load power consumption, and broad temperature tolerance from -40°C to +70°C. Suitable for PCB mounting and chassis applications, they feature peak load capabilities up to 130%, ensuring dependable operation under dynamic loads. Certified to safety and EMC standards, these modules are ideal for automation, machinery, and embedded systems requiring reliable power conversion.
Buy XP Power ECE80 power modules now and ensure reliable, efficient power for your industrial control and automation systems.
Frequently Asked Questions
Where can I buy XP POWER ECE80US12?
You can click on the BUY or RFQ button to purchase ECE80US12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ECE80US12?
You can download the ECE80US12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ECE80US12?
XP POWER
